200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig
200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig

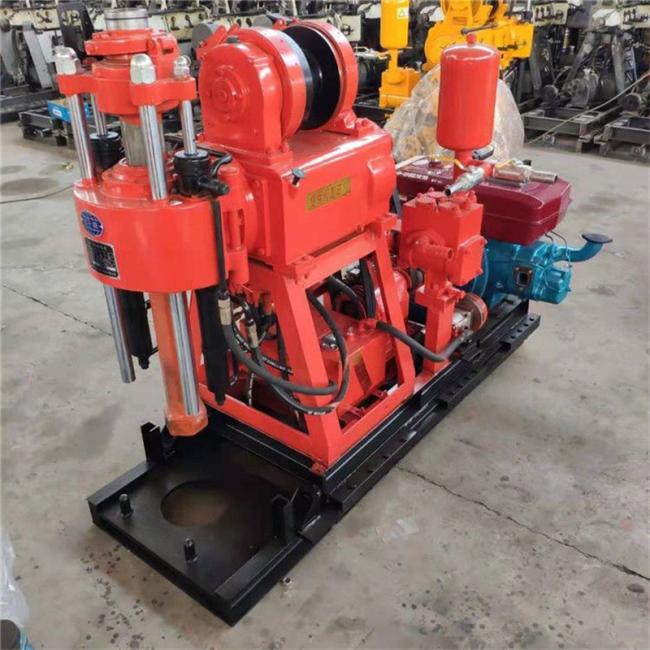

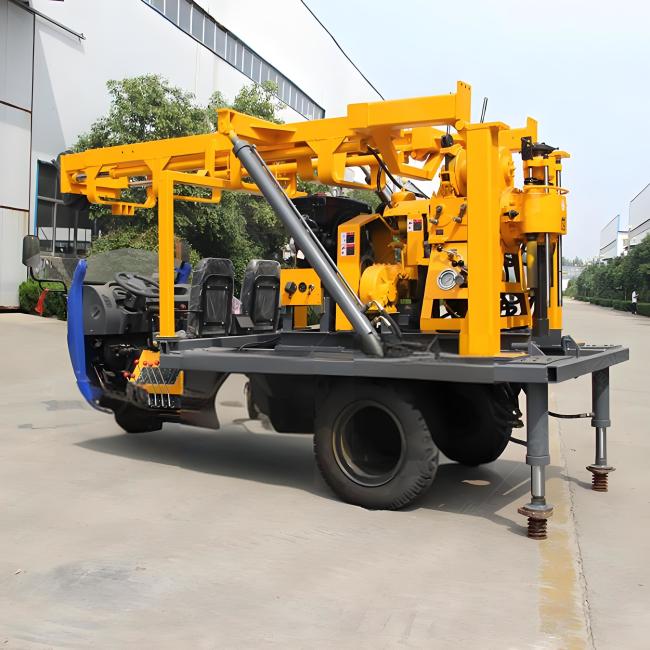

1. Application scope of HZ-200YS hydraulic core drilling rig
General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.
2. Features of HZ-200YS hydraulic core drilling rig
(1) This machine adopts taper clutch, which has large transmission torque and convenient operation;
(2)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;
(3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;
(4)The planetary gear of the hoist is increased in modulus and a support frame is installed, which greatly improves the lifting and braking capabilities of the hoist.
(5)The drilling rig is equipped with a mobile device, which can realize the front and back movement of the drilling rig itself, which is convenient for wellhead operation.
(6)Equipped with BW-160 mud pump, which has high pressure and large flow rate, ensuring the drilling depth and diameter.
3. Technical parameters of HZ-200YS hydraulic core drilling rig
| Model | HZ-200YS |
| Drilling depth | 200m |
| Hole diameter | 0-300mm |
| Final hole diameter | 75mm |
| Drill rod diameter | 50mm |
| Drilling angle | 90°～75° |
| Rig weight | 976kg |
| V-belt | B950*4 B1700*3 |
| Active movement distance | 350mm |
| Power | Diesel engine/motor 22HP/16.2KW |
| Vertical axis | |
| Vertical shaft forward speed (low speed) | 76 164 327 489 r/min |
| Vertical shaft forward speed (high speed) | 176 378 753 1125 r/min |
| Vertical shaft reverse speed | 61 142 r/min |
| Vertical shaft stroke | 450mm |
| Hoist | |
| Single rope lifting capacity | 15KN |
| Single rope lifting speed | 0.166 0.311 0.733 1.465 m/s |
| Wire rope diameter | 9.3mm |
| Wire rope capacity | 35m |
| Mud pump | |
| Model | BW160 |
| Flow | 160L/min |
| Pressure | 0-1.3Mpa |
| Hydraulic pump | |
| Specification | FC-25 Right SD |
| Dimensions | |
| Length*width*height | 2100mm*1100mm*1450mm |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
