Truck Mounted Core Drilling Machine for 200m Water Well Borehole
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Aoxing
Product Description
200m Truck Mounted Geotechnical Investigation/Water Well Borehole Core Drilling Machine

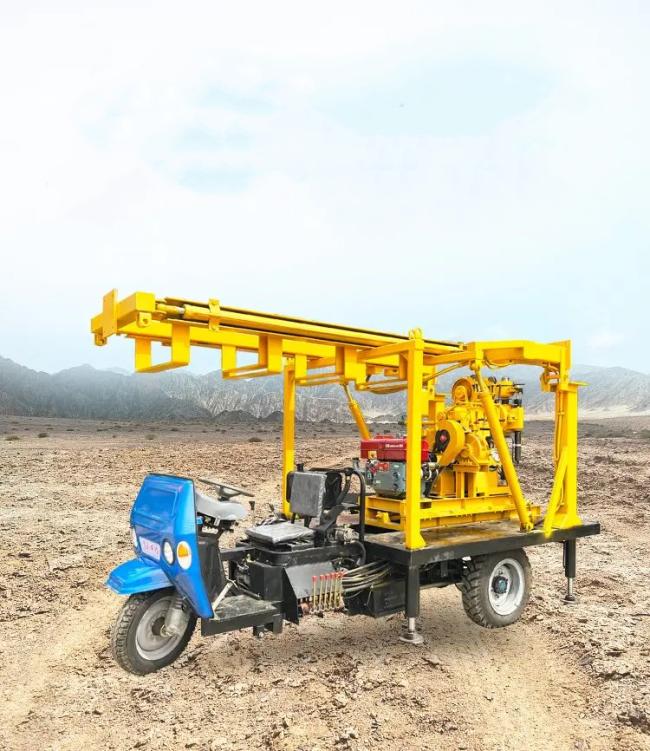

XYC-200 Truck Mounted Mining Drilling Rig:
It is widely used in the geological general investigation and exploration, road, railway, port, bridge, water conservancy, tunnel and tall building basic exploration, kinds of hole in concrete structure, river, levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioner, and etc.
1. Compact structure with small truck, very easy to move and transport.
2. Multi functional drilling rig, can be used for water well drill, coring drill, rock sampling, geological investigation & exploration, geothermal well drill, etc.
3. Strong drilling ability, which can be equipped with diamond core bits & related core barrels to drill through any materials, including hard rock, rock, cobble, gravel, clay, soil, etc
4. Hydraulic system, convenient to operate.
5. Electric starter diesel engine power, diesel engine for power, can be used in any area, especially where is not available for electricity.
6. portable and easy operate.
7. hydraulic drill tower can be lifted automatically, which is safe and convenient in operation.
8. The mud pump be mounted on the truck, which is easy for transportation and convenient for operation.
The technological data of XYC-200 truck mounted hydraulic core drilling rig:
| Technical parameter | |
| Drilling depth | 200m |
| Drilling hole caliber | 300-75mm |
| Drill rod caliber | 42mm-50mm-60mm |
| Drilling angle | 90°~75° |
| Drill weight ( include power, tower etc ) | 2150kg |
| Dimension (LxWxH) | 2750x950x1600mm |
| Spindle | |
| spindle speed | 64-830r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max. single line hoisting capacity | 2400kg |
| Single line lifting speed | 17,35,75,151r/min |
| Tightrope caliber | 13mm |
| Tightrope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 400mm |
| Mud pump | |
| Type | BW-160 Horizontal single urn twin-action |
| Displacement | 160L/min |
| Max. Pressure | 1.5 Mpa |
| Working pressure | 0.7 Mpa |
| Diameter of suction pipe | 50mm |
| Diameter of discharge pipe | 40mm |
| Rig Power | |
| Diesel engine model | ZS1115 |
| Engine power | 22HP |
| Rotate speed | 2200 r/min |
| Hydraulic cylinder rising mast | |
