FWDM MODULE MUX/DEMUX 1260-1660nm FTTH GPON 1290-1330&1480-1500nm NGA 1260-1280&1575-1650nm, Single mode Edge Filter WDM OADM
Price:
12-1000
MOQ:
10pcs
Delivery Time:
5-8 work days
Brand:
HJY
Product Description
Product Description
Single Channel 3 Ports FTTH FWDM Filter with Low Polarization Dependent Loss and Exceptional Reliability and Stability
HJY provides provide Passive FWDM Filter TX11260-1280&1575-1650 RX 1290-1330&1480-1500 is low loss and reliable performances. It works in FTTH/FTTX, in GPON (Support GEPON,XGS-PON,NG-PON2) system works on 1290-1330&1480-1500nm,and CATV signal is delivered over same fiber using 1550±10nm.
FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bi-directional communication so that widely used in optical network upgrades and expansion, or introduce new comprehensive business, etc
Package Information
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Features Applications
· Low Insertion Loss · FWDM Network
· High Channel Isolation · Add/Drop System
· Optical path epoxy free · CATV Fiberoptic System
· Excellent thermal stability and reliability · Metro/Access Network
· Good channel-to-channel uniformity · Fiber Optical Amplifier
· Wide Operating Wavelength: 1260nm-1660nm
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard.
· High Channel Isolation · Add/Drop System
· Optical path epoxy free · CATV Fiberoptic System
· Excellent thermal stability and reliability · Metro/Access Network
· Good channel-to-channel uniformity · Fiber Optical Amplifier
· Wide Operating Wavelength: 1260nm-1660nm
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard.
Product Parameters
| Wavelength | 1260-1660nm | Technology | TFF (Thin Film Filter) |
| Passband | 1260-1280&1575-1650nm | Reflection | 1290-1330&1480-1500nm |
| Passband ripple | ≤0.30dB | IL @ Passband | ≤0.60dB |
| Reflection band ripple | ≤0.20dB | IL @Reflection | ≤0.40dB |
| Transmission isolation (adj channel) | ≥30dB | Transmission isolation (non-adj channel) | ≥50dB |
| Reflection isolation | ≥25dB | Polarization dependent loss | ≤0.1dB |
| Polarization mode dispersion | ≤0.2ps | Thermal Stability | ≤0.005N |
| Directivity | ≥50dB | Return loss | ≥45dB |
| Maximum Power Handing | 300mW | Temperature | Operating -20 to 70°C Storage -40 to 85°C |

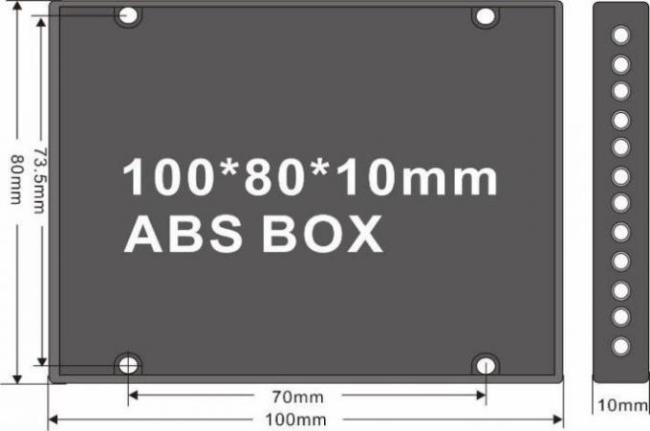

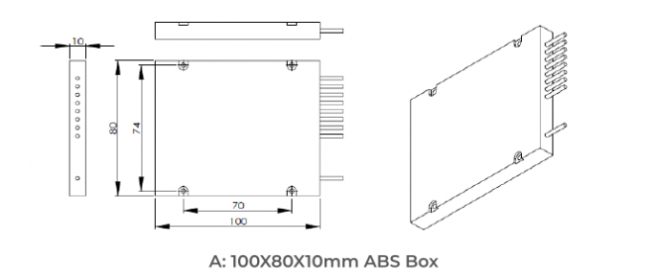

| Fiber type | Corning SMF-28e | Package dimension | Steel ∮5.5 x L34mm ABS 100*80*10nm |
Application Diagram
The Filter WDM system uses a Multiplexer at the transmitter to combine several wavelengths together, each one carry different signal with bite-rate up to 10G and a demultiplexer at the receiver to split them apart. Due to its low insertion loss, low polarization dependence and high isolation, the filter is widely used in CATV system, FTTx and PON system, Fiber Communication, Test Instrument and etc.
The Filter WDM system uses a Multiplexer at the transmitter to combine several wavelengths together, each one carry different signal with bite-rate up to 10G and a demultiplexer at the receiver to split them apart. Due to its low insertion loss, low polarization dependence and high isolation, the filter is widely used in CATV system, FTTx and PON system, Fiber Communication, Test Instrument and etc.
Ordering Information:
| HJY-FW | Package | Connector Type | U/A | Wavelength | Fiber Type | Fiber Length | Ports Type |
| FW |
S: Steel B: ABS BOX Others |
0: No connector 1: LC 2: SC 3: FC 4: Others |
U: UPC A: APC |
T: Transmission wavelength range (nm) R: Transmission wavelength range (nm) |
9: 0.9mm Others |
005: 0.5+/-0.1m 01: 1.0+/-0.1m others |
Com Reflect |
Note.
1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2)PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice
