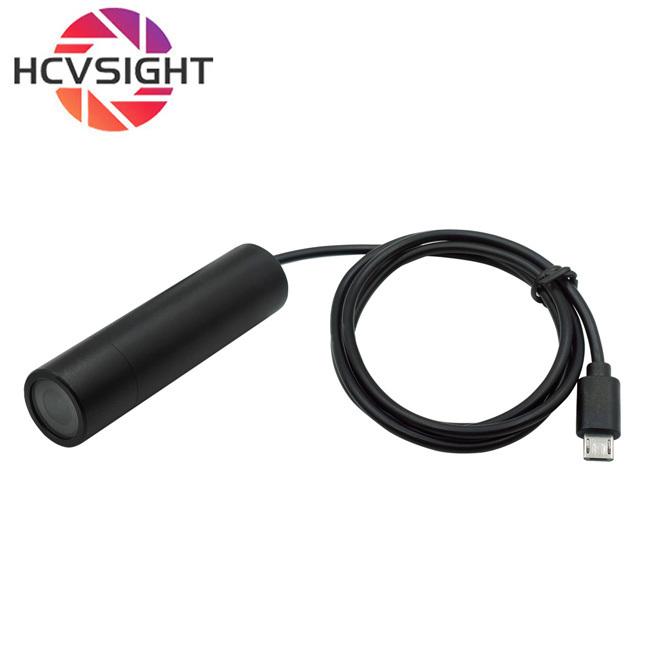

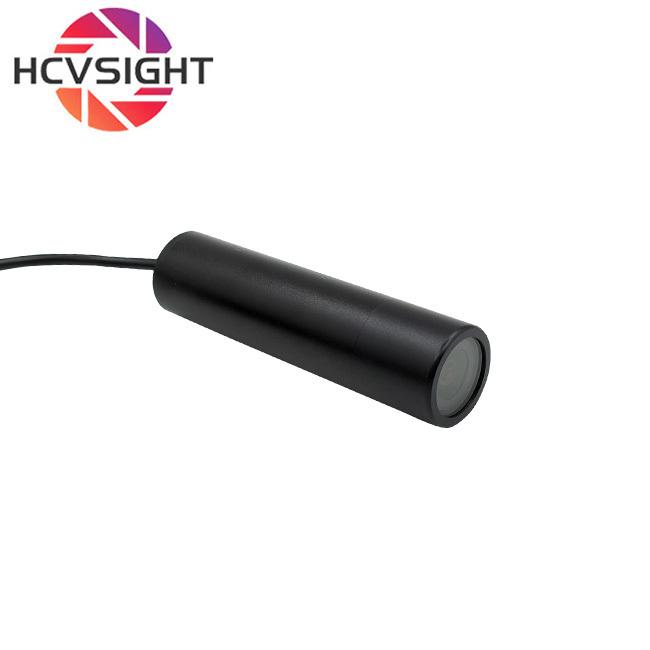

Android OTG Micro-USB Mini Bullet Camera UVC Driver-free HD Industrial Monitoring
Plug and Play Android OTG Support: Compatible with Android, uses a Micro USB interface, plug and play, supports UVC protocol, driver-free installation.
High-Definition Imaging: Provides 720p/1080p high-definition video output, with automatic exposure and white balance, suitable for security, factory inspection, and mobile device monitoring.
Ultra-Compact Design: Bullet-shaped design with a diameter of only 20mm, easy to embed in robots, instrument panels, pipelines, and concealed installation scenarios.
Wide Compatibility: Supports Android phones/tablets, Windows, and Linux systems, applicable to industrial inspection, machine vision, education and research, and security monitoring.
Reliable and Durable: Waterproof and dustproof metal casing, wide operating temperature range, suitable for long-term use in industrial environments.
| Parameter | Value |
|---|---|
| Sensor | 1/4"CMOS |
| Pixel | 1MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1280x720 30fps |
| Operating voltage | DC 5v |
| Dimensions | 20mm×80mm (Base size not included) |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCU-BT201AZ |
| Lens | EFL:3mm, F.ON:2.2, Thread size:M12, Element:4E+IR |
| FOV | 90° |
| Supported OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
- Banking (ATMs, account opening systems)
- Medical (inspection report systems)
- Retail (vending machines, digital signage)
- Industrial (robotics, welding equipment, cranes)
- Fire protection (water cannon monitoring)
- Security systems and surveillance
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
FAQ
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
