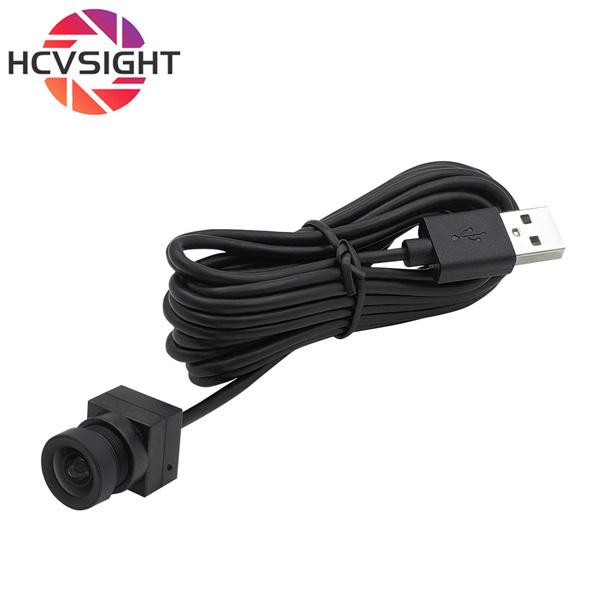

2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size
This is a 2-megapixel USB mini camera that redefines "compact and high-definition". It adopts an unprecedented 15x15mm ultra miniature design, but integrates 1080P full HD image quality and a 110 ° wide-angle distortion free lens. Through the standard USB interface plug and play, without the need to install any drivers, it can bring clear, wide, and undistorted high-quality images to computers and smart devices. Whether it is video conferencing, online teaching, or content creation, it is the ideal choice for users who pursue simplicity, efficiency, and high quality.
| Sensor | 1/2.9" |
| Pixel | 2MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 1920x1080@30fps |
| Audio | Support |
| Working Voltage | DC 5V |
| Product Size | 15mmx15mm |
| White Balance | Automatic |
| Working Temperature | <70°C |
| Power Consumption | 0.25W |
| Model | HCU-WJB15282 |
| Interface Type | USB 2.0 |
| USB Cable Length | Default 2m |
| Lens Specifications | F.NO: 2.0mm Focal Length: 2 Distortion: <-1.0% Component: 4E+IR |
| FOV | 110° |
| Chip Type | CMOS |
| Supported OS | Windows/Mac OS/Linux/Android |
1. High-definition imaging and low-distortion design: Utilizing a 2MP 1080p high-resolution image sensor combined with a 2.8mm wide-angle lens, it achieves low distortion and realistic scene reproduction.
2. Compact and mini size for easy embedding: Measuring only 15×15mm and lightweight, it is ideal for space-constrained applications such as embedded systems, portable devices, and industrial control boards.
3. USB interface for plug-and-play: Supports a standard USB interface, allowing for quick connection to PCs, embedded motherboards, and industrial controllers without additional drivers or complex configurations.
4. Wide compatibility and reliability: This camera module is compatible with mainstream operating systems such as Windows, Linux, and Ubuntu.
We offer comprehensive OEM/ODM customization services to meet unique visual requirements for various applications:
- Lens Customization: Specific focal length, field of view angle, and distortion control.
- Housing Customization: Dedicated casing, bracket, or mounting solutions.
- Cable & Interface: Custom cable lengths and interface types.
- Resolution Options: Higher pixel models available (4MP, 5MP, 8MP, 12MP).
- Industrial Automation and Machine Vision
- Precision equipment status monitoring
- Security monitoring system
- Embedded access control/attendance
- Smart Home Security
- Laboratory equipment monitoring
- Intelligent retail terminal
- Drone/Robot Visual Perception
- Education/Conference System
- all-in-one
- electronic scale
- Law enforcement equipment
- Android phone external camera
- Computer Camera
FAQ
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring.
Q: Which industries do you serve?
A: Our cameras are widely used in:
✔ Industrial automation (defect detection, robotics)
✔ Smart security (facial recognition, access control)
✔ Retail/logistics (barcode scanning, inventory management)
✔ Medical equipment and traffic monitoring
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
