Seamless Connection WM-JSN05 1200pcs/min Sanitary Napkin Production Line Quick Model Change
| Attribute | Value |
|---|---|
| Production Speed | 800-1200 pieces per minute |
| Product Size | 240mm,290mm,320mm,420mm(Customized according to customer requirement) |
| Production Yield Rate | ≥98% |
| Weight | About 50 tons |
| Machine Size | 25x4x3m |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Raw Material | Fluff pulp, SAP, non-woven fabric, PE film |
| Control System | PLC control system(Mitsubishi),HMI Operating on the LED touch |
| Drive system | Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings. |
| Power | 240V,50Hz,3 Phase Five Wire |
Sanitary Pad: Detailed Structure & Material Parameters Table
| Core Structure | Sub-Structure | Main Materials | Key Features |
| Surface Layer | Skin-Friendly Layer | Combed Cotton,Bamboo Fiber | Soft, skin-friendly, breathable |
| Breathable Layer | Microporous Non-Woven Fabric | Moisture-wicking, reduces stuffiness | |
| Distribution Layer | Rapid Penetration Layer | High-Puff Non-Woven Fabric | Fast liquid absorption, no local accumulation |
| Despersion Layer | Patterned Non-Woven Fabric | Even liquid distribution | |
| Absorbent Core | SAP Locking Layer | Super Absorbent Polymer (SAP) | High water absorption, anti-reverse osmosis |
| Support Layer | Fluff Pulp, Hollow Fiber | High water absorption, anti-reverse osmosis | |
| Leak-Proof Bottom | PE Breathable Film | Polyethylene Breathable Film | Waterproof, breathable |
| Anti-Slip Adhesive | Medical-Grade Adhesive | Secure fit, no displacement | |
| Wings | Fixing Wings | Rigid Non-Woven Fabric | Anti-side shift |
| Leak-Proof Edges | Elastic Non-Woven Fabric | Enhanced side leakage protection |

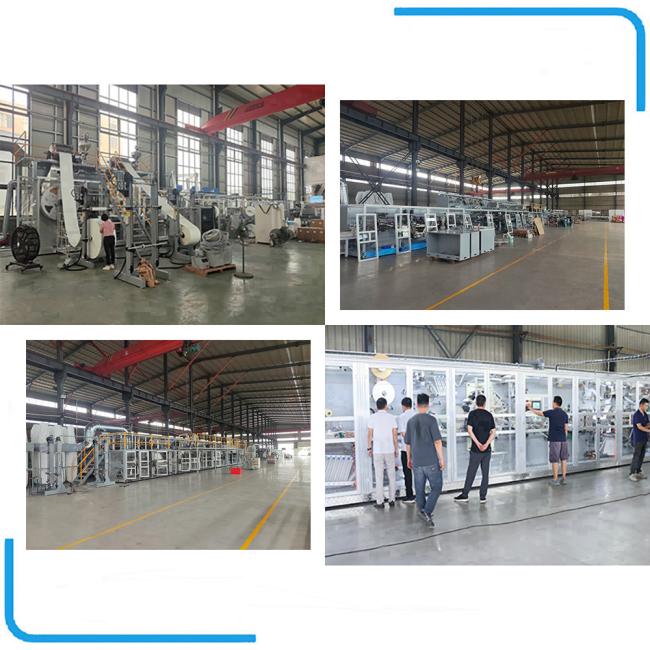

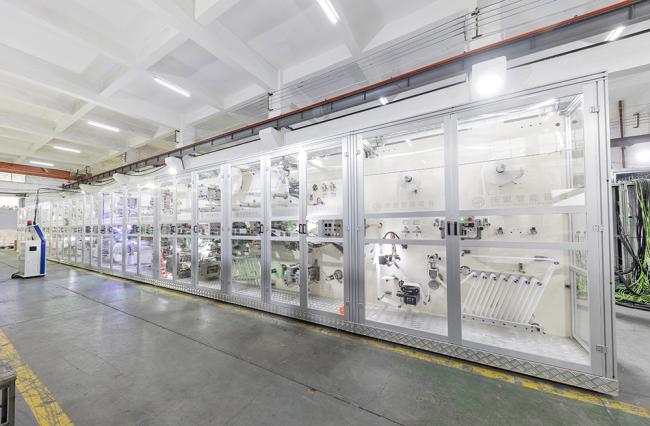

Machine Panoramic Image
Personalized functions can be added at will: It can integrate temperature-sensitive color-changing indication, natural essence addition, degradable material composite and other modules, easily produce high-end products such as "special for sensitive skin", "environmentally friendly compostable", "medical-grade care", etc., helping brands build differentiated competitiveness.
Choose us and you will get:
✅ brand upgrade support: from mass-market models to high-end customization, supporting the full life cycle iteration of products.
