Stable Production 700pcs/min Baby Training Panties Production Line ISO9001 Factory
Product Specifications
| Condition | Brand New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Production Line Size | 25x6x3M(For reference only) |
| Machine Weight | About 100 tons |
| Production Speed | 500-800Pcs/Min |
| Control System | PLC control system(Mitsubishi), HMI Operating on the LED touch screen, Configure HDTV monitor |
| Drive system | Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings. |
| Production Efficiency | ≥97% |
| Machine Capacity | 400KW (Excluding glue machine and air compressor) |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | High Standar Full Servo |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Packaging System | According to customer requirements with palletizer machine (double push double exit) adjustable |
| Warranty | 1 year |
Technical features:
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

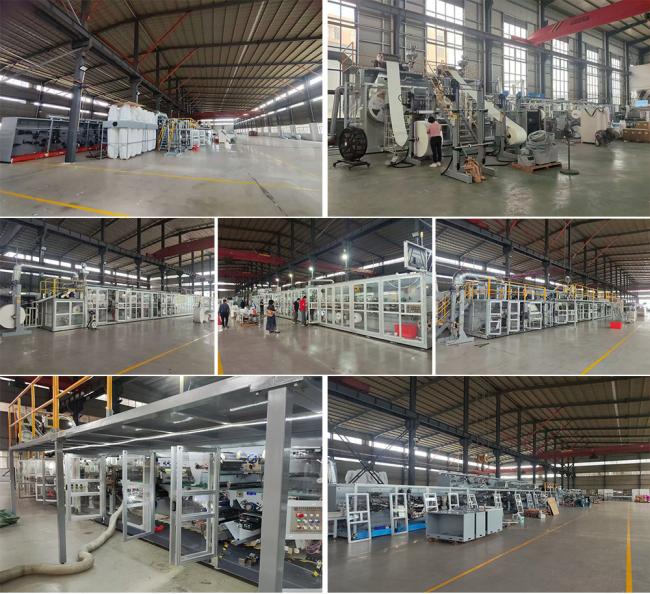

Machine Panoramic Image
Whatsapp: +008615805080212
https://www.diapersmachines.com
Cost-friendly: Helps buyers increase their profit margins
High utilization rate of raw materials:
Through a precise core spreading system (to avoid waste of high-molecular materials) and optimized cutting design (to reduce fabric scraps), the utilization rate of raw materials can reach over 96%. Compared with traditional production lines, it wastes 300-500kg less raw materials for every 100,000 pieces produced. In the long run, it can save 10%-15% of raw material costs.
Low labor input :
Realize the semi-automated or fully automated process of "automatic feeding - automatic lamination - automatic forming - automatic slitting - automatic bagging". Only 2 to 4 operators are needed for each production line (while traditional production lines require 6 to 8 people), and no complex skills are required. They can be on the job after one day of training, significantly reducing labor costs and the difficulty of cross-border management.
Energy-saving and low-consumption design:
The heating module is wrapped with an insulation layer, and the drive motor selects an energy-saving model. Compared with traditional production lines of the same capacity, energy consumption is reduced by 18% to 25% (for example, if it operates for an average of 16 hours per day, it can save 2,000 to 4,000 yuan in electricity fees per month). Long-term use can significantly reduce operating costs.
