2026 New Model Full Servo Adult Diaper Manufacturing Machine CE Certificate
| Condition | New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Machine Weight | About 90 tons |
| Production Line Size | 35x6x4.5M(For reference only) |
| Production Speed | 200-400Pcs/Min |
| Control System | PLC Control System(Mitsubishi) |
| Production Efficiency | ≥98% |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | Full Servo |
| Finished Product structure | Nonwoven cuffs,Fluff cuff elastics,Nonwoven topsheet,Acquisition layer,Tissue,Fluff+SAP,Phobic Nonwoven,Inner Nonwoven,Elastic waistband,Anatomic elastics,Outer Nonwoven,Disposable tape |
| Packaging System | Customized Design |
| Warranty | 1 year |
The production line includes:
Double pulp crusher system
Double SAP feeding system
Double Drum forming system
Lower tissue paper feeding system
Upper tissue paper feeding system
Core wrapping system
Smooth roller compacting system
Web roller compacting system
ADL feeding & cut system
Core cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Wasit band feeding & cut system
Backsheet feeding system
Frontal tape feeding system
Leg Spandex feeding system
Side tape feeding system
Arc cutting system
Edge scrap collecting system
Vertical folding system
Product compacting system & final cutting
NO.1 rejection output
Bi & Tri folding system
NO.2 rejection output
Out put system
Finished product details

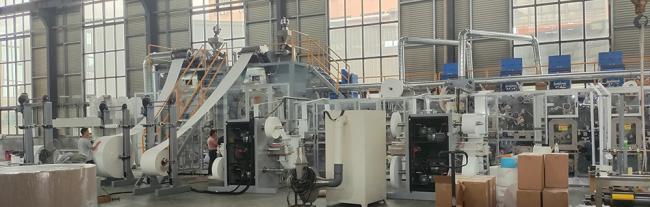

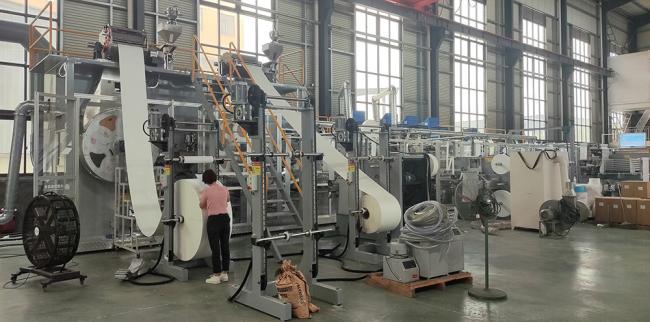

Machine Panoramic Image
It precisely conforms to ergonomics and meets the diverse body types of adults
Full servo independent control for elastic waist stretching, leak-proof stand formation, and core positioning, with an accuracy of ±0.5mm. It can produce multiple sizes such as M/L/XL/XXL, suitable for adult body sizes in different regions (such as large sizes in Europe and America and standard sizes in Asia).
It supports customized high-waisted abdominal guards, widened leak-proof edges, breathable perforated surface layers and other processes, taking into account the leak-proof needs of incontinence patients and the comfortable experience of people who sit for long periods, and meets the FDA and CE skin contact safety standards.
Value to international buyers: The terminal products have strong adaptability and can cover multiple scenarios such as elderly care, medical care, and daily care, expanding dual channels of B-end (nursing homes, hospitals) and C-end (supermarkets).
High production capacity and low loss significantly enhance the return on investment
The stable operating speed is 250-350 pieces per minute, with a maximum of 400 pieces per minute. The production capacity is increased by more than 35% compared with traditional production lines. Constant tension control + zero-speed splicing technology reduces the raw material loss rate to 2%-3%, significantly lowering the cost of core raw materials such as wood pulp and SAP.
The servo system can adjust the speed as needed, reducing energy consumption by 18% to 22% compared to the asynchronous motor production line. Only 3 to 4 people are needed to operate per shift, and the comprehensive operating cost drops by about 25%. The payback period for investment is shortened to 10 to 15 months.
Value to international buyers: High production capacity meets the demand for large orders, low consumption features enhance price competitiveness, and quick profitability is achieved.
