New Technology 400pcs/min Adult Diaper Manufacturing Machine 2026 Type
| Condition | New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Machine Weight | About 90 tons |
| Production Line Size | 35x6x4.5M(For reference only) |
| Production Speed | 200-400Pcs/Min |
| Control System | PLC Control System(Mitsubishi) |
| Production Efficiency | ≥98% |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | Full Servo |
| Finished Product structure | Nonwoven cuffs,Fluff cuff elastics,Nonwoven topsheet,Acquisition layer,Tissue,Fluff+SAP,Phobic Nonwoven,Inner Nonwoven,Elastic waistband,Anatomic elastics,Outer Nonwoven,Disposable tape |
| Packaging System | Customized Design |
| Warranty | 1 year |
The production line includes:
Double pulp crusher system
Double SAP feeding system
Double Drum forming system
Lower tissue paper feeding system
Upper tissue paper feeding system
Core wrapping system
Smooth roller compacting system
Web roller compacting system
ADL feeding & cut system
Core cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Wasit band feeding & cut system
Backsheet feeding system
Frontal tape feeding system
Leg Spandex feeding system
Side tape feeding system
Arc cutting system
Edge scrap collecting system
Vertical folding system
Product compacting system & final cutting
NO.1 rejection output
Bi & Tri folding system
NO.2 rejection output
Out put system
Finished product details

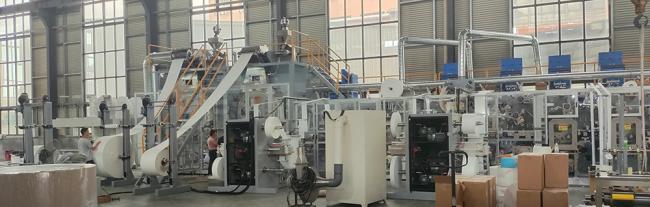

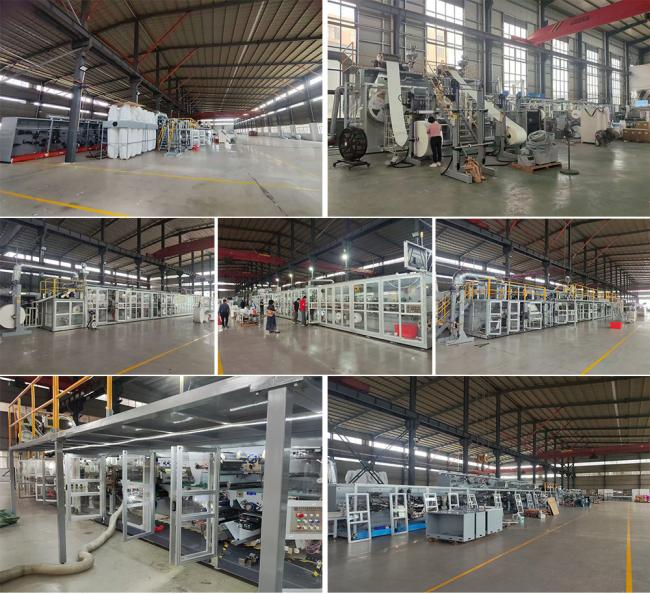

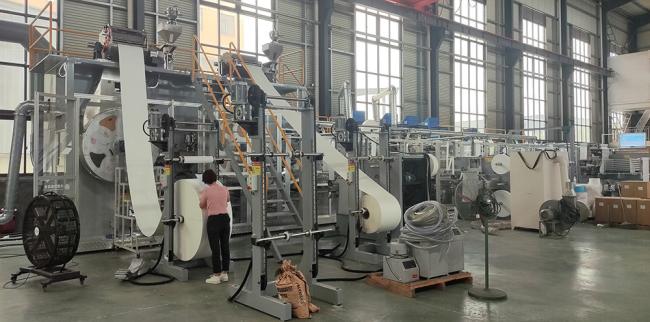

Machine Panoramic Image
Intelligent quality inspection and full-process traceability make it easy to pass international factory audits
Equipped with an AI visual inspection system, it can automatically identify defects such as core offset, glue leakage, and waist breakage, keeping the defective product rate at ≤2% and eliminating substandard products in real time. Support batch QR code traceability, recording full-process data such as raw material batches, production parameters, and quality inspection reports.
Production data can be exported and integrated with the ERP system, conforming to the ISO 9001 quality management system and the traceability requirements of European and American supermarkets and medical channels.
Value to international buyers: Controllable and traceable quality, reduced market supervision risks, and smooth entry into high-end supply chains.
Low threshold for factory construction, suitable for complex working conditions worldwide
Compact design, some models only require a height of 3.2 meters for installation, meeting the pain point of limited factory space in emerging markets. The modular structure shortens the on-site installation and commissioning period to 7 days, enabling rapid production start-up.
The equipment is treated for dust-proofing, moisture-proofing and anti-corrosion. The core electrical control system is equipped with a sealed protective cover, which can adapt to complex environments such as sandstorms in the Middle East and high temperatures and humidity in Southeast Asia. Supports switching between 380V and 400V voltages and 50Hz and 60Hz frequencies without the need for circuit modification.
Value for international buyers: Reduce investment in factory renovation and infrastructure, quickly start production, and lower the risks of building factories across borders.
Customized for The United Kingdom,Denmark,Germany,Switzerland,Netherlands,Russia,France,Ireland,Czech Republic,Sweden,Romania,Monaco,Italy,Finland,Spain,Portugal,Malta,Hungary,Austria,Bulgaria,Greece,Slovenia,Poland,Belgium,Norway,Slovakia
