High Quality Car GPS Tracker External GPS GSM Combined Car Bus Antenna Signal Booster
Price:
$5.80/pieces 100-999 pieces
MOQ:
100 pieces
Delivery Time:
Negotiable
Brand:
XINHONGYU
Product Description

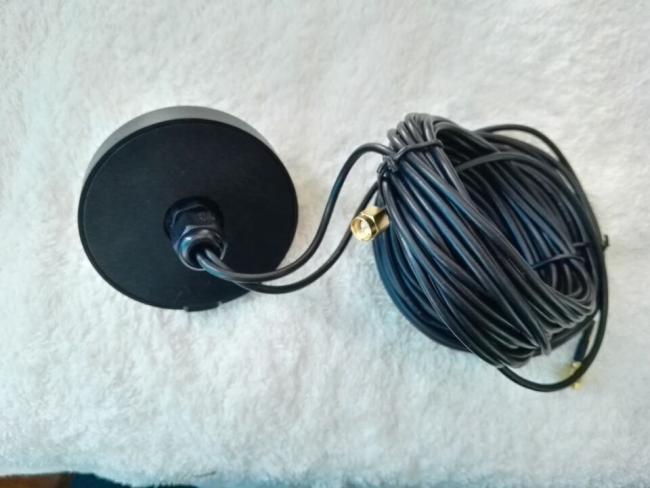

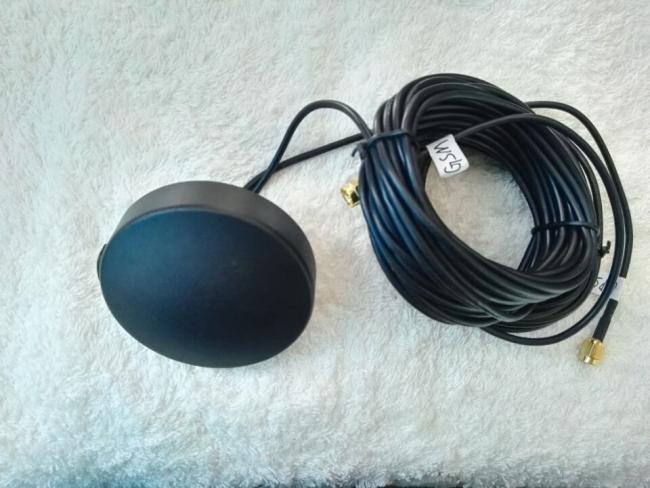

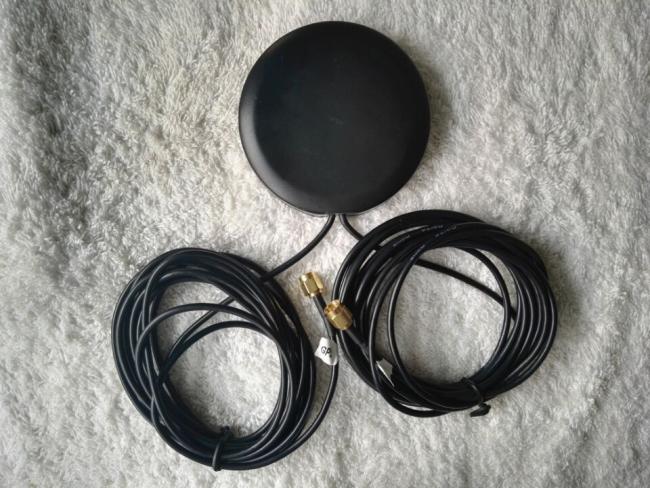

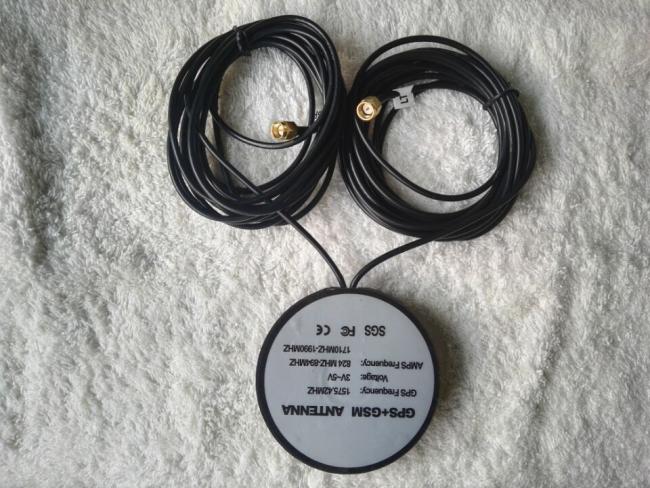

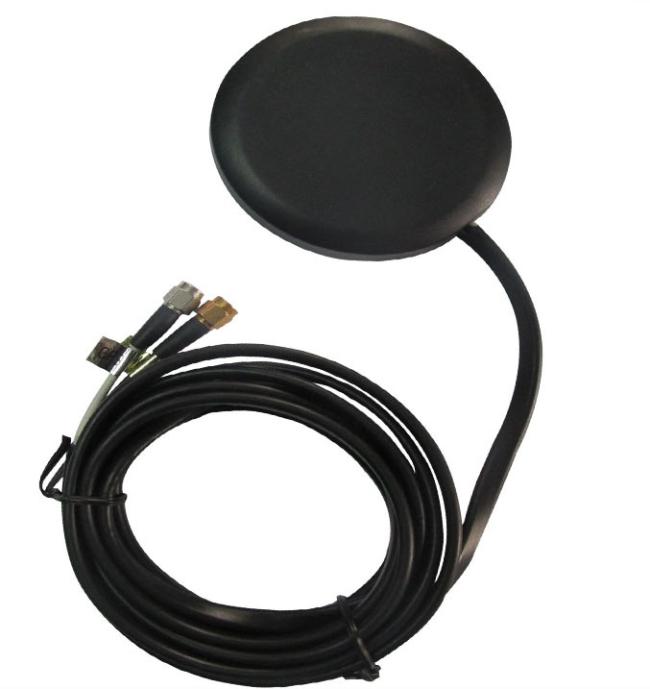

Car GPS Tracker External GPS GSM Combined Car Bus Antenna Signal Booster
Product Description
Specification
（i）GPS Antenna
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
（ii）GSM Antenna
Center Frequency（MHz）：850/900/1800/1900
VSWR：2.0:1
Impedance（Ω）：50
Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
（iii）LNA/Filter
LNA Gain(Without Cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
（iv）Mechanical
Weight（gram）＜150
Size（mm）70D×14H
Cable GPS（m）：RG174 2,5 long etc.
GSM（m）：RG174 2,5 long etc.
Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting：Screw(Hole/Roof)
Housing：Black
（v）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
（ii）GSM Antenna
Center Frequency（MHz）：850/900/1800/1900
VSWR：2.0:1
Impedance（Ω）：50
Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
（iii）LNA/Filter
LNA Gain(Without Cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
（iv）Mechanical
Weight（gram）＜150
Size（mm）70D×14H
Cable GPS（m）：RG174 2,5 long etc.
GSM（m）：RG174 2,5 long etc.
Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting：Screw(Hole/Roof)
Housing：Black
（v）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof
Packing & Delivery
PE bag per unit-------Carton Box
Company Profile
Antenna source factory, support development and customization
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Oceania(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Eastern Asia(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
TV antenna,GPS antenna,wifi antenna,FM antenna,Communication antenna
4. why should you buy from us not from other suppliers?
Antenna source factory, support development and customization
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Oceania(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Eastern Asia(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
TV antenna,GPS antenna,wifi antenna,FM antenna,Communication antenna
4. why should you buy from us not from other suppliers?
Antenna source factory, support development and customization
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Welcome contact WhatsAPP/Wechat +8618344296712 for easy communicate.
