Parking Signage IA31 Oneway Indoor Guidance Screen Standard Oneway Display 485 LED PGS
Parameter
|
Model |
WBP-IA31-1(one-way) |
Operating temperature |
-30℃ ~ +65℃ |
|
Size |
One-way 650*183*56mm |
Supply voltage |
AC220V±10 |
|
Two-way 1030*183*56mm |
Maximum power consumption |
≤20W(one-way) |
|
|
Three-way 1410*183*56mm |
Humidity |
5％--95％RH |
|
|
Appearance material |
Black aluminum frame |
Communication mode |
Power carrier Bluetooth (debugging) |
|
Empty parking space |
Screen printing LED white luminous characters |
Communication distance |
Bluetooth≤5M |
|
Light source |
Red and green LED light beads |
Pixel density |
44321 point/㎡ |
|
Dot spacing |
4.75 mm |
Resolution ratio |
80*32=2560 point |
|
Life |
≥100,000 hours |
Drive mode |
constant current |
Table 3.1 Technical parameters of the indoor boot screen
Product Description
Product features
- The guide screen is constructed with a black aluminum alloy frame, presenting a simple yet elegant appearance.
- The guide screen adopts a low power consumption design and comes equipped with short circuit, overvoltage, overcurrent, and overload protection.
- It offers support for displaying content in multiple directions, thus meeting the requirements of various intersections.
- The green indication is clear and easily recognizable, and the lamp bead has a high luminous intensity, long viewing distance, and wide viewing angle.
Product installation and wiring
The indoor guide screen is installed by ceiling hoisting, and the power and signal cables are directly led from the bridge to the guide panel box using metal hoses. The installation diagram is shown in Figure 4.1:

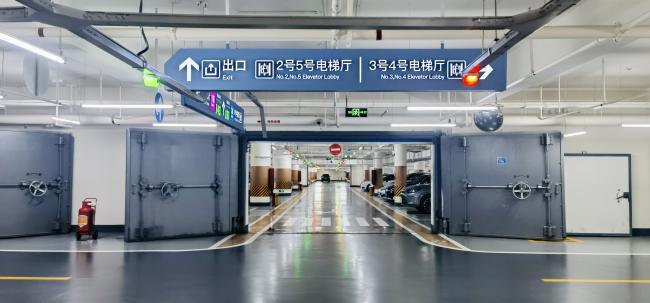

Case Images
Parking Signage IA31 Indoor guidance screen standard oneway Display 485 LED PGS
