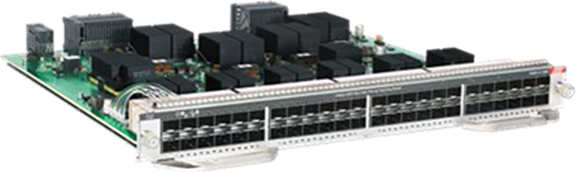

48 Ports Gigabit Ethernet Upoe Cisco Switch Line Card C9400-LC-48XS
| Attribute | Value |
|---|---|
| Private Mold | NO |
| Products Status | Stock |
| Ports | ≥ 48, 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| Transmission Rate | 10/100/1000Mbps |
| Function | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode | Full-Duplex |
| Switch Capacity | 24 GB |
| System memory | 24 GB |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. |
| Warranty | 1 Year |
| Frequency | 50 to 60 Hz |
| Port | Beijing |
Brand-new Cisco 9400 Series 48 ports gigabit ethernet upoe Module Card C9400-LC-48XS
Cisco Catalyst 9400 Series switches are Cisco's lead modular enterprise switching access and aggregation platform built for security, IoT and cloud. This switch series forms the foundational building blocks for the Cisco Networking Cloud with SD-Access, Cisco's leading enterprise architecture.
Catalyst 9400 Series switches provide unparalleled investment protection with a chassis architecture that supports up to 9 Tbps of system bandwidth and unmatched power delivery with high density IEEE 802.3bt PoE (60W and 90W). Redundancy is now a given across the portfolio.
Cisco Catalyst 9400 Series switches deliver state-of-the-art High Availability (HA) with capabilities like SSO/NSF, uplink resiliency, N+1/N+N redundancy for power supplies. Catalyst 9400 Series switches are enterprise optimized with an innovative dual-serviceable fan tray design, side to side airflow and is closet-friendly with ~16 in. depth.
A single system can scale up to 384 access ports with your choice of 10G, 5G and 2.5G multigigabit copper, 1G Copper, Cisco UPOE®+, Cisco UPOE and PoE+ options and up to 36 ports 100G, 96 ports 40G, 168 ports 25G, and 384 ports 10G Fiber and 1G Fiber options.
The platform also supports advanced routing and infrastructure services, SD-Access capabilities, Simplified Campus Automation and network system virtualization. These features enable optional placement of the platform in the core and aggregation layers of small to medium-sized campus environments.
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az |
|---|---|
| EtherChannel Technology |
Gigabit EtherChannel: All 1000 Mbps ports 10 Gigabit EtherChannel: All 10Gbps ports IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports Port Aggregation Protocol (PagP): Yes Number of ports per tuple: 8 EtherChannel and IEEE 802.3ad technology across line cards: Yes |
| Physical Dimensions |
Occupies one slot in the 9400 Series platform Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
The Cisco Catalyst 9400 Series 48-port 10 Gigabit Ethernet line card can be deployed for high-performance and high-density 10 Gigabit Ethernet aggregations in the campus and in small to medium-sized networks as a core switch.
The Cisco Catalyst 9400 Series 48-port 10 Gigabit Ethernet line card supports standard Small Form-Factor Pluggable Plus (SFP+) optics. The ports can be used interchangeably as Gigabit Ethernet and 10 Gigabit Ethernet to support phased migration from Gigabit Ethernet to 10 Gigabit Ethernet.
- Supports up to 48 ports of 10GE SFP+ or 48 Ports 1GE SFP.
- SFP+ and SFP can be used simultaneously on the same line card without any restrictions.
- Supported on Cisco IOS XE Software Release 17.8 or later.
- IEEE 802.1AE (MACsec-256) capability in hardware.
- Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes).
- Designed for enterprise backbone and collapsed access deployments.
| Supervisor | Chassis C9404R | Chassis C9407R | Chassis C9410R |
|---|---|---|---|
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) | Bandwidth per slot: 480 Gbps Oversubscription: 1:1 |
Bandwidth per slot: 480 Gbps Oversubscription: 1:1 |
Bandwidth per slot: 480 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) | Bandwidth per slot: 240 Gbps Oversubscription: 2:1 |
Bandwidth per slot: 240 Gbps Oversubscription: 2:1 |
Bandwidth per slot: 240 Gbps Oversubscription: 2:1 |
Packing Details
- All items are sealed in original box
- We will also pack them with another carton box before shipping
- Professional packing will make sure the goods arriving safely
A: All our products are new original.
A: We work with DHL, UPS, Fedex, Middle East Express and many others delivery companies. The goods usually arrive at the designated address within 3-5 days.
A: We will deliver the goods within 1-2 days after receiving the payment. If it is in stock, we will arrange it immediately.
A: One year.
