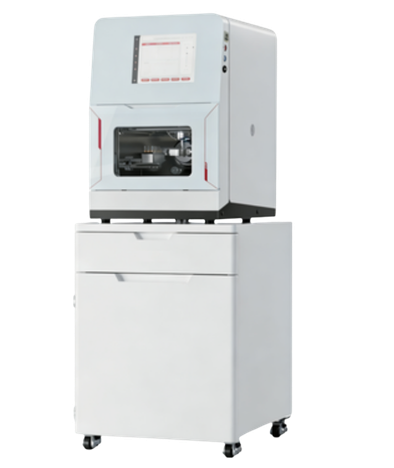

LMW-5 Dry & Wet Dental Milling Machine: Dual-Mode Cutting for Zirconia/PMMA/Titanium High Precision 5 Axis Dental Prosthetic Milling Equipment
Price:
13000 USD
MOQ:
1
Delivery Time:
7
Brand:
Leomed
Product Description
LMW-5 Wet & Dry Milling Machine
1.Core Functions
1.1 Machine Structure
Mineral cast integrated body combined with semi fixture design, delivering exceptional stability and shock resistance
for consistent high-precision machining,while enabling fast loading and precise positioning.
1.2 Cutting & Calibration System
- Dual cutting modes: Dry milling & wet milling supported (flexible adaptation to different material processing needs)
- 90-degree milling supported for complex dental prosthetics
- Industrial automatic calibration system with ±0.05 mm positioning accuracy
- High repeatability and long-term precision stability
- 90-degree milling supported for complex dental prosthetics
- Industrial automatic calibration system with ±0.05 mm positioning accuracy
- High repeatability and long-term precision stability
1.3 Spindle Performance
- High-power dedicated spindle
- Water cooling system for sustained heavy-duty operation
- Max spindle speed: 60000 rpm
- High cutting efficiency, smooth surface finish, and extended service life
- Water cooling system for sustained heavy-duty operation
- Max spindle speed: 60000 rpm
- High cutting efficiency, smooth surface finish, and extended service life
1.4 Intelligent Control Functions
- Compatible with all mainstream CAM software
- Breakpoint resume function supported
- Tool magazine life monitoring & real-time wear alerts
- After-sales diagnostic board for fast troubleshooting and maintenance
- Breakpoint resume function supported
- Tool magazine life monitoring & real-time wear alerts
- After-sales diagnostic board for fast troubleshooting and maintenance
1.5 Fixture & Machining System
-Semi fixture design for fast loading and precise positioning
-5-axis configuration with defined rotary axis range (A ±360°, B +90° to -30°)
-DryWet Conversion System: Fully supported (switch freely between dry and wet milling modes)
-Working area: 160×115×105 mm
-Tool diameter compatibility: Ø6 mm
1.6 Dry & Wet Switching System
-Manual switching between dry and wet milling modes, simple operation logic that aligns with professional processing habits, enabling targeted adaptation to different material characteristics.
-Matching Water Tank: Equipped with a dedicated water storage tank for wet cutting, featuring a sealed structure to prevent leakage and facilitate easy refilling and cleaning; ensures stable water supply during continuous wet milling operations.
-Professional Water Chiller: Configured with a matching water chiller to maintain constant cooling water temperature. It effectively reduces tool wear, improves machining precision, and ensures a smooth surface finish of workpieces, especially suitable for processing heat-sensitive materials.
2.Processing Compatible Plates
2.1 Processable Materials
Ti Zirconia
Pre-milled Blank Glass Ceramic
Smooth milling, minimal chipping, and ideal for dental prosthetic manufacturing.
2.2 Holder Specifications
|
Number of axes
|
5
|
|
Millable material
|
Zirconia/PMMA/Wax/Glass ceramic/Titanium disc/Titanium abutment
|
| Processing method | Dry & Wet Milling |
| Dimension | 525×700×784 mm |
| Weight | 150 kg |
| Automatic tool change quantity | 18 tools |
Support & Services
1. Application Scenarios
Digital dental laboratories, centralized prosthetic milling centers, dental clinic manufacturing hubs, and industrial precision milling workshops requiring multi-material processing.
2. Recommended Compatible Zirconia
Leomed 3D pro ML zirconia blocks optimized for this milling machine – improved machining stability, higher success rate, and consistent final quality.
3. Certifications
CE, ISO and other applicable industry certifications.
