LMM-5 Premium Automatic Dry & Wet Dental Milling Machine: 5-Axis High Precision Dual-Mode Cutting for Zirconia/Titanium – 8-Slot Disc Changer & Auto Mode Switching
Price:
19000 USD
MOQ:
1
Delivery Time:
7
Brand:
Leomed
Product Description

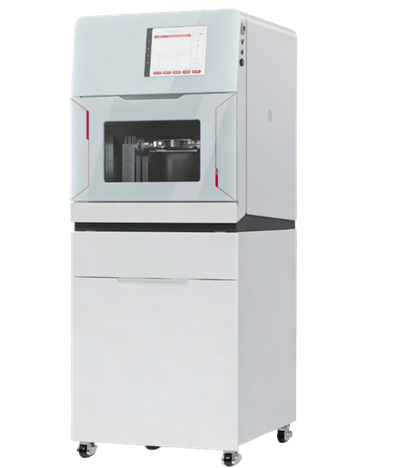

LMM-5 Dry & Wet Automatic Milling Machine
1.Core Functions
1.1 Machine Structure
Mineral cast integrated body combined with multi-type fixture design,
delivering high stability, shock resistance, and targeted positioning accuracy for different workpieces.
1.2 Cutting & Calibration System
- Dual cutting modes: Dry milling & wet milling supported (flexible adaptation to different material processing needs)
- 90-degree milling supported for complex dental prosthetics
- Industrial automatic calibration system with ±0.05 mm positioning accuracy
- High repeatability and long-term precision stability
- 90-degree milling supported for complex dental prosthetics
- Industrial automatic calibration system with ±0.05 mm positioning accuracy
- High repeatability and long-term precision stability

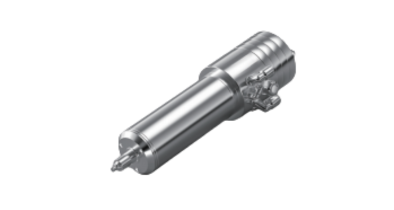

1.3 Spindle Performance
- High-power dedicated spindle
- Water cooling system for sustained heavy-duty operation
- Max spindle speed: 60000 rpm
- High cutting efficiency, smooth surface finish, and extended service life
- Water cooling system for sustained heavy-duty operation
- Max spindle speed: 60000 rpm
- High cutting efficiency, smooth surface finish, and extended service life

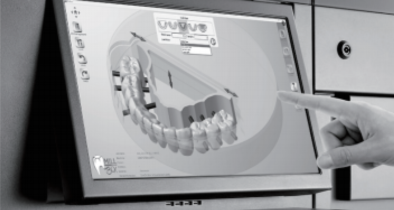

1.4 Intelligent Control Functions
- Compatible with all mainstream CAM software
- Breakpoint resume function supported
- Bur life monitoring & real-time wear alerts
- Quick maintenance module for efficient troubleshooting and daily upkeep
- Breakpoint resume function supported
- Bur life monitoring & real-time wear alerts
- Quick maintenance module for efficient troubleshooting and daily upkeep

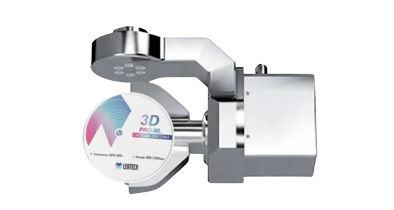

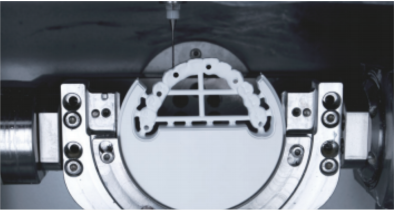

1.5 Fixture & Machining System
-Multi-type fixture configuration: Square fixture, titanium abutment fixture, glass ceramic fixture (supports precise positioning for different workpiece types)
-5-axis configuration with defined rotary axis range (A 360°, B ±30°)
-Working area: 160×115×105 mm
-Tool diameter compatibility: Ø6 mm
1.6 Dry & Wet Automatic Conversion System
-Automatic DryWet Conversion System: Intelligent identification of processing materials to switch dry/wet modes automatically (e.g., wet milling for heat-sensitive titanium, dry milling for zirconia), reducing manual operation and improving processing efficiency.
-Equipped with coolant tank: Sealed structure with sufficient capacity, ensuring stable coolant supply for wet cutting; easy to clean and refill.
-Integrated cutting fluid system: Matches wet milling requirements, effectively reducing tool wear and material thermal deformation, while enhancing workpiece surface smoothness.
2.Processing Compatible Plates
2.1 Processable Materials
Ti Zirconia
Pre-milled Blank Glass Ceramic
Smooth milling, minimal chipping, and ideal for dental prosthetic manufacturing.
2.2 Holder Types
Half-open blank holder (C-CLAMP) Titanium holder Glass ceramic holder
2.3 Holder Specifications
|
Number of axes
|
5
|
|
Millable material
|
Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK/Cocr
|
| Processing method | Dry & Wet Milling |
| Dimension | 685×770×1700 mm |
| Weight | 390 kgs |
| Automatic tool change quantity | 27 tools |
Support & Services
1. Application Scenarios
Digital dental laboratories, centralized prosthetic milling centers, dental clinic manufacturing hubs, and industrial precision milling workshops requiring multi-material processing.
2. Recommended Compatible Zirconia
Leomed 3D pro ML zirconia blocks optimized for this milling machine – improved machining stability, higher success rate, and consistent final quality.
3. Certifications
CE, ISO and other applicable industry certifications.
