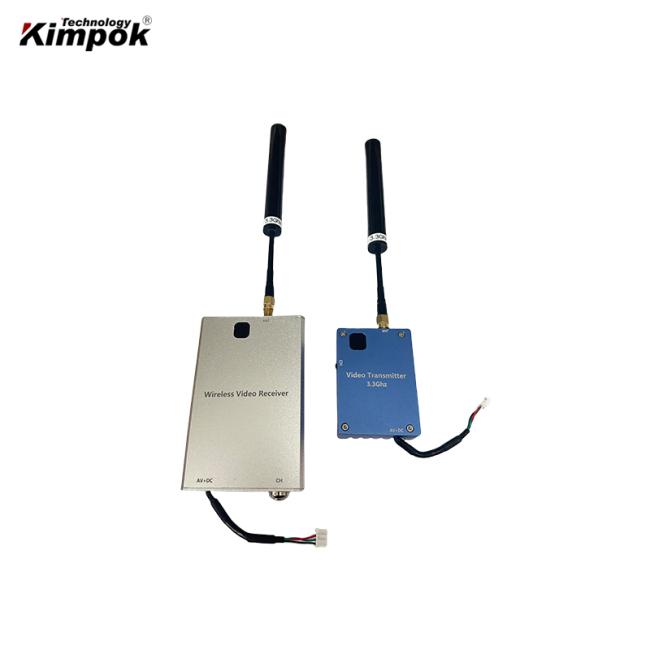

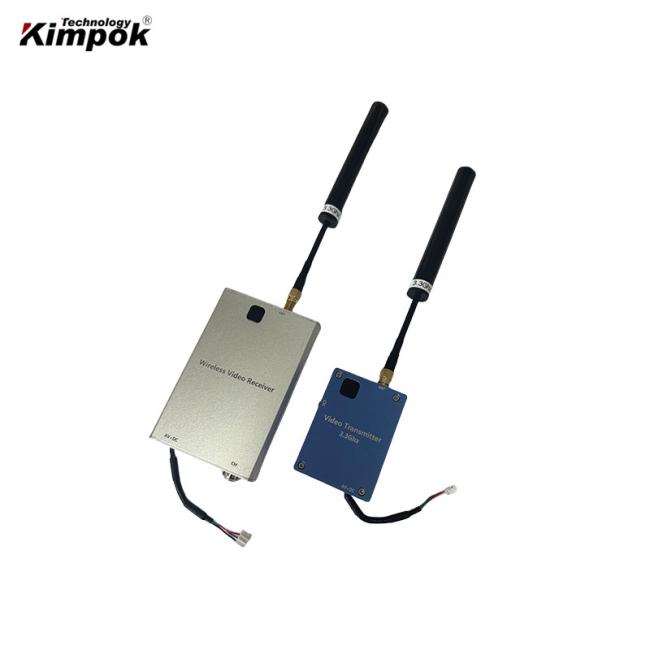

Private Mold Yes 3.3Ghz FPV Video Transmitter 2W Wireless Video Link for Drone Transmission up to 20km
3.3Ghz FPV Video Transmitter 2W Wireless Video Link 10~20km Drone Transmission

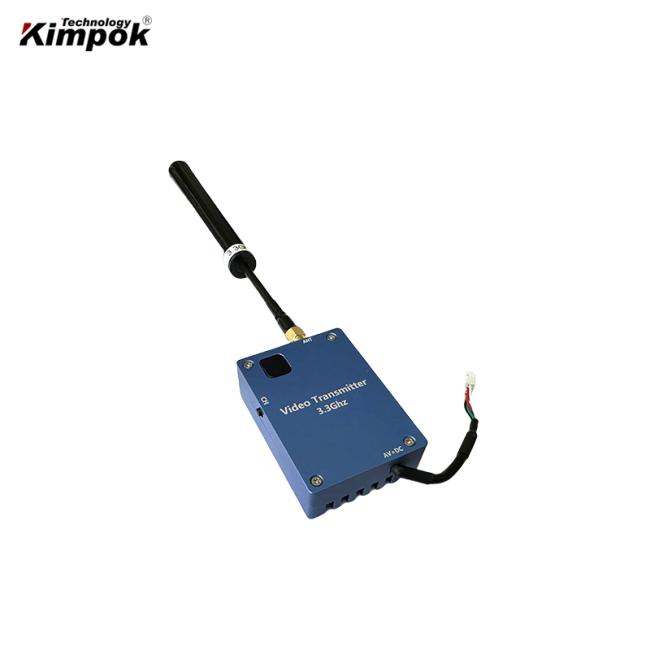

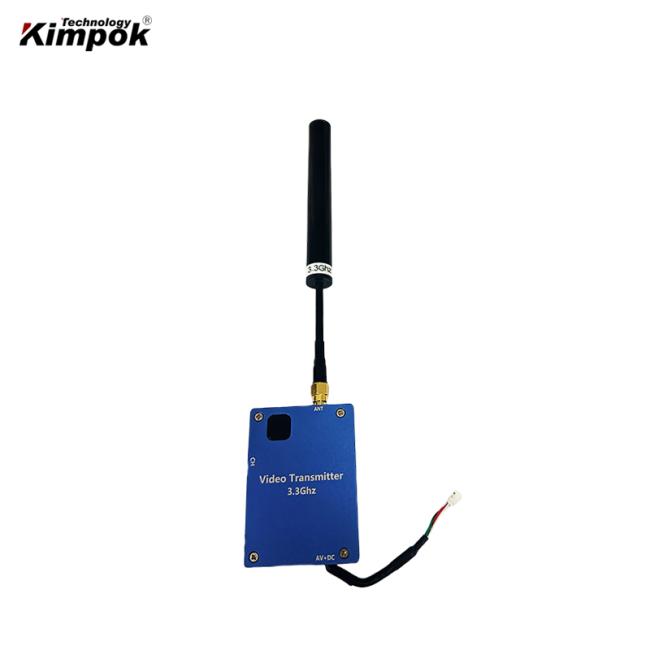

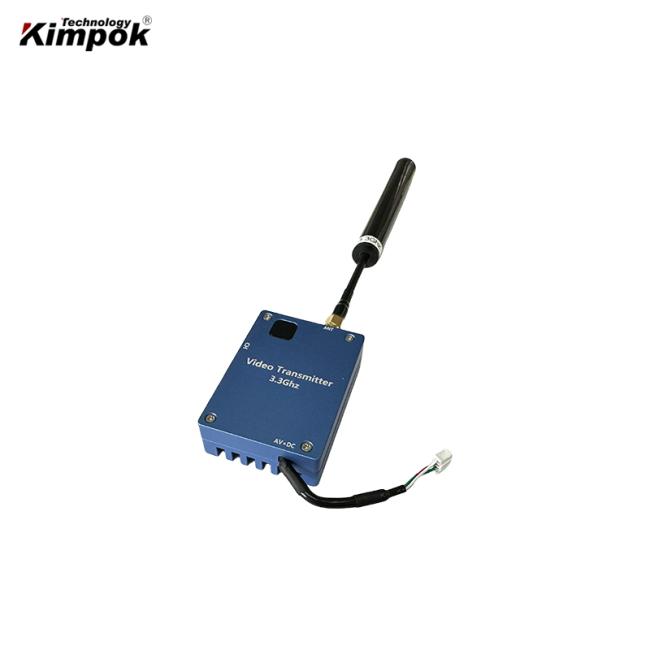

3.3Ghz FPV VTX Specification:
| Model number: | KP-3300TX2W |
| Voltage | DC 12V |
| Current | 1A |
| Modulation | FM |
| Frequency | 3.3Ghz |
| Channels | 8 channels |
| Frequency band | 3300Mhz, 3320Mhz, 3340Mhz, 3360Mhz, 3380Mhz, 3400Mhz, 3420Mhz, 3460Mhz |
| Transmit Power | 2 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 60g |
| Dimensions (L * W * H) | 72*46*18mm |
VRX Specification:
| Model number: | KP-RX3300 |
| Voltage | DC 12V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 3.3Ghz |
| Channels | 8 channels |
| Frequency band | 3300Mhz, 3320Mhz, 3340Mhz, 3360Mhz, 3380Mhz, 3400Mhz, 3420Mhz, 3460Mhz |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 79*47*20mm |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
