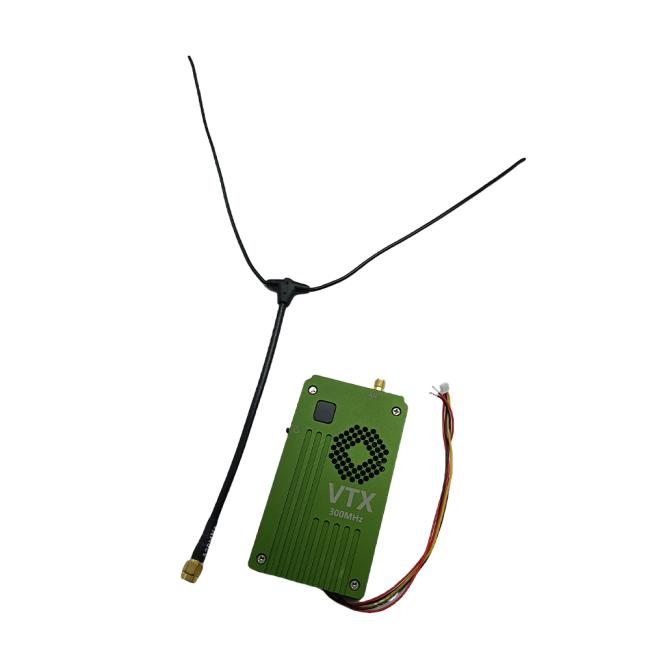

This is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the standard frequency of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 10~15km in the open area of the city, and up to 100km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).



Transmitter power:



Product name	Analog video transmitter
Voltage	DC 10V~36V
Current	1.6A
Modulation	FM
Frequency	300Mhz
Channels	8 channels
Frequency band	320Mhz, 340Mhz, 360Mhz, 380Mhz
Transmit Power	8 watt
Video Output	1 Vp-p(FM)
Temperature	-10℃ ~ +50℃
Antenna port	SMA female
Transmitter Weight	104g
Dimensions	98*55*18mm (without antenna)
