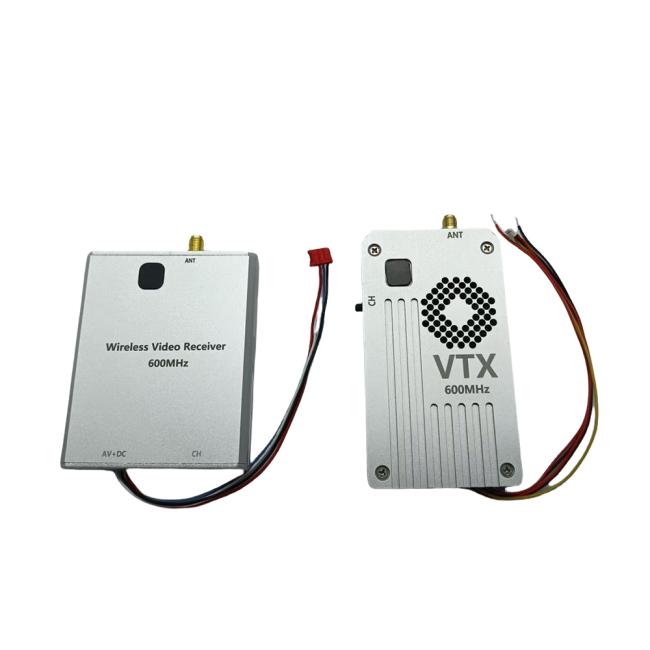

600M 5W Wireless Video Transmitter and Receiver FPV VTX VRX for Drone Digital Transmission
600M 5W Wireless Video Transmitter and Receiver FPV VTX VRX for Drone Digital Transmission
Description:
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.

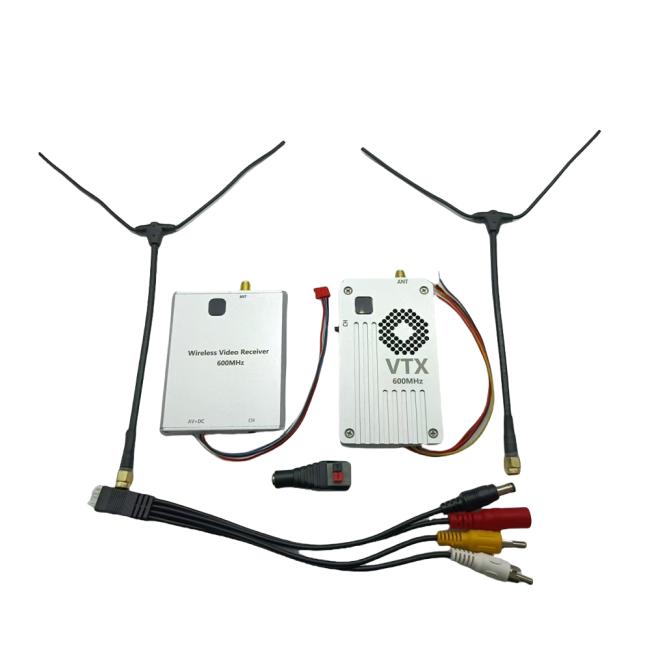

Equipped with a composite connection cable, it is easier to connect the power supply and camera.
The long range video transmitter and receiver is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (frequencies are customizable).
Transmiter Parameter:
| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 600Mhz |
| Channels | 8 channels |
| Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
| Transmit Power | 5 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
Receiver Parameter:
| Product | Analog video receiver |
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 600Mhz |
| Channels | 8 channels |
| Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm (antenna port not included) |
