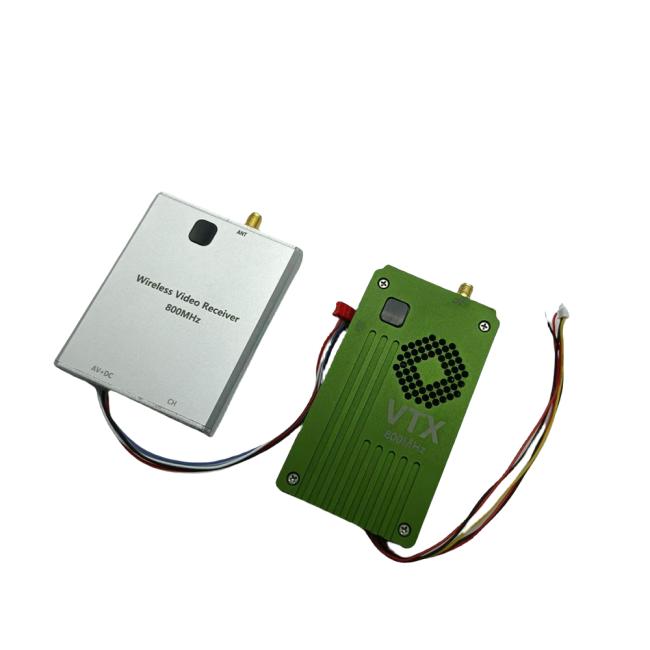

800Mhz 8W Drone Video Transmitter 800M Analogue FPV VTX VRX Video Sender
800Mhz 8W Drone Video Transmitter 800M Analogue FPV VTX VRX Video Sender
Description:
When the ground high-gain antenna is used, the transmission can be 10~15km in the open area of the city, and when the high-gain antenna is used, the air-to-ground LOS can be transmitted for 100km (the transmission distance is different in different environments, the specific transmission distance depends on the actual working environment).
The transmitter is beautifully made, made of special metal, but also equipped with high-speed fans, more conducive to heat dissipation, more suitable for long-term work.

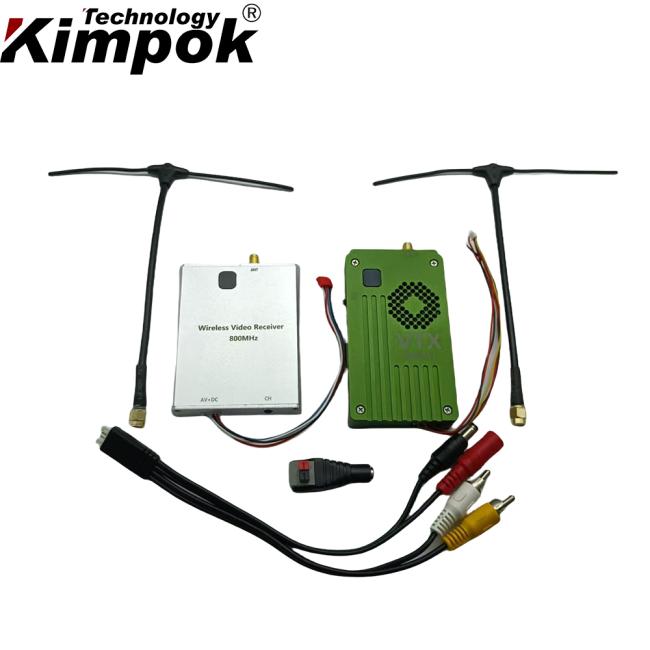

Equipped with composite connection cables for easier connection of power and camera.
Transmitter Parameter:

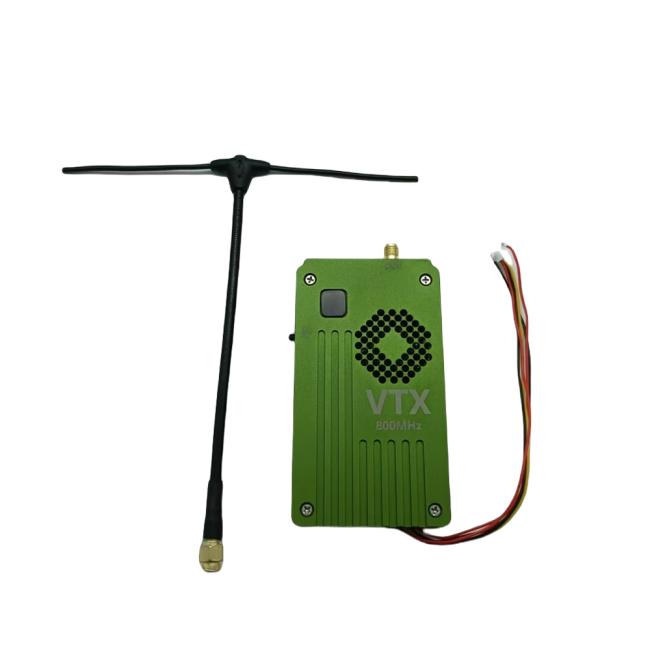

| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.6A |
| Modulation | FM |
| Frequency | 800Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) |
800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz |
| Transmit Power | 8 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |

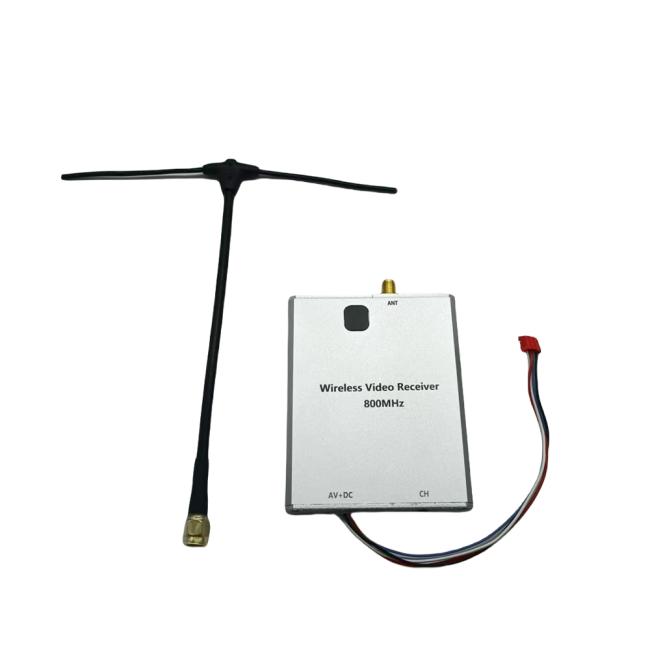

| Product | Analog video receiver |
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 800Mhz |
| Channels | 8 channels |
| Frequency band |
800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm (antenna port not included) |
