5.8G 4W Wireless Video Transmitter 4.9G-6G VTX 96CH Ultra Long Range Video Transmission
5.8G 4W Wireless Video Transmitter 4.9G-6G VTX 96CH Ultra Long Range Video Transmission
I.Specifications:
1. 4.9-6GHz 96 CH: 4867MHz-5945MHz
2. Max power: 4W (25mW/2000mW/4000mW, adjustable)
3. Input voltage: DC 7V-36V, supporting 2-8S battery input
4. Antenna connector: SMA Mother seat inner hole
5. Smart audio: IRC Tramp
6. Heat-dissipating method: aluminum alloy shell, heat sink&fan
7. Hole spacing: 20mm*20mm/ø2mm
8. Dimension: 53mm*28.85mm*16mm
9. Weight: 25.85g

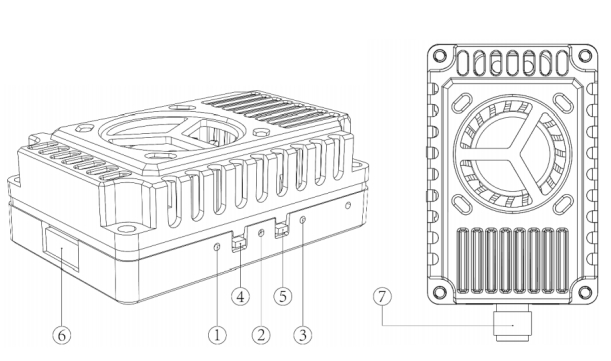

II.Function Introduction
1. Channel indicator: Red LED
2. Band indicator: Blue LED
3. Power indicator: Green LED
4. Band & Channel changer button
5. Power changer button
6. 1.0 6P Power connector
7. SMA Mother seat inner hole
III. Frequency Table
| Frequency Table | ||||||||
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band D | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band J | 4867 | 4884 | 4921 | 4958 | 4995 | 5032 | 5069 | 5099 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
