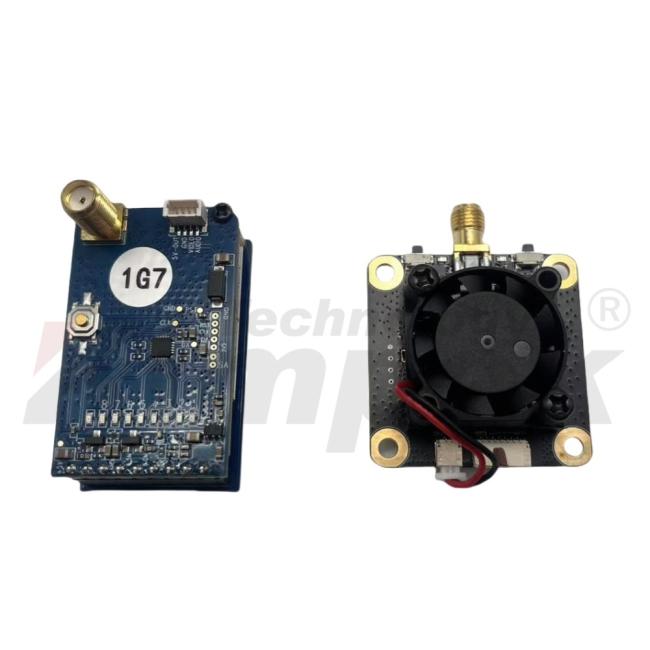

1.7Ghz 6W UAV Video Transmitter and Receiver for Skyzone FPV Goggles 1680-1960MHz VTX VRX

1.7Ghz 6W UAV Video Transmitter and Receiver for Skyzone FPV Goggles 1680-1960MHz VTX VRX

Video Transmitter Parameter:

I.Main Features

l Channels 8CH;

l Control Protocol: IRC Tramp, supports OSD tuning;

l Allows users to define custom frequencies within 1680-1960MHz using IRC Tramp tuning software;

l Power: PIT / 25mW / 800mW / 6000mW;

l Efficient DC/DC power input: 7-36V;

l Supports 5V voltage output;

l Supports installation on flight tower (30.5*30.5MM / M3 mounts)

II.Product Specifications

l Transmitter (Air Unit):

l Input Voltage: 7-36V DC (2-6S)

l Output Voltage: 5V/0.5A

l Weight: 21.5g (excluding antenna)

l Dimensions (L*W*H): 37mm*46mm*17.5mm (including SMA connector and fan)

l Video Format: PAL/NTSC

l Number of Channels: 8

lChannel Selection: Frequency adjustment button (short press to switch)

lTransmission Frequency: 8CH (see frequency table)

l Power Adjustment: Power button (short press to switch)

l Power Levels: 3 levels - 25mW / 800mW / 6000mW

lAntenna Connector: SMA (external thread, internal hole)

l Modulation Type: FM

Video Receiver Parameter:

I.Main Features

lChannels 8CH;

lSupport FatShark,Skyzone and other glasses VR headset display straight plug and analog

display and other connection use;

lHigh-sensitivity reception-97 dBm;

lEfficient DC/DC power input: 7-36V;

lSupport 5V voltage output;

lShort click switch channel;

II.Product Parameter

lReceiver (ground end):

lInput voltage:7-36V DC(2-6S)

lOutput voltage:5V/0.5A

lVideo system:PAL/NTSC

lNumber of channels:8 channels

lChannel selection:Short click switch frequency

lReceiving frequency: 1680-1960MHz

lSensitivity:-97 dBm(MAX)

lAntenna interface:SMA(outer screw inner hole)

lModulation type:FM

Frequency Table
