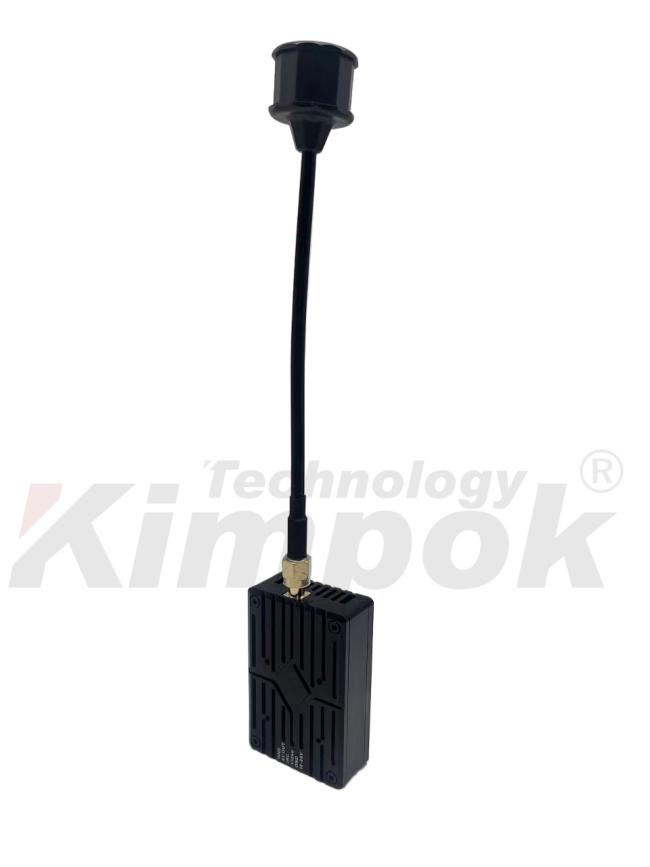

The ALV5000AC is a high-performance, wide-frequency analog Video Transmitter (VTX) designed specifically for FPV racing and long-range drones. It supports an extremely wide frequency range from 6.1GHz to 7.2GHz and offers multi-level adjustable transmission power from 25mW up to a powerful 5W (25mW/2.5W/5W). Its compact, lightweight design (only 56g) combined with an efficient heat dissipation structure ensures stable and clear video transmission even in demanding flight environments, making it ideal for professional FPV pilots.

• Ultra-Wide Frequency Support: Covers a broad spectrum from 6.1GHz to 7.2GHz, totaling 60 selectable channels.
• Multi-Level Power Adjustment: Supports four power levels: 25mW,  2.5W and 5W allowing flexibility for short-range practice or extreme long-range flights.
• Intelligent Thermal Protection: Built-in temperature protection circuitry automatically reduces the transmission power if the device temperature exceeds 100°C, ensuring VTX longevity and stability.
• Convenient Button Control: Features separate buttons for Channel/Band switching and Power level switching, with clear LED indicators for straightforward operation.
• Robust Cooling System: Employs an aluminum alloy shell, heat sink, and integrated fan for highly efficient active cooling, maintaining performance during high-power output.
• Reverse Polarity Protection: Equipped with power reverse polarity protection to prevent damage to the module from incorrect wiring.

• Exceptional Range Capability: The maximum 5W output power is ideal for challenging signal penetration and ultra-long-range FPV flying.
• High Reliability: The combination of a powerful output stage and superior cooling guarantees stable video output and reliability under extreme conditions.
• Versatile Compliance: The wide frequency range and multiple channel options provide greater adaptability to different regional frequency regulations.

• FPV Racing Drones
• Long-Range FPV Quads
• Professional Aerial Photography and Monitoring
