PEAK THOR T67 FPV VTX 64 Channels 6-7G 7 Watt Drone Video Transmitter for RC Drone

I. Transmitter Specifications

1. 7.2GHz 60CH: 6110MHz-7210MHz;

2. Max power: 7W(25mW,2.5W, 5W,7W adjustable);

3. Input voltage: DC 18V-36V, supporting 2-8S battery input

4. Antenna connector: SMA feamale seat inner hole

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 20mm*20mm/ø2mm

8. Dimension: 65.8mm*37.3mm*19.3mm

9. Weight: 48.15g

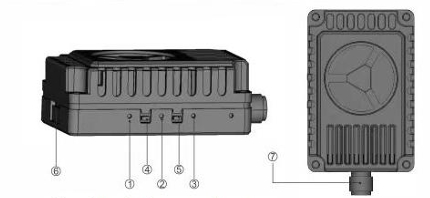

II. Function Introduction

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. SMA female seat inner hole

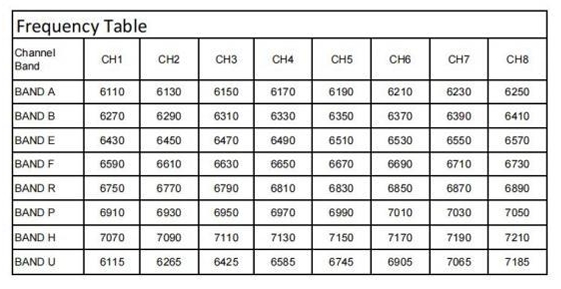

III. Frequency Table:

Note: This image transmission device has a temperature protection function. When the temperature of the image transmission device exceeds 100°C, the transmission power of the image transmission device will be reduced by one level. If the temperature remains above 100°C, the transmission power will be reduced by another level until it reaches the lowest power level (25mW). At this point, the temperature of the image transmission device will decrease. When the temperature drops to 95°C, the transmission power will return to the originally set power level.
