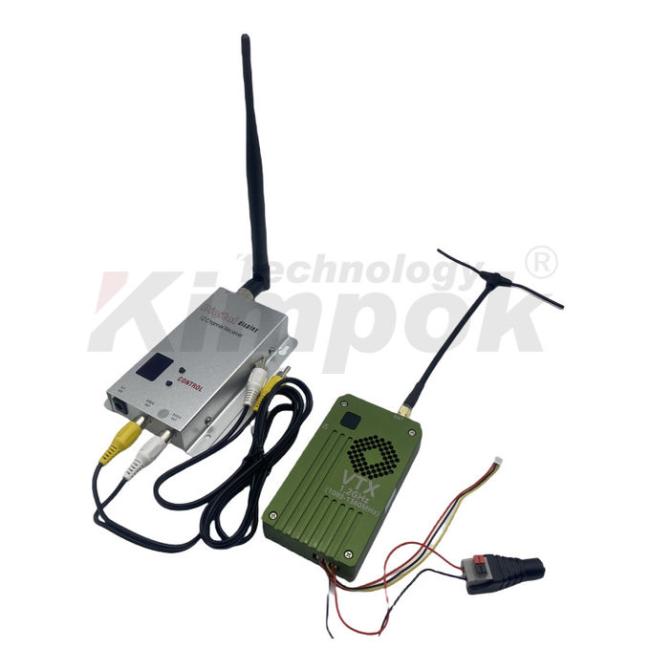

1.5GHz 8W Video Transmitter Receiver 1.5G VRX FPV Drone High Power VTX
Price:
Negotiation
MOQ:
1
Delivery Time:
3-7 work days
Brand:
Kimpok
Product Description
Product Description
This 1.5GHz 8W high power analog video transmitter and receiver set is designed for stable, long-range, and low-latency video transmission in FPV racing drones, UAVs, and other wireless video applications. The transmitter features durable metal construction with a built-in high-speed fan for optimal heat dissipation during extended operation.
Key Features
- 1.5GHz frequency band for reduced interference and stable signal transmission
- 8W high power output for long-range video transmission
- High-speed cooling fan for improved heat dissipation
- Multiple channels to meet different transmission requirements
- High-quality metal construction for durability
- Composite connection cable for easier power and camera setup
- Customizable frequencies for specific project needs
Advantages
- Long-distance stable video transmission for professional and recreational use
- Reliable performance with strong anti-interference capability
- Designed for continuous operation with efficient heat management
- Compatible with FPV racing drones, UAVs, and wireless CCTV systems
- Simple installation with standard SMA antenna connectors
Applications
- FPV racing drones and long-range aerial photography
- Industrial inspection drones requiring stable image transmission
- Wireless CCTV surveillance systems
- Model aircraft, helicopters, and unmanned ground vehicles
- Environmental monitoring and search-and-rescue operations
VTX Specifications
| Product name | Analog video transmitter |
|---|---|
| Voltage | DC 10v~36v |
| Current | 1.6A |
| Modulation | FM |
| Frequency | 1500MHz |
| Channels | 8 channels |
| Frequency band | 1505Mhz, 1530Mhz, 1555Mhz, 1580Mhz, 1605Mhz, 1630Mhz, 1655Mhz, 1680Mhz |
| Transmit power | 8 watt |
| Video output | 1 vp-p (fm) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | Smafemale |
| Transmitter weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
VRX Specifications
| Product | Analog video receiver |
|---|---|
| Voltage | DC 10v~18v |
| Receiving sensitivity | -85db |
| Modulation | FM |
| Frequency | 1500MHz |
| Channels | 12 channels |
| Frequency band | 1405Mhz, 1430Mhz, 1455Mhz, 1480Mhz, 1505Mhz, 1530Mhz, 1555Mhz, 1580Mhz, 1605Mhz, 1630Mhz, 1655Mhz, 1680Mhz |
| Video output | 1 vp-p (fm) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | Smafemale |
| Transmitter weight | 83g |
| Dimensions | 75*45*20mm (antenna port not included) |
