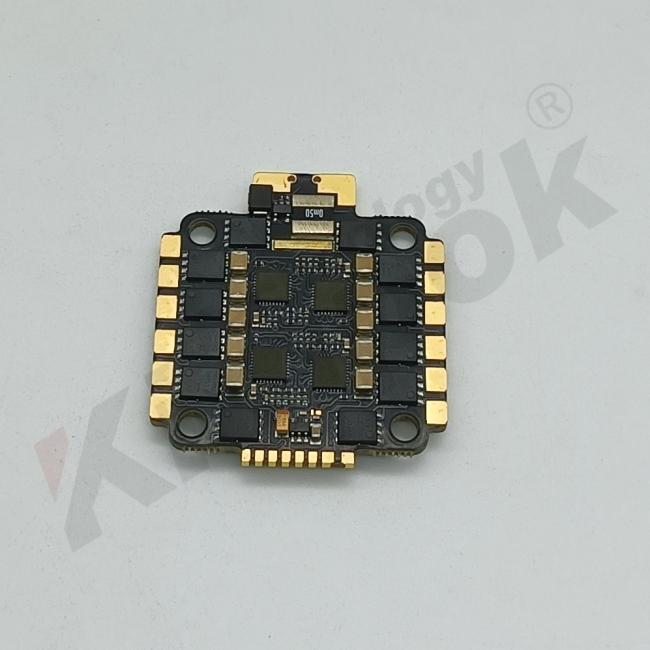

F405 80A Flight Controller Stack with STM32F405 MCU ICM42688-P Gyro and High Performance 80A ESC for FPV Drones
Price:
Negotiation
MOQ:
10
Delivery Time:
5-7 work days
Brand:
Kimpok
Product Description
F405 80A Flight Controller Stack with STM32F405 MCU and ICM42688 P Gyro High Performance Control System
High-performance FPV racing drone flight control system supporting HD image transmission for 10/13 inch drones.
Product Specifications
| Item | Description |
|---|---|
| Product | FPV Flight Controller Stack |
| Model Name | F405 80A Flight Control |
| Firmware | FLAOF405X8 |
| MCU | STM32F405 |
| IMU (Gyroscope) | ICM 42688-P |
| Input voltage | 4-6S Lipo (14.8-26.1V) |
| BEC | 5V/10V |
| Barometer | Build-in |
| Black box | 16MB |
| Size | 36*36*7.8mm |
| Installation hole distance | 30.5mm*30.5mm |
| Weight | 7g |
| UART serial port | 6 |
Electronic Speed Control (ESC) Parameters
- Continuous current: 80A
- Peak current: 100A (8S)
- Supported batteries: 3-8S Lipo
- ESC Firmware: 32bit
- Supported protocols: Oneshot125/Oneshot42/Mulishot modes Dshot 150/300/600/1200
Place of Origin: Guangdong, China
