3.3GHz 7000mW FPV VTX 20km Video Transmitter 3060~3500Mhz 64CH 2~6S battery
Price:
Negotiation
MOQ:
10
Delivery Time:
3 working days
Brand:
Kimpok
Product Description
3.3GHz 7W FPV VTX 20km Video Transmitter 3060~3500Mhz 64CH 2~6S battery
-
Extremely High Power: 7000mW (2W/7W adjustable) output is exceptionally powerful for consumer-grade video transmission, typically used for extreme long-range or penetration applications.
-
Broad Frequency Range: 3060 - 3500 MHz is a common band for HD video transmitters, though specific legal allocations vary by country.
-
Multi-Channel Support: 64 Channels provide flexibility to find a clear frequency and avoid interference.
-
IRC Support: Intelligent Remote Control (IRC) allows for remote adjustment of settings (like channel and power) from the receiver side, a crucial feature for FPV drones and similar applications.
Product Specifications
| Input Voltage | 7-26V |
| Extra Features | IRC 7000mW |
| Power Supply | 5V camera @ under 500mA max. |
| Output Power | 2000mW/7000mW |
| Microphone | Not supported |

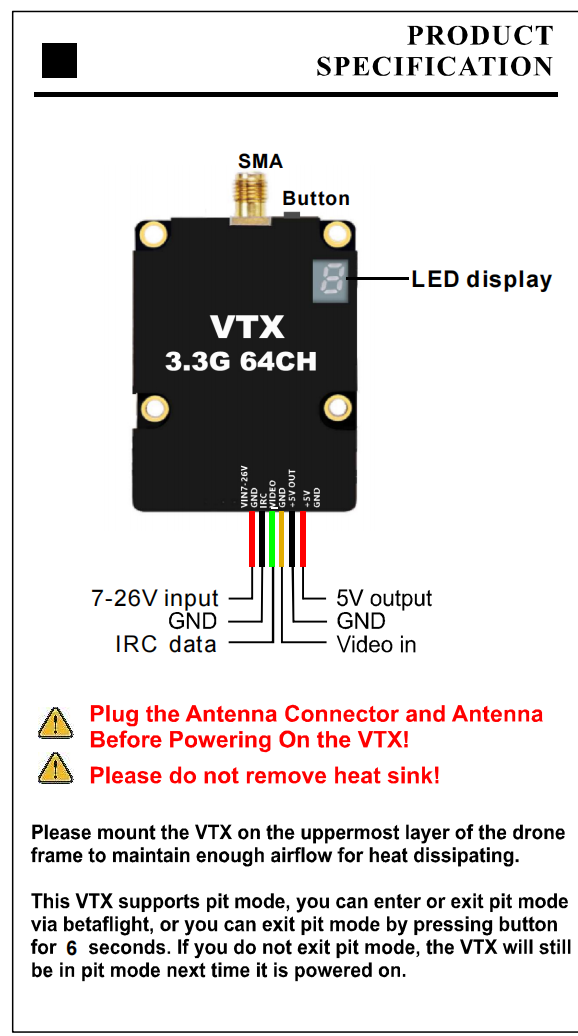

| Antenna Connector | SMA |
| Cable Connector | JST, 6Pin |
| Dimensions | 50×36×16mm, 30.5×30.5mm (hole) |
| Weight | 40.4g |
| Kit Contents | 1x VTX, 1x cable, 1x antenna |
Key Features
- Support IRC data transmission
- 2000/7000mW power switchable output
- Built-in cooling fan for thermal management
- OSD configuration using IRC protocol
- Wide 7-26V input range with 5V camera output

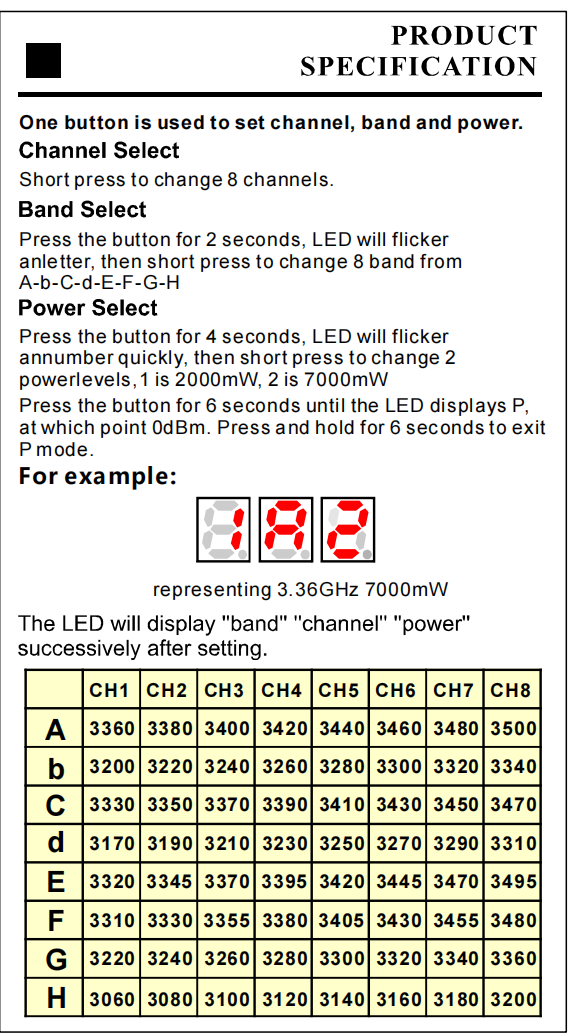

Button Control Operation
Channel Select
Short press to cycle through 8 available channels.
Band Select
Press and hold for 2 seconds until LED flickers a letter, then short press to select from 8 bands (A-b-C-d-E-F-G-H).
Power Select
Press and hold for 4 seconds until LED flickers a number rapidly, then short press to choose between two power levels: 1 (2000mW) or 2 (6000mW).
P Mode
Press and hold for 5 seconds until LED displays "P" for 0dBm output. Hold for 5 seconds again to exit P mode.
Protection Features
Slow Power On
3-second delay before power amplifier activation prevents damage from maximum instantaneous power surges.
Pit Mode
Full IRC data accessibility with dedicated Pit Mode support for safe operation.
Frequency Channels (3060-3500MHz)
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 3360 | 3380 | 3400 | 3420 | 3440 | 3460 | 3480 | 3500 |
| b | 3200 | 3220 | 3240 | 3260 | 3280 | 3300 | 3320 | 3340 |
| C | 3330 | 3350 | 3370 | 3390 | 3410 | 3430 | 3450 | 3470 |
| d | 3170 | 3190 | 3210 | 3230 | 3250 | 3270 | 3290 | 3310 |
| E | 3320 | 3345 | 3370 | 3395 | 3420 | 3445 | 3470 | 3495 |
| F | 3310 | 3330 | 3355 | 3380 | 3405 | 3430 | 3455 | 3480 |
| G | 3220 | 3240 | 3260 | 3280 | 3300 | 3320 | 3340 | 3360 |
| H | 3060 | 3080 | 3100 | 3120 | 3140 | 3160 | 3180 | 3200 |
