PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

I.Key Features:

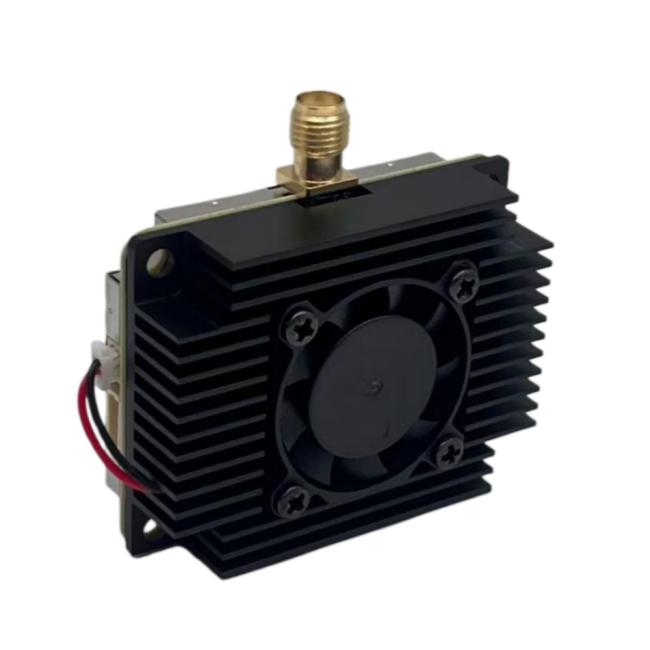

1. Support Smart audio

2. 25/200/500/1000/3000mWpower switchable

3. Built-in cooling fan

4. OSD configuration using smart audio

5. 9-28V input with 5V output

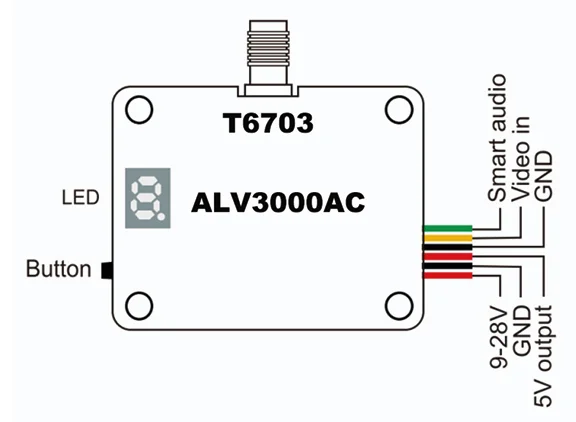

II.Button control Channel select mode

One button is used to set channel, band and power.

1.Channel Select

Short press to change 8 channels.

2.Band Select

Press the button for 2 seconds, LED will flicker an letter, then short press to change 8 band from

A-b-E-F-r-P-H-U

3.Power Select

Press the button for 3 seconds, LED will flicker an number quickly, then short press to change 5 power

levels.

After setting, led will display letter-number-number flickering twice, representing band-channel-power

level.

4.Pit Mode

The VTX is fully accessible via smart audio.

It supports Pit Mode.

​ ​ ​

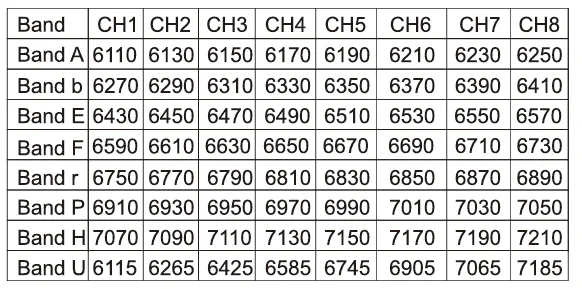

III. Frequency Table.

​
