5.8GHz 4900-6060MHz AKK Alpha16 16W VTX FPV Drone Accessory 25mW/1000mW/3000mW/5000mW/8000mW/16000mW 96 CH

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: 3-7 working days
Brand: AKK
Product Description

Kimpok Ultra Long Range Flight 5.8GHz 4900-6060MHz AKK Alpha16 16W VTX FPV Drone Accessory Video Transmitter Switchable Power 25mW/1000mW/3000mW/5000mW/8000mW/16000mW 96-Channels Shenzhen Made



Product Description

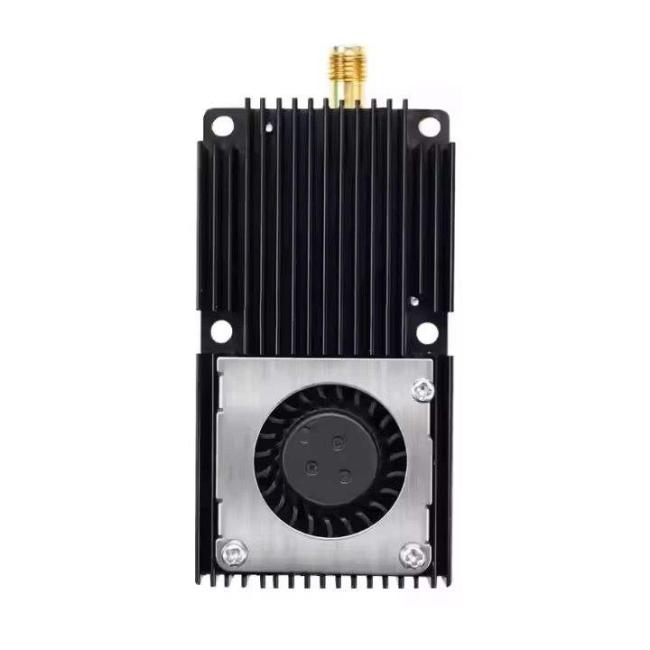

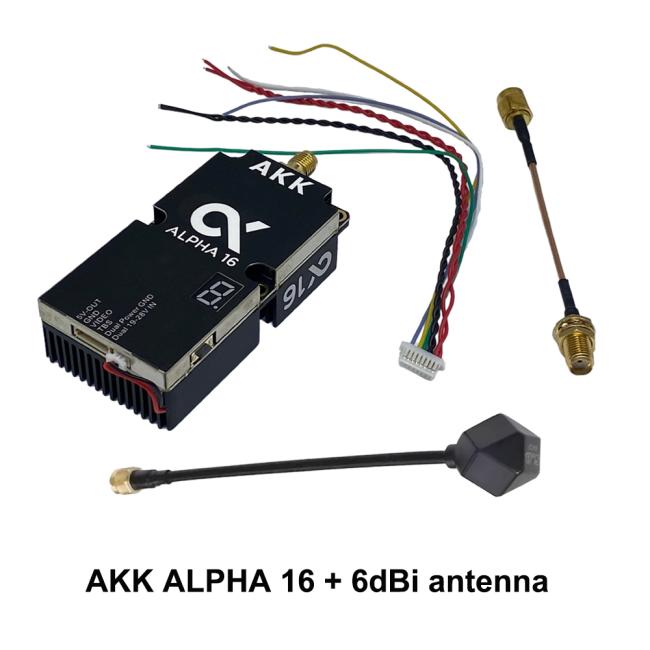

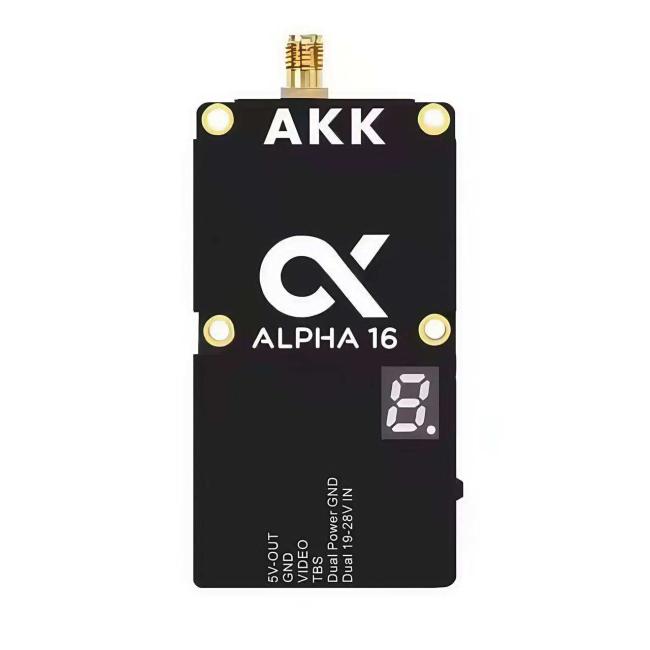

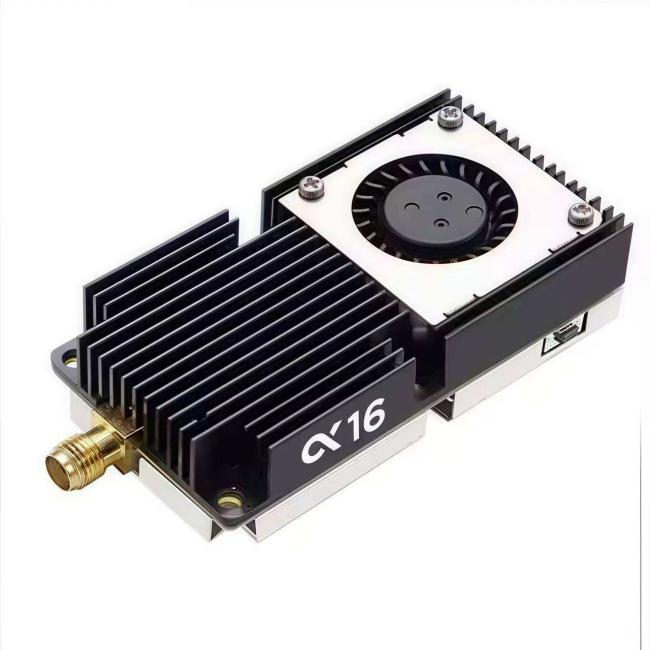

AKK Alpha16 16W VTX Video Transmitter Ultra Long Range 5.8Ghz 16000mW FPV VTX with Fan MIC Smart Audio for RC FPV Drone

Feature:

High transmission quality: Support HD 720P/1080P video transmission to ensure clear and smooth images.

High power output: It offers 16W of output power, ensuring a longer signal transmission distance and greater stability.

Long-distance transmission: It can reach a transmission distance of more than 1km in an open environment to meet the needs of long-distance operations.

Multi-frequency selection: Multiple frequencies (such as 5.8GHz) are supported, and users can choose the optimal channel according to environmental interference.

Multi-band support: Usually supports multiple bands (such as 5.8GHz), facilitating users to select the optimal frequency according to the environment.

Low latency: Using advanced coding technology, video latency is less than 30ms, suitable for real-time monitoring and control.

High-quality video transmission: Capable of transmitting high-definition video signals, reducing latency and enhancing the flight experience.

Compact and lightweight: Compact design, light weight, suitable for installation on various unmanned aerial vehicles, enhancing flight flexibility.

Heat dissipation design: Equipped with an effective cooling system to prevent overheating and ensure stable operation for a long time.

Rugged: The product design meets industry standards, with good anti-interference ability and weather resistance.



Frequency Table, 96CH

5.8G Frequency Table
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5474 5492 5510 5528 5546 5564 5582 5600
Band B 5362 5399 5436 5473 5510 5547 5584 5621
Band E 5325 5348 5366 5384 5402 5420 5438 5456
Band F 5129 5159 5189 5219 5249 5279 5309 5339
Band R 4990 5020 5050 5080 5110 5140 5170 5200
Band P 5333 5373 5413 5453 5493 5533 5573 5613
Band L 4900 4940 4921 4958 4995 5032 5069 5099
Band U 5960 5980 6000 6020 6030 6040 6050 6060
Band O 5865 5845 5825 5805 5785 5765 5745 5725
Band H 5733 5752 5771 5790 5809 5828 5847 5866
Band T 5705 5685 5655 5645 5885 5905 5925 5945
Band N 5740 5760 5780 5800 5820 5840 5860 5880
