FPV Goggles 800D 5" 800×480 LCD 5.8G 40CH Diversity Receiver DVR Recording Detachable Design for FPV Racing Drone

FPV Goggles 800D 5" 800×480 LCD 5.8G 40CH Diversity Receiver DVR Recording Detachable Design for FPV Racing Drone

Product Description:

Key Selling Points

5" High-Definition LCD Screen: 800×480 resolution, 300cd/m² high brightness, 82° wide viewing angle

5.8G 40CH Diversity Receiver: Dual antennas, RaceBand supported, stable signal & anti-interference

Built-in DVR Recording: Supports up to 32GB TF card, records clear flight videos in real time

Detachable & Ergonomic Design: Lightweight, adjustable headband, fits all face shapes

Multi-Function & Wide Compatibility: AV input/output, 8-language menu, ideal for FPV racing & freestyle

Product Description

FPV Goggles 800D is a cost-effective, high-performance headset designed for FPV drone pilots, combining a high-brightness display, diversity reception, DVR recording, and ergonomic wearability. It delivers an immersive first-person view with ultra-low latency, perfect for racing, freestyle, and long-range flights.

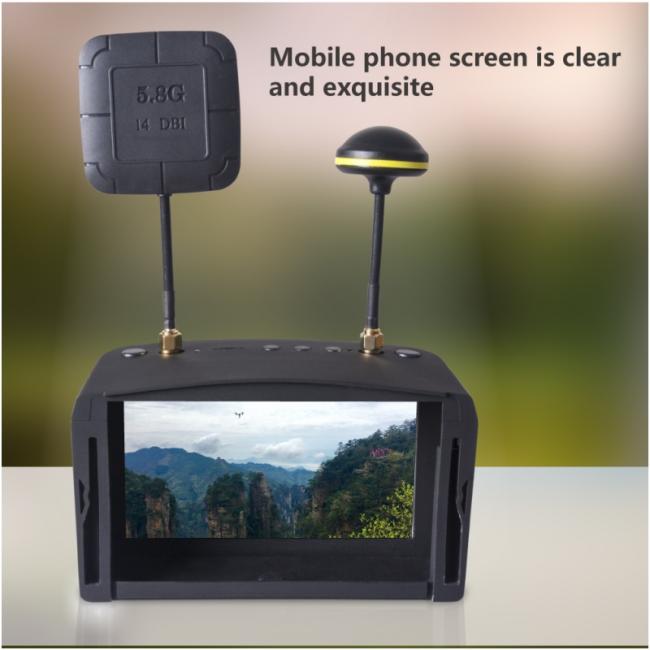

Equipped with a 5-inch 800×480 LCD screen (16:9 aspect ratio, 300cd/m² brightness), it ensures clear visibility even in strong sunlight. The 82° ultra-wide viewing angle brings a realistic, immersive flying experience.

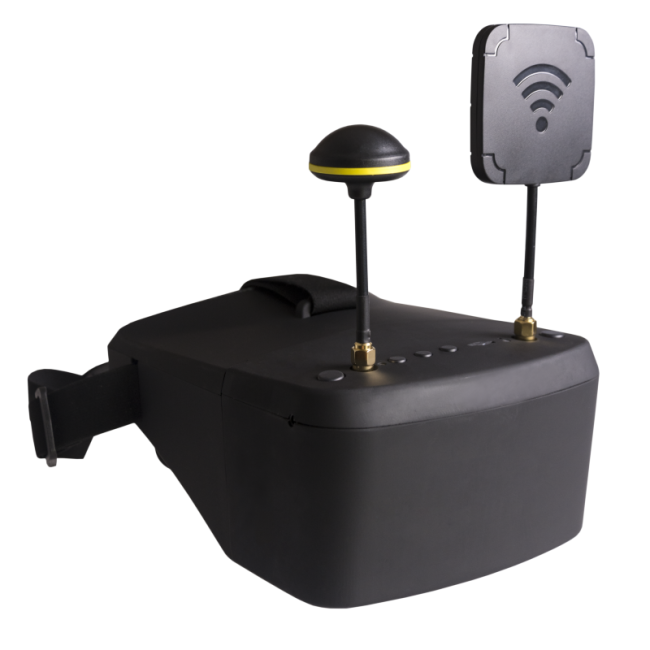

The integrated 5.8GHz 40-channel diversity receiver (with RaceBand) uses dual RP-SMA antennas to enhance signal stability, reduce dropout, and support automatic frequency searching. It is fully compatible with all standard 5.8G analog FPV systems.

Built-in DVR function supports real-time video recording (AVI format, MJPEG compression) up to 720×576 resolution via TF card (max 32GB, Class 10 recommended). You can record and review every flight moment easily.

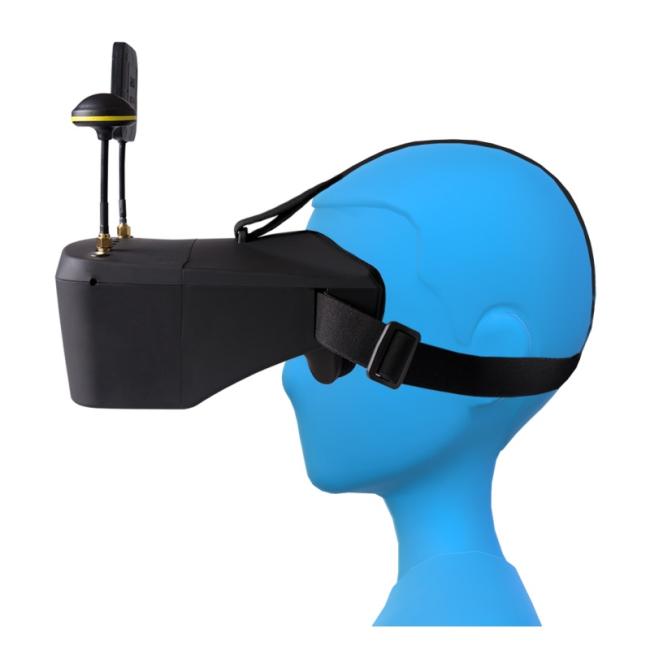

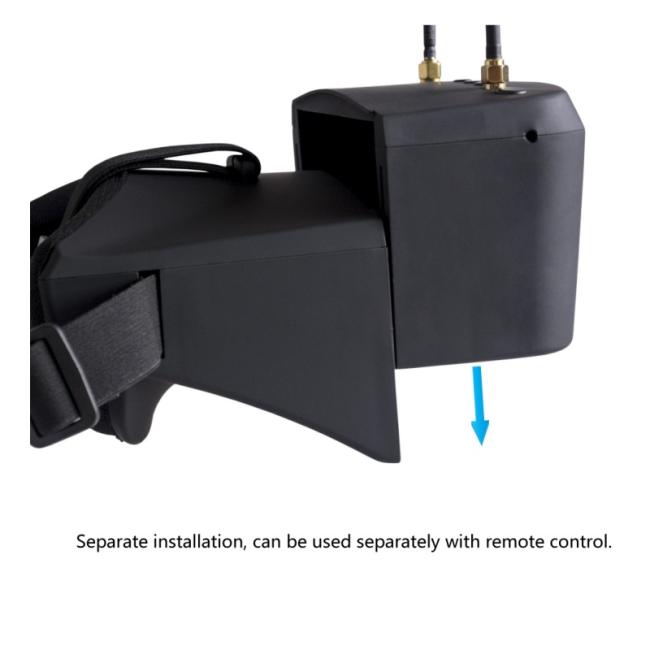

Featuring a detachable design and ergonomic frame, the goggles are lightweight and comfortable for long-time wearing. The adjustable headband fits various face shapes, and the detachable display unit allows for flexible use.

Additional highlights include AV input/output (connect external cameras or headphones), 8-language menu (English, German, French, Spanish, Italian, Chinese, Russian, Japanese), and built-in rechargeable battery for 2.5–3 hours of continuous use.

Whether you are a beginner or a professional pilot, the 800D FPV goggles offer excellent performance at a budget price, making it your best choice for FPV flying.

Specifications

Item Parameter

Model 800D FPV Goggles

Screen 5" LCD, 800×480, 16:9, 300cd/m²

Viewing Angle 82° ultra-wide angle

Receiver 5.8GHz, 40CH (RaceBand), diversity dual antennas

Antenna Connector 2× RP-SMA male

DVR Supports TF card up to 32GB, AVI/MJPEG, 30fps

Latency ＜20ms low latency

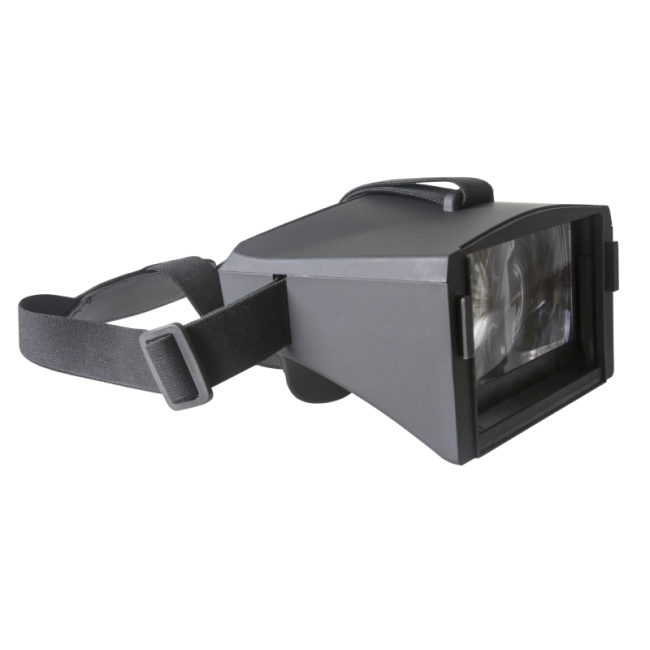

Lens 2.8X Fresnel lens, 92% transmittance

Battery 7.4V/1430mAh, 2.5–3 hours working time

Interface DC055 charging, AV in/out, TF card slot

Language 8 languages available

Dimension 180×145×82mm

Weight About 280g

Application FPV racing, freestyle, long-range drones

Package Includes

1 × 800D FPV Goggles

1 × Omnidirectional Antenna

1 × Patch Antenna

1 × USB Charging Cable

1 × AV Input Cable

1 × User Manual

1 × Carrying Case
