Product Description:

RX3364PRO Features

1. 3.3GHz frequency band ranging from 3060MHz to 3500MHz with 64 preset channels and RSSI output function.

• Receiving sensitivity: 99-101dBm, powered by standard DC 5V input.
• Ultra-thin dimension: 37×26.3×1.6mm, net weight only 4.1g.
• Standard CVBS analog video output for FPV receiving system.

RX3364PRO Advantages

1. 64 abundant channels effectively avoid frequency interference during multi-drone flights.

• Built-in RSSI signal output supports real-time signal strength detection for convenient antenna alignment and flight distance testing.
• 99-101dBm high sensitivity ensures stable long-range video reception with less screen noise.
• Universal 5V power supply is compatible with most FPV goggles and drone power circuits for easy wiring.
• Slim lightweight design saves installation space, perfect for embedded upgrade without increasing extra load.

Similarities & Differences between RX3364 and RX3364PRO VRX Module

Ⅰ. Similarities

Same RF specification: 3.3GHz frequency band (3060-3500MHz), total 64 preset receiving channels, receiving sensitivity at -95dBm.

Uniform working requirement: DC 5V input voltage, adopt FM+PLL demodulation for analog CVBS video output.

Consistent basic application: designed for 3.3GHz FPV drone analog image receiving, support NTSC/PAL video format.

Identical core power consumption (≈380mA) and working temperature range (-10℃ ~ +65℃).

Ⅱ. Differences

1. Functional Difference

RX3364PRO: Equipped with independent RSSI signal detection pin for real-time signal strength testing and antenna calibration.

Standard RX3364: No reserved RSSI output function, only single video & optional audio signal pins.

2. Physical Dimension & Weight

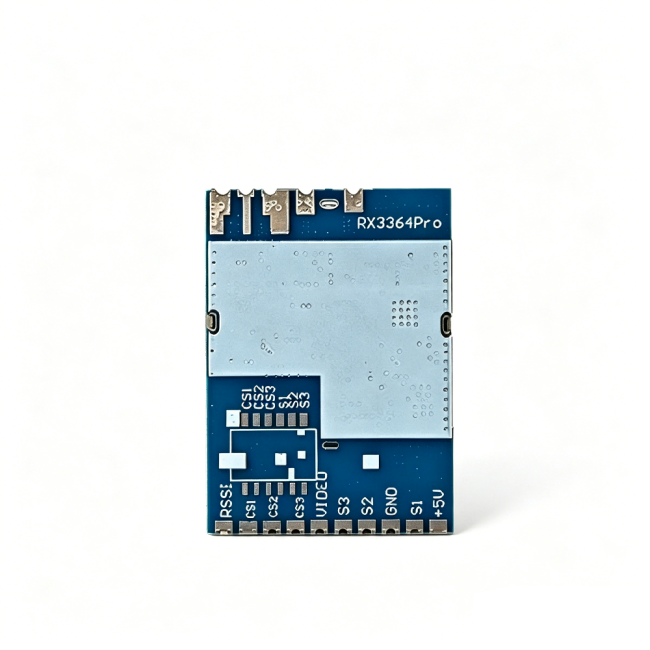

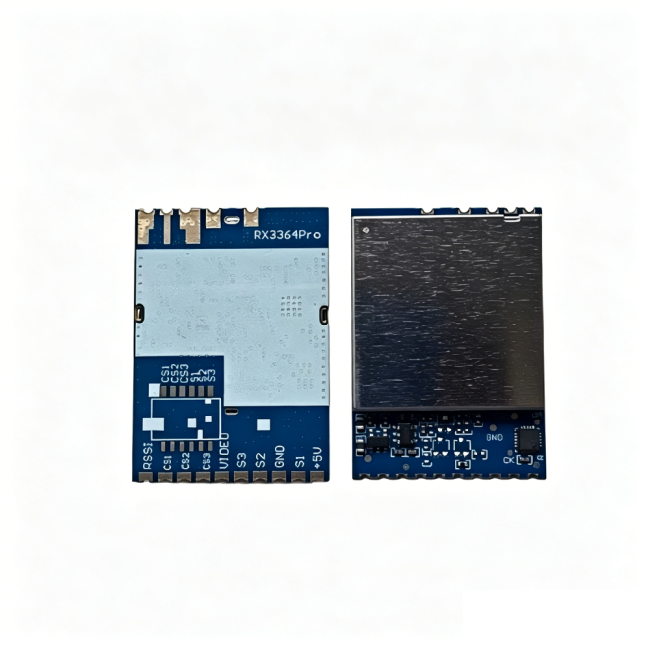

RX3364PRO: 37×26.3×1.6mm, net weight 4.1g, ultra-thin upgraded PCB layout.

Original RX3364: Thicker standard PCB with bigger outline size, heavier than PRO version.

3. Circuit & Performance Upgrade

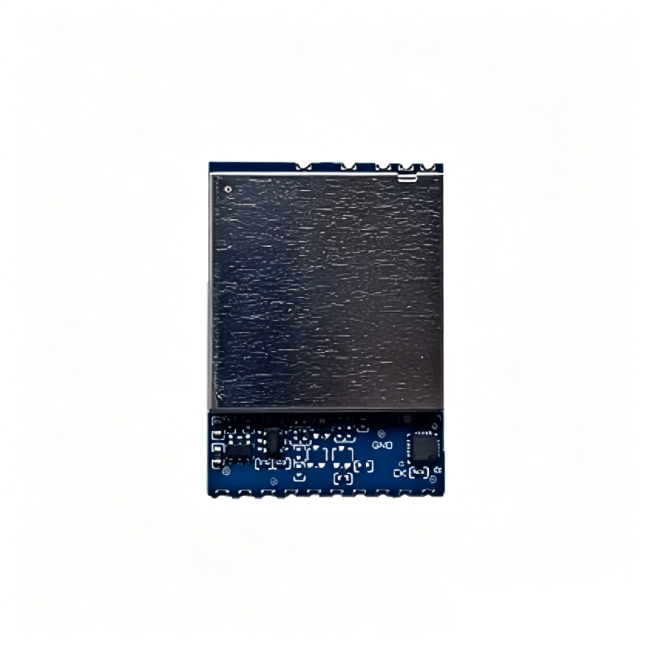

RX3364PRO: Optimized shielding circuit, stronger anti-interference for multi-machine crowded flight; improved PCB filtering to reduce image noise.

Regular RX3364: Original basic circuit design without enhanced anti-interference and RSSI peripheral circuit, lower cost positioning.

4. Application Orientation

RX3364PRO: For professional long-range FPV, users need signal monitoring function.

RX3364: Budget basic receiving for entry-level DIY modification without RSSI demand.
