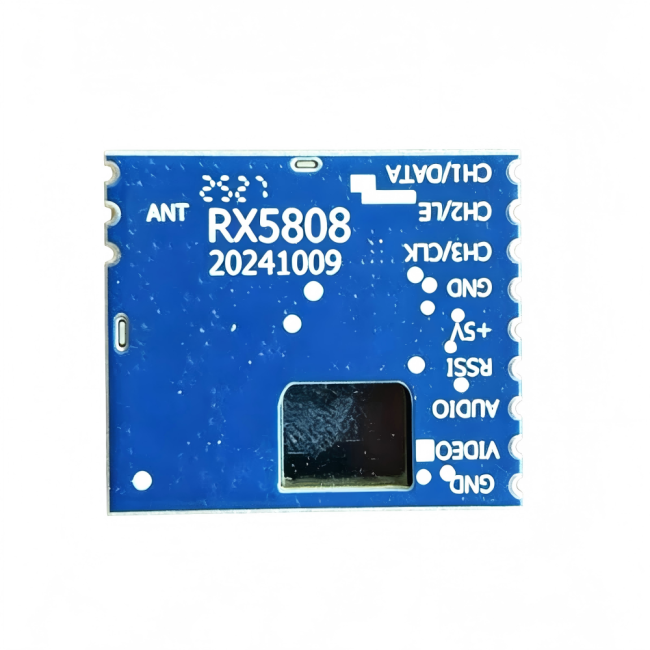

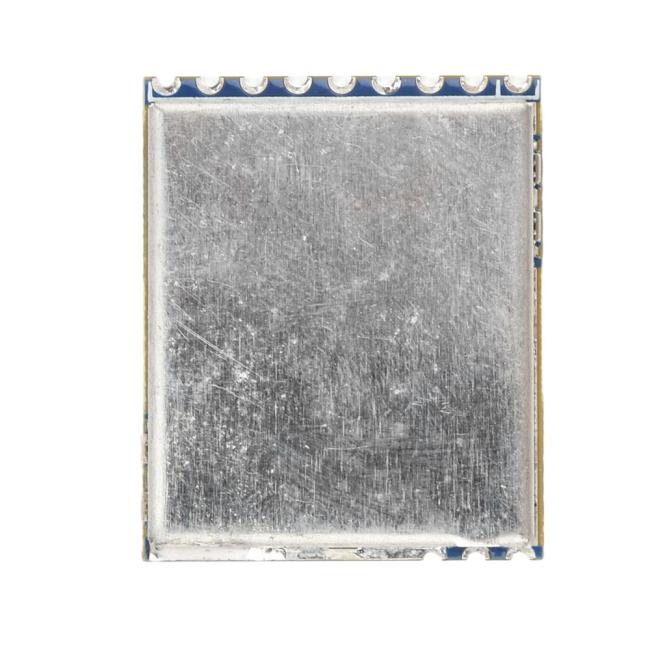

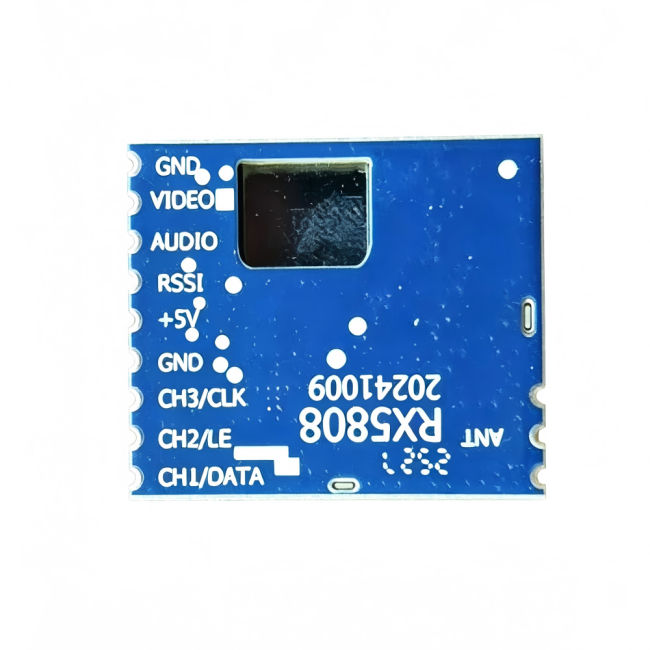

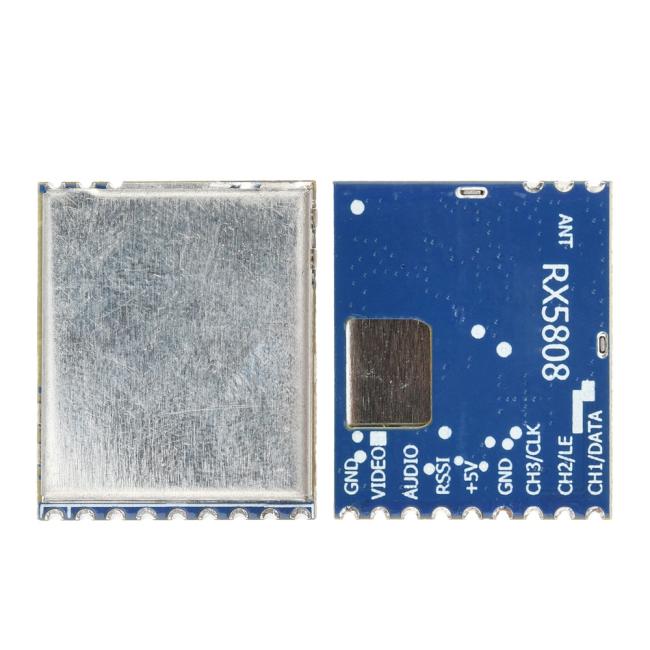

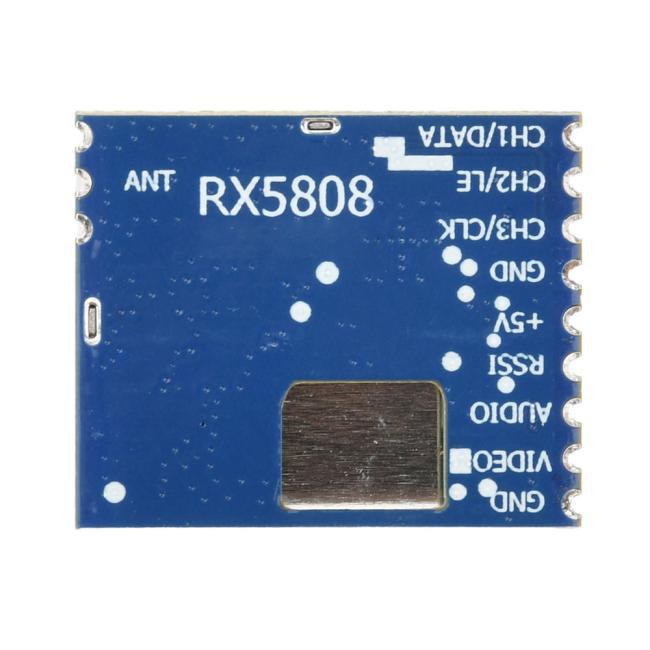

5.8Ghz 5645-5945MHz VRX module RX5808 Drone Accessory Video Receiver Module 4.1g FPV 96CH 95dBm High Receiving Sensitivity

5.8Ghz 5645-5945MHz VRX module RX5808 Drone Accessory Video Receiver Module 4.1g FPV 96CH 95dBm High Receiving Sensitivity

Product Description:

RX5808 Features

1. 5.8GHz frequency range: 5645–5945MHz, pre-set 96 receiving channels.

• Receiving sensitivity: -90dBm, DC 5V working voltage.
• Only CVBS video output, no built-in audio receiving function.

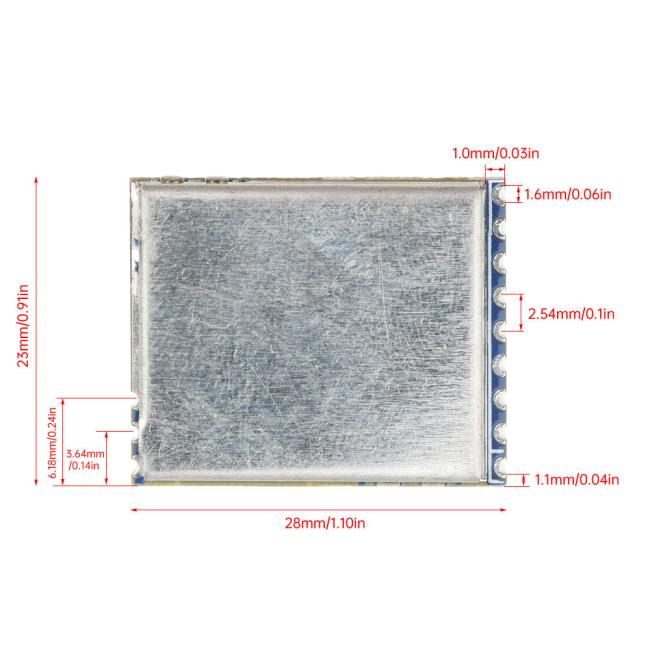

• Dimension: 28×23×3.5mm, net weight: 4.1g.

RX5808 Advantages

1. 96 diversified channels efficiently avoid frequency conflict in multi-craft flight.

• -90dBm high sensitivity ensures stable clear video reception for FPV racing.
• Simplified circuit reduces cost, ideal for budget-focused users.
• Standard 5V power widely matches FPV goggles and drone power system for easy installation.
• Mini and lightweight structure fits built-in modification without extra load.

Differences Between RX5808A(with Audio) & RX5808(without Audio)

1. Functional Difference

RX5808A with Audio: Equips independent audio output circuit, supports synchronous audio + CVBS video output to restore flight sound.

RX5808 without Audio: Only CVBS analog video output, no audio receiving & sound output function.

2. Hardware & Application Difference

The audio version(RX5808A) reserves audio pinout for wiring to FPV goggle speaker modules; the non-audio version(RX5808) omits relevant audio components and pins.

Audio model(RX5808A) suits users needing immersive audio experience; non-audio model(RX5808) is for basic video-only receiving to cut cost.

3. Size & Weight Note

Both versions share identical specs: 5.8GHz 5645-5945MHz,96CH,-90dBm,5V,4.1g,28×23×3.5mm in dimension, same RF receiving performance.
