Kimpok 5.8GHz RX5808A Wireless Video Receiver Module with Audio, 96CH, 5645-5945MHz Frequency Range, -95dBm Receiving Sensitivity

Product Description:

RX5808A Features

1. 5.8GHz working band covering 5645-5945MHz, preinstalled with total 96 receiving channels.

• Receiving sensitivity: -90dBm, DC 5V standard operating input voltage.
• Built-in audio output function besides regular CVBS analog video output.
• Compact dimension: 28×23×3.5mm, lightweight net weight only 4.1g.

RX5808A Advantages

1. Abundant 96 channels efficiently avoid frequency interference in multi-machine flight environment.

• -90dBm reliable sensitivity ensures stable image reception in conventional FPV flight distance.
• Integrated audio function realizes synchronous sound and video transmission for immersive flight experience.
• Universal 5V power supply matches mainstream FPV goggles and drone power circuits for easy installation.
• Small-size and ultralight design saves inner space, ideal for built-in replacement and DIY modification without extra load.

Differences Between RX5808A(with Audio) and RX5808(without Audio)

1. Functional Difference

RX5808A with Audio: Equips independent audio output circuit, supports synchronous audio + CVBS video output to restore flight sound.

RX5808 without Audio: Only CVBS analog video output, no audio receiving and sound output function.

2. Hardware and Application Difference

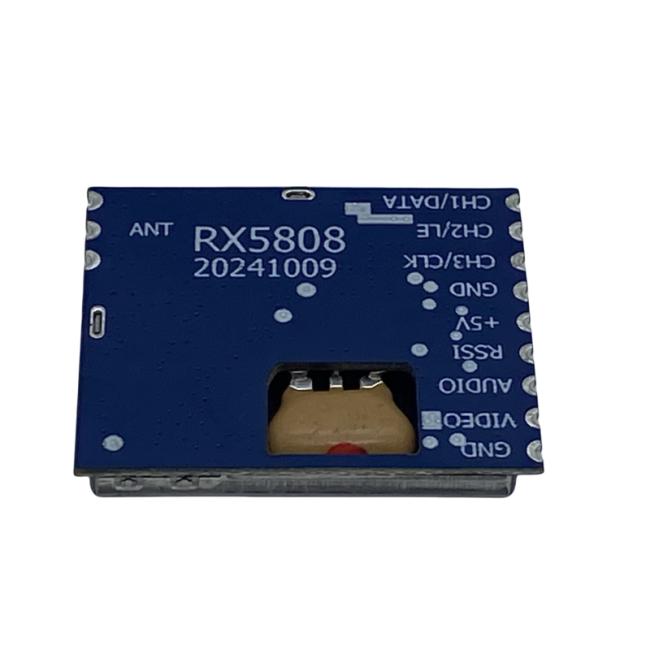

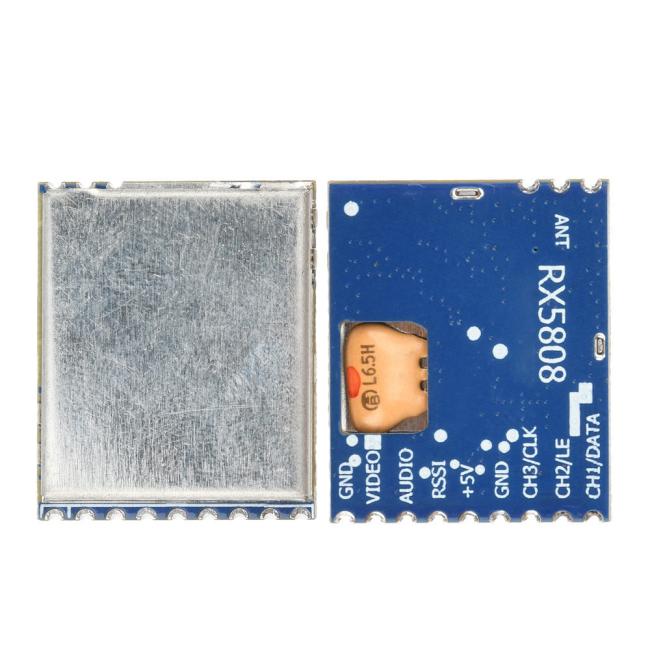

The audio version reserves audio pinout for wiring to FPV goggle speaker modules; the non-audio version omits relevant audio components and pins.

Audio model suits users needing immersive audio experience; non-audio is for basic video-only receiving to cut cost.

3. Size and Weight Note

Both versions share identical specs: 5.8GHz 5645-5945MHz,96CH,-90dBm,5V,4.1g,28×23×3.5mm in dimension, same RF receiving performance.
