AKK FPV VTX TX8000AC 5.8GHz 4.9-6.1 GHz 8W Video Transmitter 96CH TBS Control
AKK FPV VTX TX8000AC 5.8GHz 4900-6060 MHz Ultra Long Range 8W Drone Video Transmitter 96CH TBS Control
General Specifications
Manufacturer: AKK
Model Number: TX8000AC
Model: Ultra Long Range 8W 4.9G-6.1G 96CH
Weight: 25 g
Input Voltage: 14.6-28 V
Output Power: 25/1000/3000/5000/8000 mW

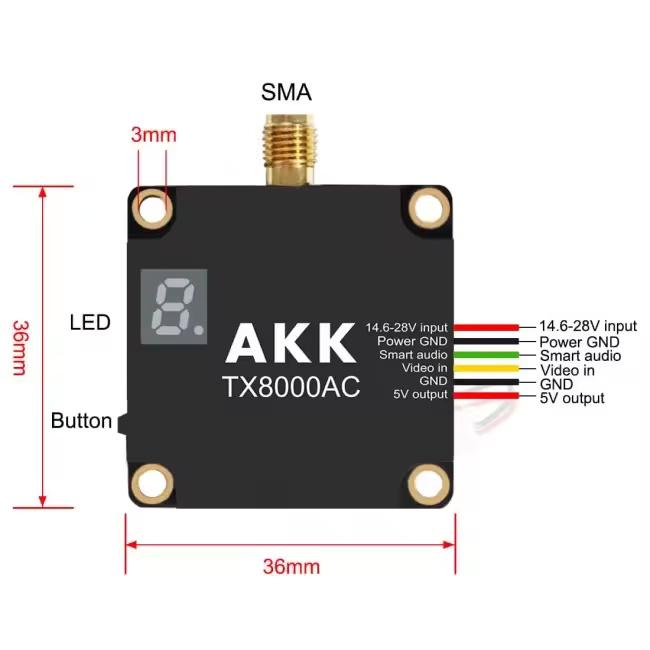

Dimensions: 36 x 36 mm
Country of Origin: China
Type: Analog
Product Features
World's first small-form-factor 8W VTX
Adjustable output power: 25/1000/3000/5000/8000 mW
Ultra-wide frequency range with 96 channels from 4900 to 6060 MHz
Equipped with a cooling fan and heatsink
Recommended for use with an AKK tube antenna or diamond antenna
AKK 5 GHz antenna operates in the 4900-5500 MHz frequency range
AKK 5.8 GHz antenna operates in the 5500-6060 MHz frequency range
| Parameter | Specification |
|---|---|
| Frequency | 5.8 GHz (4900-6060 MHz) |
| Output Power | 8W |
| Channels | 96 CH |
| Data protocol | smart audio |
| Input Voltage | 7-36V (14.6V to 28V recommended) |
|
Power supply
|
5V Camera @ under 500mA max.
|
| Weight | Approx. 25g (excluding antenna) |
|
Antenna connector
|
SMA |
|
Cable connector
|
JST, 6pin
|
| Kit Contents |
1x VTX, 1x cable, 1x pigtail
|
Ideal for FPV racing drones, RC quadcopters, aerial photography drones, and various drone competitions and recreational activities.
