Airborne LTE 4G Base Station For Emergency Rescue And Disaster Response Comms
Airborne 4G LTE Base Station for Emergency Recsue and Disaster Response Comms
Descryption

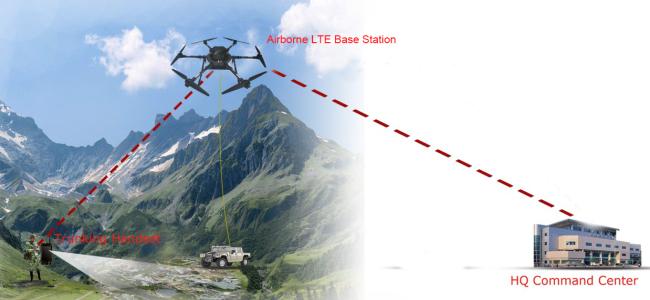

Patron-X10 from IWAVE is an advanced airborne LTE compact eNodeB products with special design light weight and small size for drone. It is always deployed on a tethered drone for ensuring 24hours 4G LTE network during emergency event.
Patron-X10 operates in TDD mode and provide users with multimedia trunking, video and voice, and video surveillance efficiently and cheaply.
Fast deployed on tethered drone within 10minutes and cover more than radius 20km area. The solution significantly improves dispatch efficiency and quick response capability at lower cost.
Key Features
|
Plug and Play Solution All-in-one compact design: Integrates the functions of a Core Network (CN) device, base station, and dispatching system into a compact chassis. Rapid Deployment 10mins fast deployment: Ideal for fast deploy a critical communication system in the field where the public communications network is down or events and emergency situations experience weak signals. Flexibility Multiple frequencies 400MH/600MHz/1.4GHz/1.8GHz Rugged devices with more than 20km radius coverage. High Performance provides voice and dispatching, offers video uploading and simultaneous distribution to all members of the same call group, and is applicable to many industries. Wide Coverage Cover radius≥20km area when deployed on a tethered drone in air with 100meters above ground |
 |
â—No need on indoor equipment
â—Easy maintenance and quick installation
â— Supports 5/10/15/20 MHz bandwidth
â—10Watts and 15wattts RF power for option
â—Ultra Broadband Access 80Mbps DL and 30Mbps UL
â—200 active users
Application
â—Public Safety Management
â—VIP Security
â—Disaster Relief
Specification
| SPECIFICATIONS | |
| LTE Mode | TDD |
| Frequency Bands | 400Mhz: 400Mhz-430Mhz |
| 600Mhz: 566Mhz-626Mhz, 606Mhz-678Mhz | |
| 1.4Ghz: 1447Mhz-1467Mhz | |
| 1.8Ghz: 1785Mhz-1805Mhz | |
| Channel Bandwidth | 5/10/15/20 MHz |
| Max Output Power | 15Watts |
| Power Supply | 48V DC or 220V AC |
| Power Consumption | 150watts |
| Receive Sensitivity | < -104dBm |
| MIMO | 2x2 |
| Installation | Drone Mount |
| Dimensions | 330*260*110mm |
| Weight | 5.5kg |
| Users | 200 |
| Working Temperature | -20°C ～60°C |
| Throughput | DL: ≤80mbps |
| UL: ≤30mbp | |
