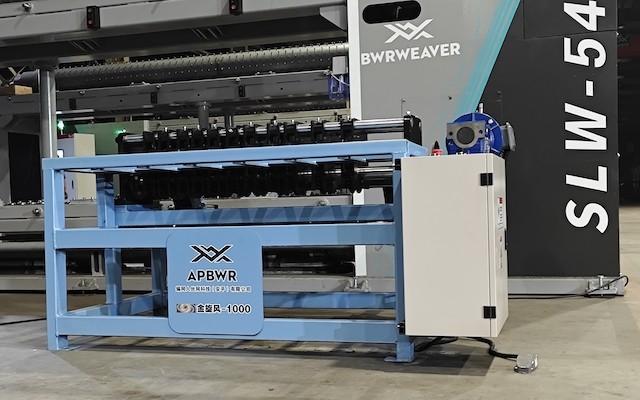

High Output Gabion Production Line 4M Automatic Edge Folding Machine
4M Automatic Edge Folding Machine
1.Edge Folding Machine Key Components:
1. Frame Assembly: Robust load-bearing structure providing foundational support.

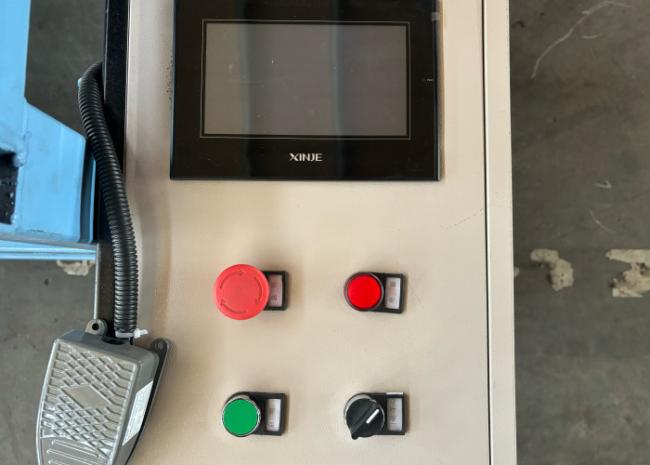

2.Electrical Cabinet: Centralized control unit for system operations.
3.Material Feeding Mechanism: Automated system delivering mesh sheets into the workstation.
4.Mesh Pressing Unit: Hydraulic/pneumatic clamps securing materials during processing.
5.Rolling Mechanism: Precision rollers forming and finishing the beaded edges.
2. Edge Folding Machine Working Process:
1. Material Loading: Automated feeding positions metal sheets.
2. Clamping & Alignment: Hydraulic systems secure and center the workpiece.
3. Edge Folding: Precision rollers form uniform folds (adjustable angle/depth).
4. Quality Check; Sensors verify dimensional accuracy.
5. Unloading: Finished parts are ejected for stacking.
3.Edge Folding Machine Technical Specifications:
Wire Diameter: ≤3mm
Mesh Sizes: Adjustable (e.g., 60x80 mm to 130x160 mm).
Production Speed: folding 10 pieces of mesh per minute, depending on the model and complexity of the product.
Motor Power: 7.5kw
Crimping Angle: Forward Rotation: 306°–720° , Reverse Rotation: 180°–360°
4. Edge Folding Machine Key Features:
High Automation: Reduces manual intervention and boosts production efficiency through automated operation.
Precision Crimping: Ensures uniform and secure edge crimping for consistent product quality.
Material Versatility: Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire).
User-Friendly Interface: Intuitive controls enable easy and quick operation.
Durability: Built with premium materials to withstand prolonged heavy-duty use.
| Edge Folding Machine Parameter Configuration Table | ||
| 1 | Standard weaving width | 4000mm |
| 2 | Wire diameter range | ≤3mm |
| 3 | Crimping Angle | - Forward Rotation: 306°–720° - Reverse Rotation: 180°–360 |
| 4 | Speed | 10 pieces/minute |
| 5 | Durability | Constructed with premium materials to withstand prolonged heavy-duty use. |
| 6 | Motor Power | 7.5KW |
| 7 | Automatic pause system | ✔yes □no |
| 8 | Dimensions (length * width * height) | 5500mm*1200mm*1300mm |
| 9 | Net weight | 2.5T |
|
Notes:
|
||
| Edge Folding Machine Advantages | ||
| 1 | High Automation | Reduces manual intervention and boosts production efficiency through automated operation. |
| 2 | Precision Crimping | Ensures uniform and secure edge crimping for consistent product quality. |
| 3 | Material Versatility | Processes various mesh materials/specifications (e.g., galvanized iron wire, PVC-coated iron wire). |
| 4 | User-Friendly Interface | Intuitive controls enable easy adjustments and quick operation. |
| 5 | Durability | Constructed with premium materials to withstand prolonged heavy-duty use. |
