Light Duty Automatic Wire Mesh Machine 1300mm Quick Changeover Reliable Drive
Light Duty Wire Mesh Weaving Loom 1300mm Quick Changeover Reliable Drive
1.Light Duty Wire Mesh Weaving Loom Introduction
Designed for fine wires and higher mesh counts, this 1300 mm light-duty wire mesh loom delivers stable, repeatable quality with fast recipe-based changeovers. An industrial PLC + HMI coordinates servo-driven warp let-off, beat-up, and take-up, while closed-loop tension maintains target density across the full cloth width. Operators call up saved recipes (mesh count, tension, speed, weave pattern) to switch specifications in minutes and reproduce best-known settings shift after shift.
The loom’s low-vibration drivetrain and reinforced frame improve surface flatness and clean selvedges, especially on fine wire. Take-up options include straight-roll for discrete batches and endless take-up for long production runs. Safety interlocks, monitored E-stops, and clear alarm logs support safe day-to-day operation and quicker troubleshooting.
2. .Light Duty Wire Mesh Weaving Loom Typical capability (project-dependent):
• Working width: 1300 mm (customizable)
• Weaves: Plain / Twill / Dutch
• Fine wire: down to ≈ 0.01–0.20 mm (material-dependent)
• Mesh range: ~30–500 mesh/inch (plain; others per spec)
• Speed: up to 120 rpm (wire/mesh dependent)
3.Products Parameter:
|
Feature Category |
Light-duty Loom (Model B) |
Heavy-duty Loom (Model D) |
|
|
Mesh Width |
1300mm 1600mm |
1300mm 1600mm |
|
|
Harness System |
Positive (Overhead) |
Negative (Bottom Cam) |
|
|
Web Removal Method / Doffing Method |
Continuous Web Removal or Direct Winding |
Continuous Web Removal or Direct Winding |
|
|
Wire Diameter Range |
Continuous Web Removal |
0.01 - 0.2 mm |
0.1 - 0.6 mm |
|
Direct Winding |
0.03 - 0.2 mm |
0.1 - 0.3 mm |
|
|
Mesh Count Range |
Plain Weave |
30 - 500 mesh/inch |
10 - 100 mesh/inch |
|
Twill Weave |
30 - 635 mesh/inch |
20 - 100 mesh/inch |
|
|
Dutch Weave |
100 - 2300 mesh/inch |
30 - 500 mesh/inch |
|
|
Beating-Up Frequency |
Max. 120 r/h |
Max. 100 r/h |
|
|
Motor Power |
2.2kw |
2.2kw |
|
|
Standard Configuration |
Crankshaft Type |
Bushing Type |
|
|
Side Frames |
Casting Wall Plates |
||
|
Tension System |
Tension Sensor |
||
|
Rapier Head Type |
Carbon Fiber |
||
|
Drive Type |
Fully Digital Control (CNC) |
||
4. Quick FAQ
Q1. What wire materials can your weaving machines handle?
Stainless steel (e.g., SS304/316), low-carbon and galvanized steel, aluminum, brass, copper, and some nickel-based alloys (process-dependent). Actual feasibility depends on wire diameter, tensile strength, surface finish, and spool quality. We validate specs via sample or trial run.
Q2. I’m new to wire mesh—how do I choose the right machine?
Start from your application and spec:
- Mesh count & weave (Plain / Twill / Dutch)
- Wire diameter range & material
- Working width (customizable; typical 1.3–1.6 m)
Throughput target & roll/take-up preference (straight-roll / endless)
As a rule of thumb: B-Type (Light-Duty) for fine wires & higher counts; D-Type (Heavy-Duty) for thicker wires & longer continuous runs. Share your target mesh and wire—our team will map to a base model + options.
Q3. Do you provide installation, training, and commissioning?
Yes. We offer on-site or remote commissioning, operator training, and process onboarding. A pre-shipment FAT is available; SAT can be arranged at your plant.

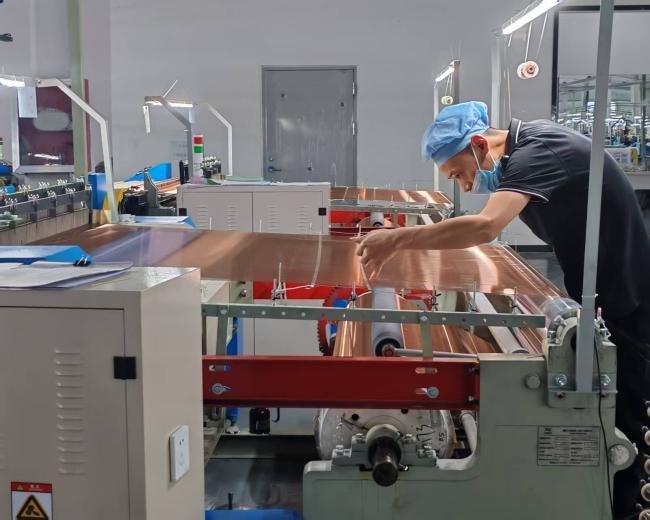

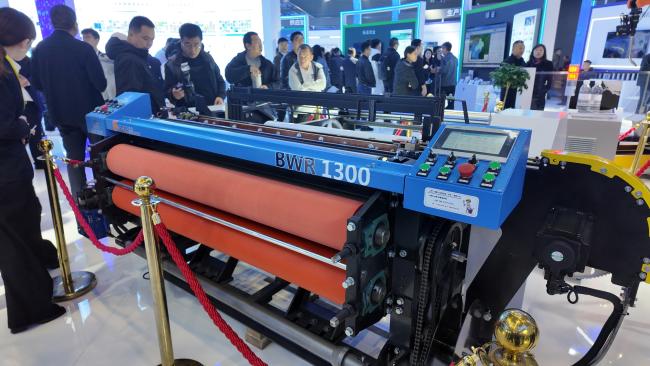

5. Detailed Images:
