Gabion Box Machine SLW58A, Full CNC 5-Axis Linkage Gabion Mesh Weaving Machine

  1.Overview of SLW58A Gabion Box Machine

Our SLW58A Full CNC Gabion Box Machine, also named the 5-Axis Linkage Gabion Mesh Weaving Machine, constitutes a fully automatic gabion mesh production line. It is specially developed for stable and high-efficiency production of high-quality hexagonal gabion mesh panels for assembling gabion boxes. Adopting advanced servo drive control, PLC and HMI operation system plus self-developed customizable software, this gabion box machine realizes precise weaving, high output and stable operation.

  2.Core Technical Advantages of the Gabion Box Machine

This gabion box machine is equipped with patented 5-axis linkage technology, which ensures high weaving precision, stable movement and long service life. It supports remote diagnosis and real-time machine status monitoring to minimize downtime. The XINJE PLC + HMI touch screen control system allows operators to adjust mesh size, twist length and twist types including triple twist, five twist, long and short twist conveniently. Its maximum netting width reaches 5.4 m, and it can process galvanized wire up to 4 mm diameter, with a production capacity up to 1000+ square meters per hour.

  3.Full Production Line Equipment & Standard Configuration

The complete production line of the gabion box machine consists of seven core units: five-roller unit, CNC spring making machine, CNC gabion mesh machine, CNC bending machine, CNC shrinking & rolling machine, CNC mesh cutting machine and CNC wire straightening machine. Standard accessories include auto lubrication system, take-up shaft and warping machine. The machine has a total weight of 19.5 T, overall dimension of 9.8 m × 1.32 m × 3.46 m and runs on 380 V power supply.

  4.Application Fields of Gabion Mesh Made by Gabion Box Machine

Gabion mesh woven by this gabion box machine is widely used in slope protection, river training, retaining structures, road engineering and ecological restoration projects. The finished gabion boxes own excellent flexibility and water permeability. As a great replacement for rigid concrete structures, they perform well in erosion control, embankment stabilization and landscape protection.

  5.One-Stop Service & Solution Support

We provide a full one-stop solution for the gabion box machine, covering the whole process from wire feeding, mesh weaving, mesh cutting to packing. Besides equipment supply, our team offers installation guidance. Remote maintenance function helps you solve machine problems rapidly and reduce maintenance costs. This gabion box machine is your reliable choice for mass production of gabion mesh for hydraulic and civil engineering.

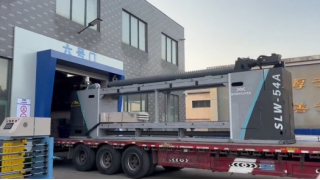

  6.Customer Application Scenarios
