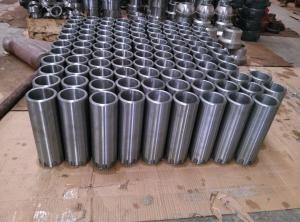

SL450 SL675 Drilling Swivel Washpipe Assembly For Drilling Top Drive
Topland supplies all types of oil drilling equipment like ZJ30, ZJ40, ZJ50, ZJ70, ZJ90 and rig parts: Mud pump, Hook, Rotary Table, Swivel, Crown block, Travelling Block, iron roughneck, etc. Our products have certificated by international institutions, API and ISO, GOST. the quality is guaranteed. We always stick to the principle of ensuring quality and servicing customers.
- Standard bail and double pin (male) alloy sub
- The wash pipe and packing are box structure, convenient to replacing on drill floor, no need to disassemble rotary hose and gooseneck
- Hole in gooseneck top provides passageway for well logging wire line
- Standard gooseneck connection, screw thread conforms to API STD 5B
- Conform to API Spec 8A and marked with API monogram
| Model | SL90 | SL135 | SL225 | SL450 | SL675 | |
|---|---|---|---|---|---|---|
| Max. static load KN | 900 | 1350 | 2250 | 4500 | 6750 | |
| Max. rotary speed r/min | 300 | 300 | 300 | 300 | 300 | |
| Max. working pressure MPA (psi) | 25 (3570) | 35 (5000) | 35 (5000) | 35 (5000) | 53 (7000) | |
| Clearance between bail and gooseneck mm (in) | 435 (17 1/8) | 495 (19 1/2) | 540 (21 1/4) | 549 (21 5/8) | 640 (25) | |
| Center pipe diameter mm(in) | 64 (2 1/2) | 64 (2 1/2) | 75 (3) | 75 (3) | 102 (4) | |
| Center pipe upper screw thread | Connect to center pipe API In | 4 1/2 REG LH | 4 1/2 REG LH | 6 5/8 REG LH | 7 5/8 REG LH | 8 5/8 REG LH |
| Center pipe lower Screw thread | Connect to Kelly API in | 6 5/8 REG LH | 6 5/8 REG LH | 6 5/8 REG LH | 6 5/8 REG LH | 6 5/8 REG LH |
| Gooseneck connection screw thread | 3″-8 teeth/inch | 3″-8 teeth/inch | 4″-8 teeth/inch | 4″-8 teeth/inch | 4″-8 teeth/inch | |
| Dimension (L x W x H) mm | 2505×758 ×840 | 2505×758 ×840 | 2880×1026 ×1065 | 3015×1096 ×1065 | 3649×1450 ×1162 | |
| Weight kg | 940 | 1345 | 2402 | 3310 | 6230 | |
| Note: For above models, spinner (makeup and breakout) is optional. | ||||||
- Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
- How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment; - What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
- Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service - How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
- What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
