Man Rider Winch-Model ZJQH-1.5×30B

INTRODUCTION

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.Juling Manrider air winch is a kind of pneumatic motor as the power, through the built-in planetary deceleration mechanism to drive the drum, to achieve lifting or traction device.

MAIN PARAMETERS

The ZJQH-1.5*30B manrider winch is a robust and efficient lifting device designed for safe personnel transportation. With a rated lifting force of 1.5 kN and a lifting speed range of 0–30 m/min, it ensures smooth and controlled operation. The winch is equipped with a 10 mm diameter steel rope, offering a wire capacity of 150 meters. Its compact design, measuring 850×810×910 mm, makes it suitable for various workspaces. Powered by a pneumatic motor with a rated power of 1.8 kW, it operates efficiently within a compressed air pressure range of 0.25–0.8 MPa and consumes a maximum of 5 m³/min of air. Safety is enhanced by its built-in entire disc cab and band hand brake system. Weighing 350 kg, this winch combines durability, reliability, and ease of use, making it ideal for demanding industrial applications.

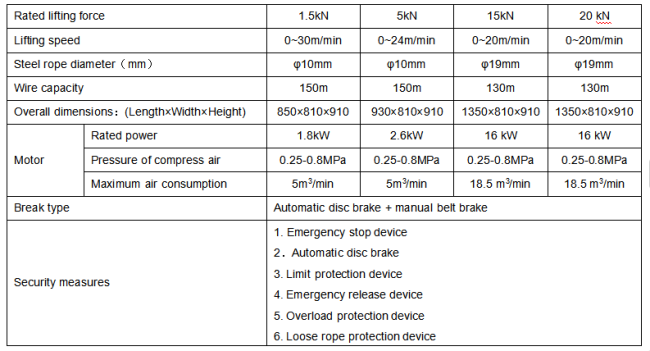

Rated lifting force                      1.5kN              5kN                   15kN                 20 kN

Lifting speed                          0~30m/min       0~24m/min        0~20m/min         0~20m/min

Steel rope diameter(mm)  φ10mm             φ10mm             φ19mm                φ19mm

Wire capacity                        150m                    150m                130m                130m

Rated power                        1.8kW                      2.6kW                 16 kW             16 kW

Maximum air consumption 5m3/min                5m3/min                18.5 m3/min           18.5 m3/min

Break type Automatic disc brake + manual belt brake
