IEC 60884 Electric Glow Wire Flammability Chamber Leakage Test Machine
IEC 60884 Electric Glow Wire Burning Testing Apparatus with AC220V
-The electronic glow wire flame test machine is a device used to test the flammability of materials. It is particularly useful in determining the fire resistance of electrical and electronic products.
-The electronic glow wire flame test machine is widely used in industries such as electronics, automotive, and aerospace to ensure compliance with safety standards and regulations. It helps manufacturers identify potential fire hazards and design products that are safe and reliable.

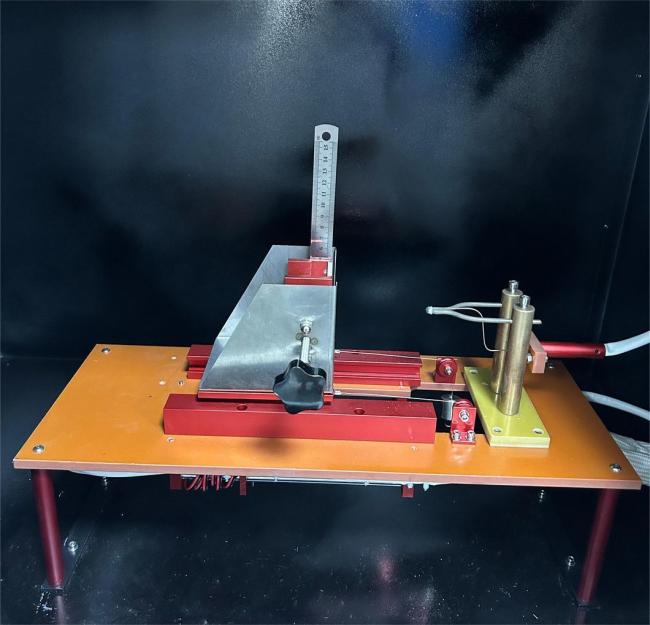

-The machine consists of a metal wire, known as the glow wire, which is heated to a specified temperature. The sample material is then brought into contact with the glow wire for a predetermined period of time. During this time, the behavior of the sample material is observed and recorded.
| Product name | Glow Wire Test Apparatus |
| Control mode | Keystroke Printout |
| Outer box dimensions | 110*65*125(cm) |
| Glow wire temperature | Adjust from room temperature to 1100°C |
| Glow wire moving speed | 10mm/s-25mm/s |
| Box volume | ≥0.5m³,With glass observation door |
| Fuel | Butane |
| Thermocouple | 1.0mm nickel-chromium armored (K type) imported thermocouple |
| Temperature tolerance error | 500~750ºC±5ºC;750~960ºC±10ºC |
| Glow wire U-shaped head | 4mm imported nickel/chromium (80/20) wire |
