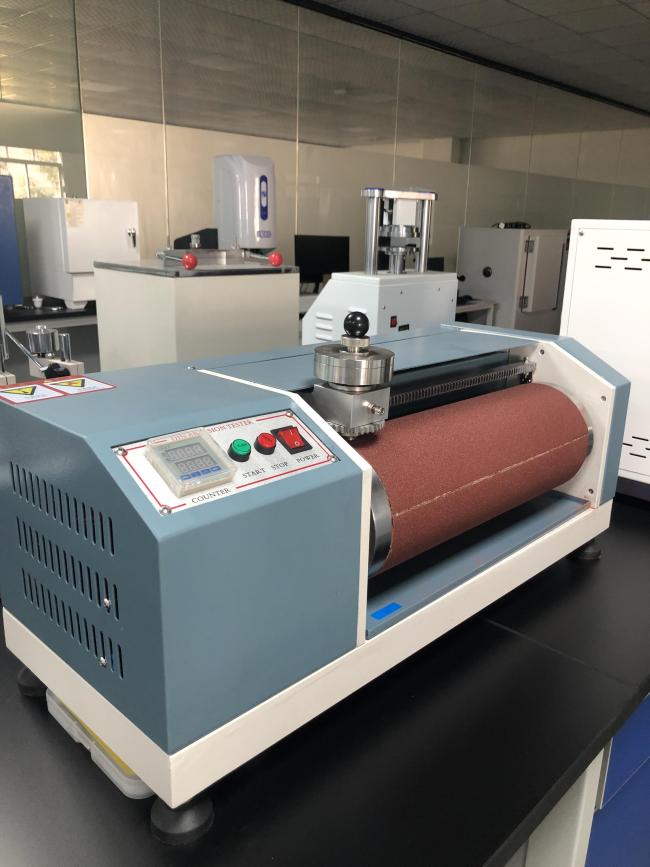

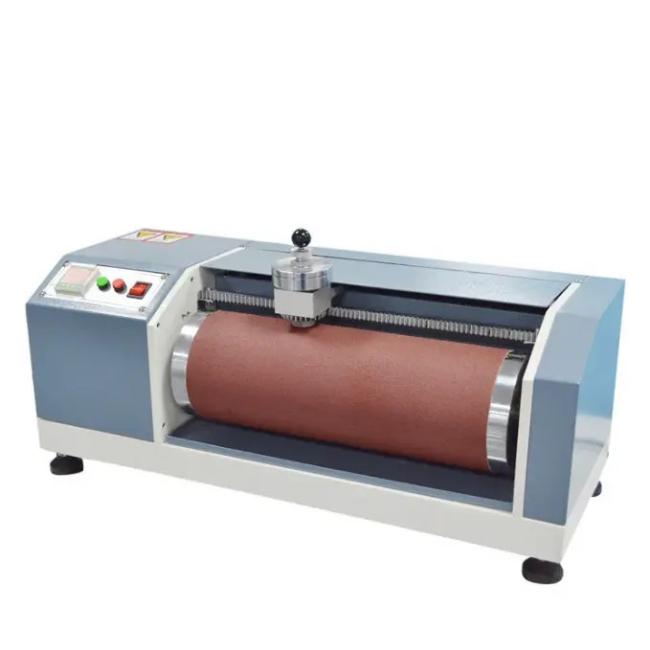

120V 40rpm DIN Abrasion Resistance Tester Machine
DIN Abrasion Resistance Tester abrasion test machine for lab use

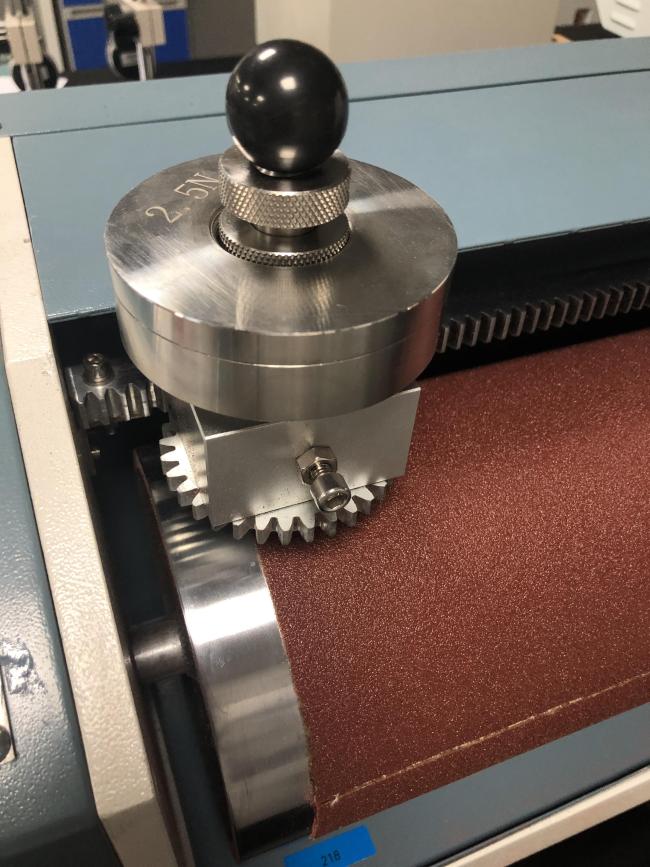

The DIN Abrasion Resistance tester works by rubbing a rotating wheel, typically made of specified abrasive materials like sandpaper or a diamond disc, against a test sample at a constant speed. The abrasion resistance is measured by comparing the condition of the test sample before and after the abrasion test. The number of cycles or rotations required for a specific level of wear indicates the material's durability under simulated wear conditions.
This test is commonly used in industries such as automotive, construction, aerospace, and fashion to assess the suitability of materials for applications where resistance is crucial. Results from the DIN abrasion resistance tester can help manufacturers optimize their product design, select appropriate materials, or ensure that coatings and finishes meet the desired performance standards.
| Roller diameter | φ150mm |
| Roller length | 460 mm |
| Roller speed | 40rpm |
| Wear stroke | 40mm(20 mm) |
| Wear rate | 0.32 m/S |
| Inclination | 3° |
| Test piece diameter | φ16 mm |
| Thickness | 6~15 mm |
| Test load | 2.5N,5N |
| Fixture lateral displacement | 4.2 mm/roller per turn |
| Volume | 95*66*31cm |
| Power supply | 220V 50HZ |
| Weight | About 50kg |
| Dimension | 95*66*31CM |
| Package | Wooden Package |
