DIN906 Carbon Steel Hexagon Socket Pipe Plug
Price:
Negontiation
MOQ:
10000
Delivery Time:
7-25Days
Brand:
YB
Product Description
DIN906 Carbon Steel Hexagon Socket Pipe Plug
DIN906 Carbon Steel Hexagon Socket Pipe Plug
Product Overview
Standard: DIN906
DIN 906 is a well-recognized German industrial standard for hexagon socket pipe plugs (also named oil plugs/threaded blanking plugs), which are core sealing and blanking fasteners widely applied in industrial fluid systems. Its design and performance are strictly standardized, featuring professional specifications for international trade and industrial applications.
DIN 906 is a well-recognized German industrial standard for hexagon socket pipe plugs (also named oil plugs/threaded blanking plugs), which are core sealing and blanking fasteners widely applied in industrial fluid systems. Its design and performance are strictly standardized, featuring professional specifications for international trade and industrial applications.
Core Features
- Standardized Structural Design: One-piece integral structure with recessed hexagon socket drive, compact dimensions perfect for confined installation spaces in hydraulic cylinders, gearboxes, and other tight applications.
- Versatile Thread Configurations: Comprehensive range of industry-standard pipe threads including metric fine threads (M series), British parallel pipe threads (G), British taper sealing pipe threads (R), and American national pipe taper threads (NPT).
- Reliable Sealing & Pressure Resistance: Precision-machined thread surface forms mechanical sealing fit, compatible with thread sealant or Teflon tape for enhanced leak-proof performance in oil, water, and hydraulic systems.
- Diversified Material & Corrosion Resistance: Available in carbon steel (45# steel, 8.8/12.9 property class), 304/316 stainless steel for corrosive environments, and brass for hydraulic/pneumatic systems with high anti-rust requirements.
- Precision Machining & Stable Performance: Manufactured using cold forging, precision turning, and thread rolling processes with heat treatment for optimal mechanical properties including tensile strength and hardness.
- Easy Installation & Operation: Hexagon socket drive design matches standard wrenches for quick installation and disassembly, with even torque transmission to prevent thread damage.
- Wide Industrial Adaptability: Designed for industrial fluid system sealing across hydraulic systems, pneumatic components, construction machinery, automotive engines, and various industrial equipment.
Application Scenarios
DIN 906 hexagon socket pipe plugs are standard German industrial threaded sealing fasteners renowned for reliable sealing performance, compact structural design, and easy installation. They are widely used across major industrial sectors for blanking, sealing, and plugging fluid pipeline ports.
Hydraulic and Pneumatic Systems
Core application for port sealing of hydraulic stations, hydraulic cylinders, hydraulic pumps, pneumatic valves, and air compressors, ensuring no medium leakage and stable pressure operation.
Construction and Engineering Machinery
Applied to excavators, loaders, bulldozers, cranes, and road rollers for plugging and sealing gearboxes, oil tanks, hydraulic pipelines, and lubrication systems, withstanding vibration, impact, and dust in harsh conditions.
Automotive Manufacturing Industry
Widely used in passenger cars, commercial vehicles, and special vehicles for port sealing of engine blocks, gearboxes, oil pans, fuel tanks, and brake hydraulic systems, suitable for mass assembly requirements.
Machine Tool and Precision Industrial Equipment
Used for CNC machine tools, lathes, milling machines, and grinding machines to seal hydraulic control, lubrication, and cooling system ports, ensuring precision and stable operation.
General Mechanical Manufacturing
Applied to water pumps, oil pumps, blowers, centrifuges, and valve bodies for plugging redundant ports and sealing medium transmission ports of water, oil, and industrial liquids.
Shipbuilding and Marine Engineering
316 stainless steel or special anti-corrosion versions used for ship engine rooms, marine hydraulic systems, and on-board pipeline systems, adapting to high humidity and seawater corrosion environments.
Metallurgical and Mining Machinery
Used in metallurgical smelting equipment, mining excavators, and ore dressing equipment for sealing lubrication and hydraulic system ports in high-temperature, dusty, and heavy-load conditions.
Chemical and Light Industry Equipment
Food-grade or corrosion-resistant versions (brass, 304/316 stainless steel) adopted for non-toxic, corrosive, or food-grade fluid pipeline ports in chemical production, food processing, and pharmaceutical equipment.
Agricultural Machinery
Applied to tractors, harvesters, and seeders for port sealing of hydraulic lifting systems, gearboxes, and fuel tanks, with good anti-rust and anti-seepage performance for outdoor field environments.
Technical Specifications
| d | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 |
|---|---|---|---|---|---|---|---|---|
| P (coarse thread) | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| P (fine thread) | / | / | / | / | / | / | / | / |
| d MAX | / | / | 1/8 | / | / | / | / | / |
| L Normal | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 10 |
| L Max | 8.45 | 8.45 | 10.45 | 10.45 | 10.45 | 10.45 | 10.45 | 10.45 |
| L Min | 7.55 | 7.55 | 9.55 | 9.55 | 9.55 | 9.55 | 9.55 | 9.55 |
| S Normal(D12) | 4 | 5 | 6 | 7 | 8 | 8 | 10 | 10 |
| S MAX | 4.15 | 5.15 | 6.15 | 7.19 | 8.19 | 8.19 | 10.19 | 10.19 |
| S MIN | 4.03 | 5.03 | 6.03 | 7.04 | 8.04 | 10.04 | 10.04 | 12.05 |
| t MIN | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
Packaging Options
Carton Packaging
Outer Cartonbox Packaging
Pallet Packaging

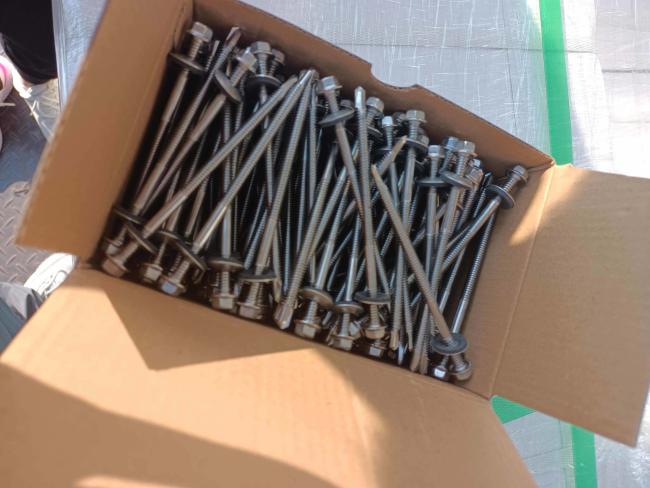

Carton Packaging: Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.
Outer Cartonbox Packaging: The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.
Pallet Packaging: The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
Outer Cartonbox Packaging: The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.
Pallet Packaging: The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
