ASA PVC Composite Roof Plastic Sheet Extrusion Machine Tile Production Line
ASA PVC Composite Roof Sheet Tile Production Machine Line
Basic Info.
Product Description
PVC Resin Roofing tiles extruding machine.
PVC bamboo tile production line.
720mm/880mm/960mm/1040mm/1050mm
1. PVC glazed roof tile extrusion production line advantages:
high production efficiency, the structure is reasonable and compact, easy operation and maintenance.
PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.
2. PVC glazed roof tile extrusion line configuration
| No | Name | Number |
| 1 | Screw loader for SJZ80/156 | 1set |
| 2 | SJZ80/156 Conical twin screw extruder | 1set |
| 3 | drying hopper for SJ50/30 | 1set |
| 4 | Vacuum loader for SJ50/30 | 1set |
| 5 | SJ50/30 single screw extruder | 1set |

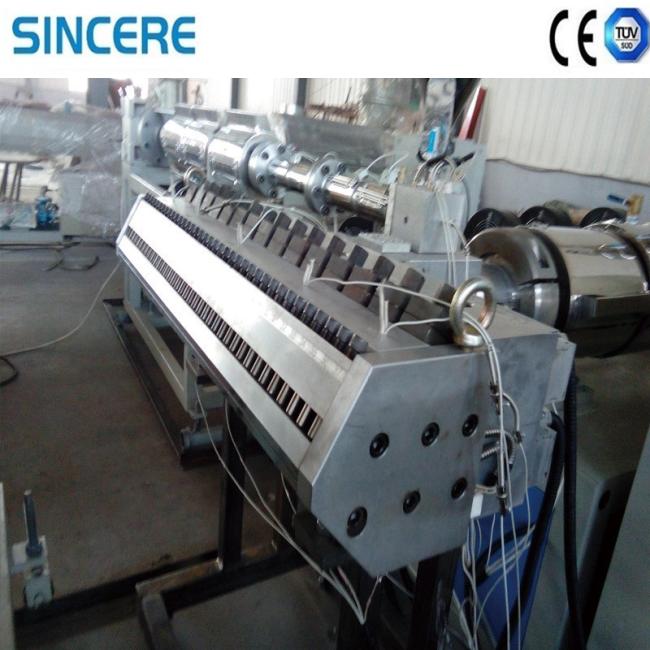

| 6 | Extrusion Mould and Distributor (T-die) | 1set |

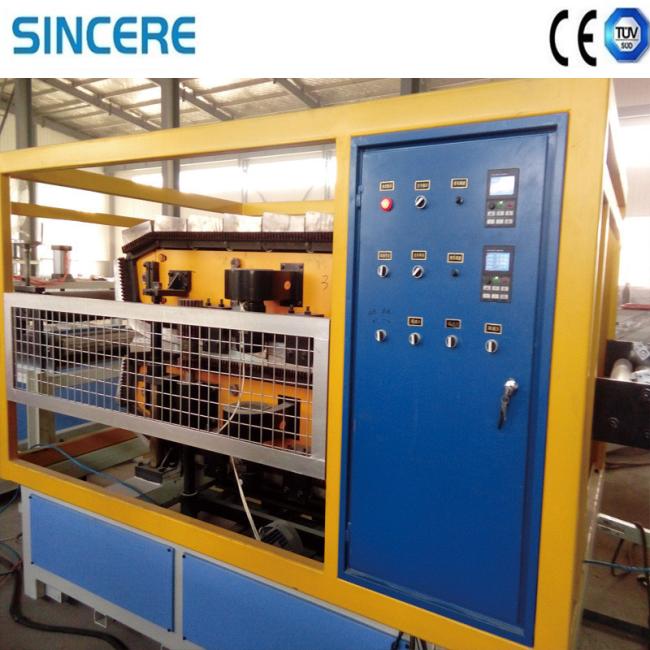

| 7 | DistributorForming machine | 1set |
| 8 | Embossing roller Trimming device | 1set |
| 9 | Embossing roller | 1set |
| 10 | Cutter | 1set |
| 11 | Stacker | 1set |
Auxiliary machine:
| No | Name | Number |
| 1 | Accessories machines for Top Ridge (Europe Style Tile), Side ridge, three way ridge, End Ridge, fittings. |
1.1)Flat sheet haul-off unit, 1 set 1.2)Oven,1set 1.3)Ridge tile forming unit,1set 1.4)ridge tile mold, 4sets |
| 2 | Mixer 200|500 or 300|600 | 1set |
| 3 | Screw loader | 1set |
| 4 | Crusher | 1set |
| 5 | Pulverizer (milling machine) | 1set |
3. Main Technical Specifications:
| Extruder | SJZS-80/156 | SJ50/30 |
| Productivity | 350kg/h | 50kg/h |
| Haul-off power | 20KN | |
| Haul-off speed | 0.3~5m/min | |
| Product specifications (Can be produced according to customer requirements) |

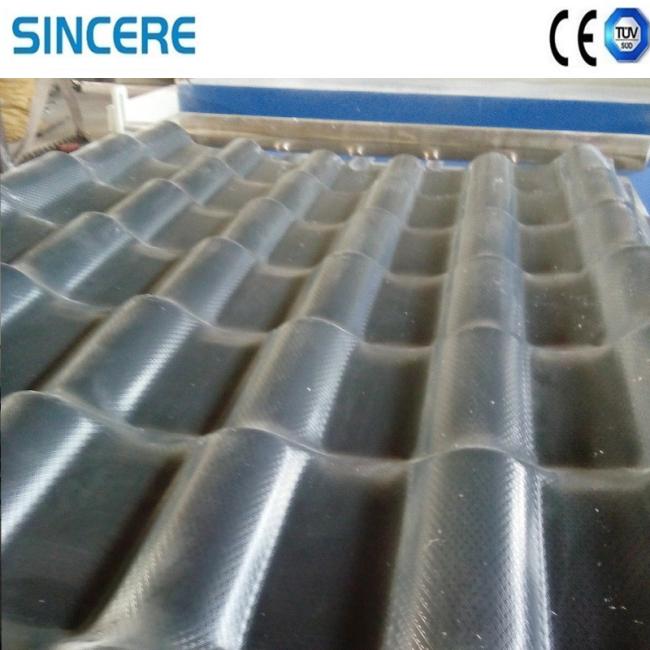

Width title:720/880/960/1040mm Pitch:160mm wave length:220mm wave height:30mm Thickness:1~3mm Materials:PVC,ASA or PMMA with different colors and some additives. |
|
Packing and Shipping:
Product Packaging:
The plastic sheet extrusion machine will be carefully packed in a wooden crate to ensure safe transportation. The crate will be sealed and clearly labeled with the product name and handling instructions.
Shipping:
The plastic sheet extrusion machine will be shipped by sea freight, and the shipping cost will be calculated based on the destination and weight of the machine. The estimated delivery time is 4-6 weeks from the date of shipment.
