15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display
Price:
Negotiable
MOQ:
1
Delivery Time:
7 working days
Brand:
AISON
Product Description

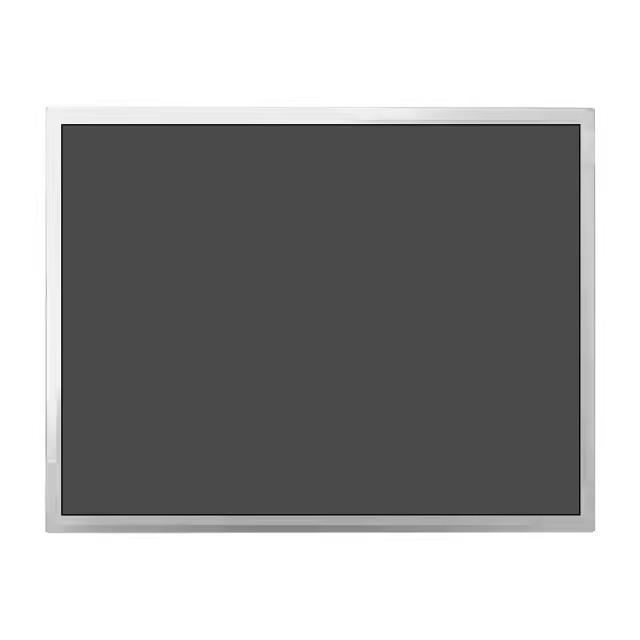

15 inch 1024x768 Innolux G150XNE-L01 TFT LCD Display LVDS Interface Industrial Automotive Display
General Description
G150XNE-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , PSWG. Based on its features, it is recommend that this model be applied to Industrial, Automotive Display etc.
General Data
Product Details
TFT Applications:
The 15 inch Innolux TFT LCD displays are suitable for Industrial, Automotive Display etc.
| Innolux 2025 Industrial control lcd modules | |||||||
| Size | Part # | Resolution | Screen ratio | Brightness | Operating temp | B/L Lifetime | Other Specs |
| 7 | G070ACE-L01 | 800*480 | 15:9 | 500 | -30~85 | 50K | 800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm |
| G070ACE-LH1 | 15:9 | 1000 | -30~85 | 50K | 800:1, LVDS,58% | ||
| 10.1 | G101ICE-LH1 | 1280*800 | 16:10 | 500 | -30~80 | 50K | 800:1, LVDS,72%,Vin 5V,Reverse scan |
| 10.4 | G104ACE-LH1 | 800*600 | 4:3 | 400 | -30~85 | 50K | 1000:1, LVDS,72%,Vin 5V,Reverse scan |
| G104XCE-L01 | 1024*768 | 4:3 | 500 | -30~85 | 50K | 1000:1, LVDS,72%,Reverse scan | |
| 12.1 | G121ACE-LH2 | 800*600 | 4:3 | 600 | -30~85 | 50K | 1000:1, LVDS,72%,Reverse scan |
| G121ACE-PH1 | 4:3 | -30~85 | 1000:1, LVDS(PCBI),72%,Reverse scan,Opencell | ||||
| G121XCE-L01 | 1024*768 | 4:3 | 600 | -30~85 | 50K | 1000:1, LVDS,72%,Reverse scan | |
| G121XCE-P01 | 4:3 | -30~85 | 50K | 1000:1, LVDS(PCBI),72%,Reverse scan,Opencell | |||
| G121XCE-LH1 | 4:3 | 1300 | -30~80 | 50K | 1000:1, LVDS,72%,Reverse scan | ||
| G121ICE-L01 | 1280*800 | 16:10 | 600 | -30~80 | 50K | 1000:1, LVDS,72% | |
| G121ICE-L02 | 16:10 | 400 | -20~70 | 30K | 1000:1, LVDS,72% | ||
| G121ICE-P01 | 16:10 | -30~80 | 1000:1, LVDS(PCBI),72%,Opencell | ||||
| 15 | G150XNE-L01 | 1024*768 | 4:3 | 500 | -30~80 | 50K | 2500:1, LVDS,72%,Reverse scan |
| G150XNE-L02 | 4:3 | 350 | -30~70 | 50K | 2500:1, LVDS,72%,Reverse scan | ||
| G150XNE-L03 | 4:3 | 300 | -20~70 | 50K | 2500:1, LVDS,72%,Reverse scan | ||
| G150XJE-P01 | 4:3 | -30~80 | 2500:1, LVDS(PCBI),72%,Reverse scan,Opencell | ||||
| 15.6 | G156HCE-E01 | 1920*1080 | 16:9 | 450 | 0~60 | 50K | 1000:1, eDP,72% |
| G156HCE-L01 | 16:9 | 450 | -30~85 | 50K | 800:1, LVDS,72%,Reverse scan | ||
| N156HCE-P01 | 16:9 | -30~85 | 800:1, LVDS(PCBI),72%,Reverse scan | ||||
| G156HCE-LN1 | 16:9 | 350 | -20~70 | 50K | 800:1, LVDS,72% | ||
| 18.5 | G185BCE-L01 | 1366*768 | 16:9 | 400 | 0~60 | 50K | 1000:1, LVDS,72% |
| 23.8 | G238HCJ-L01 | 1920*1080 | 16:9 | 350 | 0~50 | 30K | 1000:1, LVDS,w/o CNV,72% |
