Description

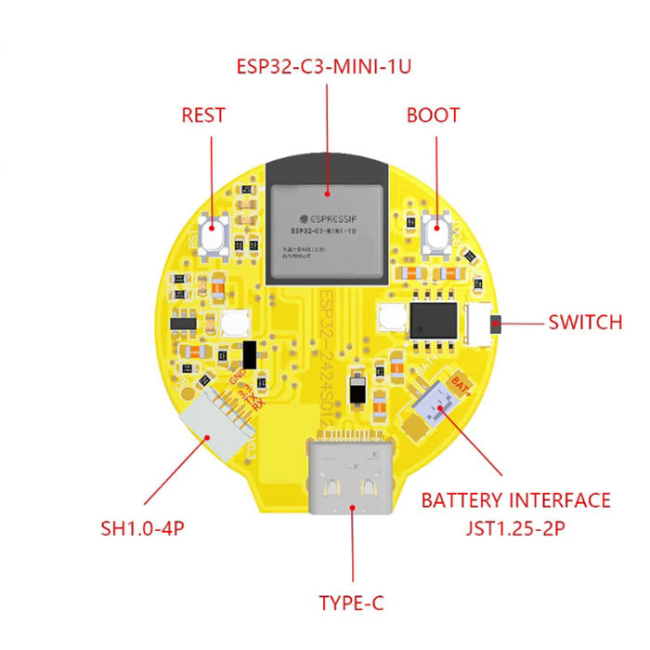

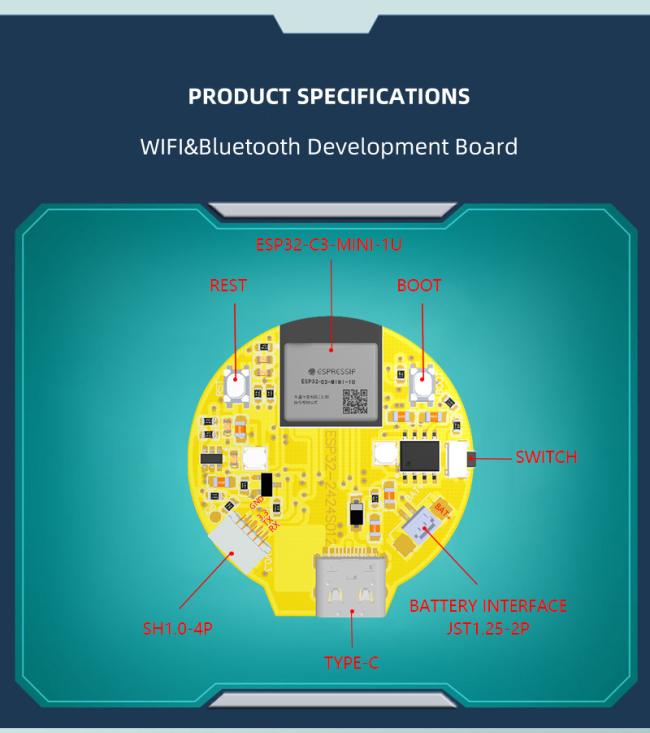

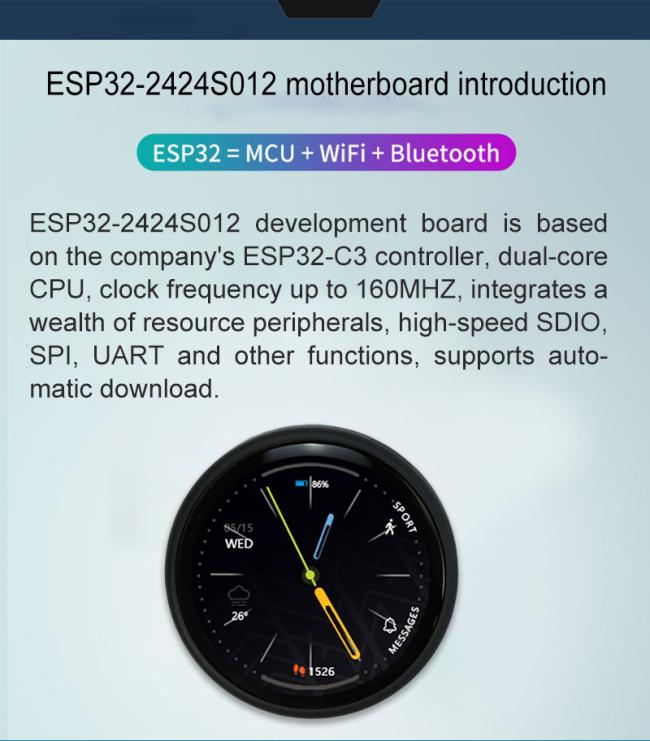

This LCD module uses ESP32-C3-MINI-1U module as the main control,the main control is a Single Core MCU,integrated WI-FI and BLE functions,the main frequency can reach 160MHz,400KB SRAM,384KB ROM,Flash size is 4MB,The display resolution is 240*240 IPS display,without touch or capacitive touch.The module includes LCD display screen,backlight controlcircuit,IO port interface,this module supports development in IDE,ESP.

Feature:

1.28-inch color screen,support 16 BIT color display,display rich colors 240X240 resolution The sample program has been programmed in the factory and can be plugged in Equipped with a lithium battery charging interface,support both charging and discharging,with overcharging and overcurren tprotection.

Specification:

Display color: 16 bit color

Size: 1.28 inch Model: ( no touch, no shell )ESP32-2424S012N-I, ( capacitive touch, no shell )ESP32-2424S012C-I, (capacitive touch + black shell )ESP32-2424S012C-I-Y(B), (capacitive touch + white shell )ESP32-2424S012C-I-Y(W) T

ype: TFT Driver

chip: GC9A01

Resolution: 240*240(Pixel)

Module size: 38.5*37.0(mm)

View: IPS Operating

temperature: -20℃~70℃

Operating Voltage: 5V

Power consumption: About100mA

Package Included:1 x 1.28 inch ESP32 C3 Display

The advantages of the ESP32 1.28Inch LCD display module include:

1,Compatible with popular development platforms: The ESP32 1.28inch Capacitive Touch Display Module is compatible with popular development platforms such as Arduino and MicroPython. This makes it easy for developers to get started with the module and create custom applications.

2,Easy to program: The module is easy to program using the Arduino IDE or MicroPython. This makes it easy for developers to get started with the module and create custom applications.
