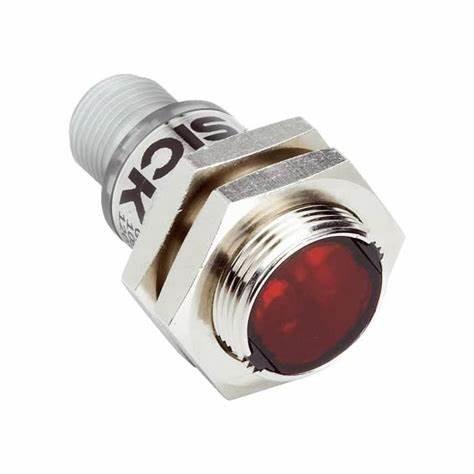

SICK GRL18SG-P233Z | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS

SICK GRL18SG-P233Z | GR18  CYLINDRICAL PHOTOELECTRIC SENSORS

 Product Overview

• Manufacturer : SICK Sensors

• Part Number : GRL18SG-P233Z

• Functional principle : Photoelectric retro-reflective sensor

• Functional principle detail : Dual lens

• Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm

• Housing design (light emission) : Cylindrical

• Thread diameter (housing) : M18 x 1

• Optical axis : Axiall, fully flush

• Sensing range max. : 0.03 m ... 7.2 m

• Sensing range : 0.06 m ... 6 m

• Type of light : Visible red light

• Light source : PinPoint LED

• Light spot size (distance) : Ø 175 mm (7 m)

• Wave length : 650 nm

• Adjustment : Potentiometer, 270°

• Supply voltage : UB 10 V DC ... 30 V DC

• Ripple : < 5 Vpp

• Current consumption : 30 mA

• Switching output : PNP

• Switching mode : Light Switching

• Signal voltage NPN HIGH/LOW : VS - (≤ 3 V) / approx. 0 V

• Output current Imax. : ≤ 100 mA

• Response time : < 500 µs

• Switching frequency : 1000 Hz

• Connection type : Connector M12, 3-pin

• Circuit protection : A, B, D

• Protection class : III

• Housing material : Metal, Nickel-plated brass and ABS

• Optics material : Plastic, PMMA

• Enclosure rating : IP67
