High Precision Chemical Fiber Spinning Gear Metering Pump 30-100cc/R for Polyester Melt Spinning
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 weeks
Brand:
ZRQH
Product Description

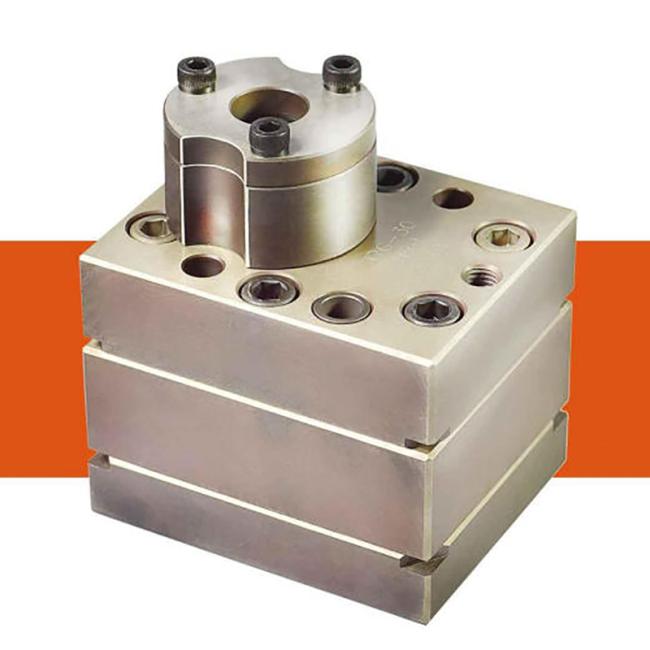

High Precision Chemical Fiber Spinning Gear Metering Pump 30-100cc/R for Polyester Melt Spinning
The chemical fiber spinning gear pump is a high-precision gear metering pump designed for accurate and stable quantitative delivery of high-viscosity fluids in chemical fiber spinning and other industrial processes. As one of the core precision components in spinning production lines, it ensures consistent fluid delivery for optimal product quality.

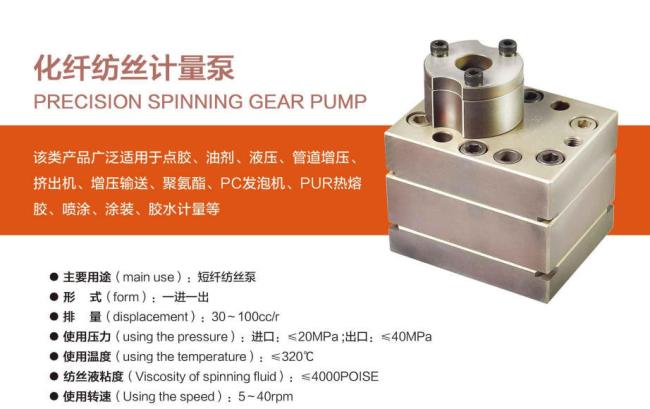

Technical Specifications
| Parameter | Specification |
|---|---|
| Structure Form | 1 inlet & 1 outlet |
| Displacement Range | 30~100cc/r (displacement per revolution) |
| Working Pressure | Inlet ≤20MPa; Outlet ≤40MPa |
| Working Temperature | ≤320ºC |
| Applicable Fluid Viscosity | ≤4000POISE |
| Applicable Speed Range | 5~40rpm |
Main Applications
- Core Scenario: Short fiber spinning process (short fiber spinning pump)
- Extended Scenarios: Dispensing, oil delivery, hydraulic systems, pipeline pressurization, extruder supporting, booster conveying, polyurethane foaming, PC foaming machines, PUR hot melt adhesive, spraying, coating, and glue quantitative metering
Product Advantages
High Metering Accuracy
High-precision gear processing ensures stable delivery flow, maintaining spinning process consistency and improving product quality.
Strong Working Condition Adaptability
Withstands 320ºC high temperature and 40MPa high pressure, adapts to 4000POISE high viscosity spinning solutions for extreme chemical fiber production conditions.
Multi-Scenario Universal
Versatile applications beyond spinning, covering polyurethane, hot melt adhesive, coating, and various industrial fluid quantitative delivery scenarios.
Complete Specifications
Full displacement coverage from 30~100cc/r, adaptable to spinning production lines with different capacity requirements.
Structural Interface Features
Precision gear meshing structure ensures high accuracy and stability of fluid delivery with minimal flow error, meeting strict spinning process requirements for yarn uniformity. Integrated modular design provides compact structure for easy installation and maintenance. Constructed with high temperature and pressure resistant materials suitable for demanding chemical fiber spinning conditions.

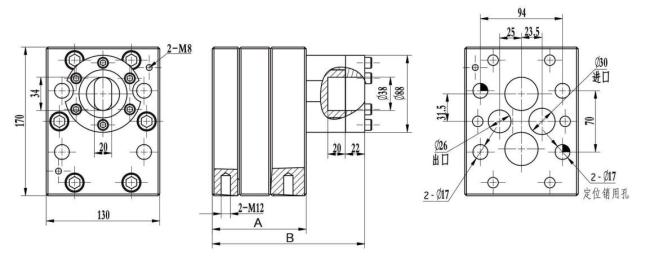

Installation Dimension Reference
Top mounting surface: 130×170mm, with 2 M8 mounting holes
Main body mounting surface: 94×94mm, including Φ30 inlet/outlet, 2 Φ17 positioning pin holes
Different models correspond to different main body heights (A/B dimensions) to meet various displacement requirements
Main body mounting surface: 94×94mm, including Φ30 inlet/outlet, 2 Φ17 positioning pin holes
Different models correspond to different main body heights (A/B dimensions) to meet various displacement requirements
| Model | Output per Port per Revolution (cc/rev) | Dimension A (mm) | Dimension B (mm) | Mounting Screw Specification |
|---|---|---|---|---|
| JRG-30 | 30 | 91.8 | 166.8 | M16 |
| JRG-40 | 40 | 98.8 | 173.8 | M16 |
| JRG-50 | 50 | 105.8 | 180.7 | M16 |
| JRG-70 | 70 | 119.8 | 194.8 | M16 |
| JRG-100 | 100 | 142 | 217 | M16 |
Why Choose Our JR Series Metering Pump?
- Customization Support: Accept custom displacement, interface, and material requirements for special working conditions
- Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs
- Professional Service: Technical consultation, installation guidance, and after-sales support for smooth equipment operation
- Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Packaging & Shipping
- Standard export wooden case packaging to protect the pump from damage during transportation
- Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
- Complete product documents (operation manual, test report, quality certificate) provided with each shipment
Frequently Asked Questions
Q1: What can you buy from us?
A1: We provide one-stop flow meter services, including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and other instruments.
Q2: What is your terms of packing?
A2: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q3: How about your delivery time?
A3: Standard type: 6-7 working days after order confirmation. Non-standard type: 8-10 working days after order confirmation.
Q4: What's your MOQ?
A4: We have no MOQ requirement; 1 piece for test purposes is acceptable.
Q5: How do you ensure good product quality?
A5: We maintain a complete quality control system with full inspection by IQC and OQC departments before shipment.
Q6: How long is your quotation valid?
A6: Our quotation is valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we accept OEM branding without extra charge.
Q8: How long is your product warranty?
A8: 7 days replacement and 12 months repair free of charge for quality problems.
Q9: Can you produce according to the samples?
A9: Yes, we can produce according to your samples or technical drawings.
