Stripper Reboiler Tube Bundle TYPE AEW S32205 U Shaped Tube For Thermal Exchange System
Stripper Reboiler TYPE AEW S32205 U Shaped Tube for Thermal Exchange System
Yuhong Holdings Group Co., Ltd. specializes in the manufacturing of pressure vessels. With an annual production capacity exceeding 6,000 tons, we offer a wide range of specifications and materials for products including thin film evaporators, heat exchangers, reaction vessels, towers, storage tanks, and filters. Our products serve multiple sectors, including biopharmaceuticals and petroleum refining.
Stripper Reboiler TYPE AEW S32205 U Shaped Tube for Thermal Exchange System
The Stripper Reboiler TYPE AEW, constructed with S32205 duplex stainless steel, is designed for efficient thermal exchange in various industrial applications. This U-shaped tube configuration ensures optimal heat transfer and is ideal for use in demanding environments.
Key Features:
- Material: S32205 Duplex Stainless Steel
- Design: U Shaped Tube
- Applications: Thermal Exchange Systems
Component Specifications
| Component Name | Material |
|---|---|
| SHELL | SA516 GR.485 |
| HEAD | SA516 GR.485 |
| BODY FLANGE | SA105 |
| BOZZLE NECK | SA106 GR.B |
| NOZZLE FLANGE | SA105 |

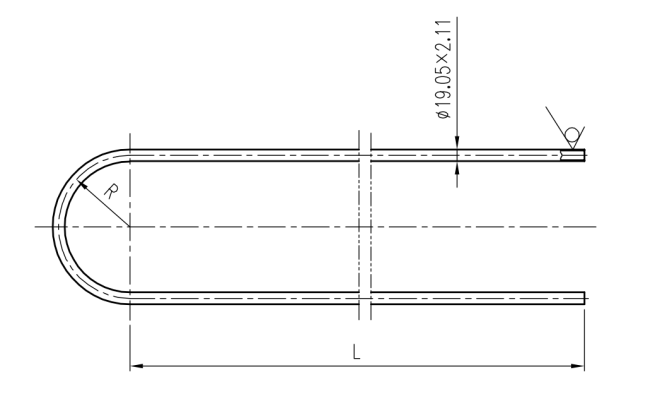

U SHAPED TUBE DATA SHEET
| SERIAL | R/MM | S.T. | LENGTH | NO. |
| 1 | 35 | 6096 | 12302 | 24 |
| 2 | 60.4 | 6096 | 12382 | 24 |
| 3 | 85.8 | 6096 | 12461 | 24 |
| 4 | 111.2 | 6096 | 12541 | 20 |
| ... | ... | ... | ... | ... |
Applications of Stripper Reboiler
The Stripper Reboiler is widely utilized in the following industries:
- Biopharmaceuticals: For processes requiring strict hygiene and corrosion resistance.
- Petroleum Refining: In the distillation and separation processes.
- Chemical Processing: For effective heat recovery and thermal management.
Conclusion
At Yuhong Holdings Group Co., Ltd., we are committed to providing high-quality pressure vessels tailored to meet the specific needs of our clients. Our expertise in manufacturing and dedication to excellence ensure that our products, such as the Stripper Reboiler TYPE AEW, deliver exceptional performance and reliability across various industries. For more information or to request a quote, please contact us.
