ASME SA36 Carbon Steel Heat Exchanger Baffle 314.3MM Diamter API 650

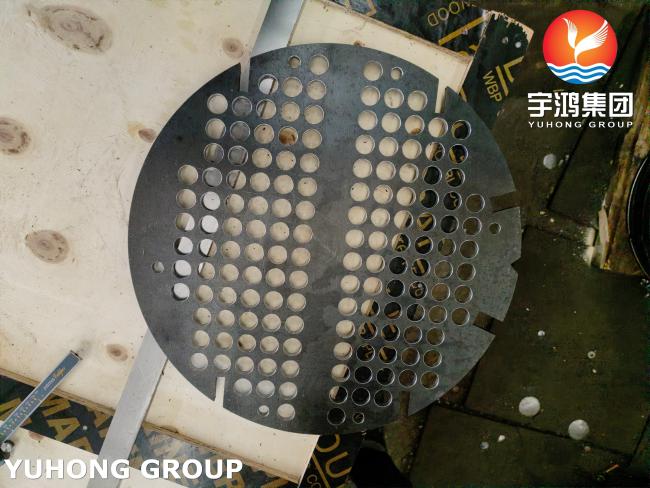

ASME SA36 Carbon Steel Baffle Plate for Heat Exchanger Application
Yuhong Holdings Group Co., Ltd. is a leading manufacturer of pressure vessels, committed to delivering high-quality products to meet the diverse needs of our customers. With an annual production capacity exceeding 6,000 tons, we provide a wide range of specifications and materials for various products, including film evaporators, heat exchangers, reaction vessels, towers, storage tanks, and filters. Additionally, we offer spare parts for all equipment to ensure comprehensive service for our clients. Our products serve multiple industries, including biopharmaceuticals and petrochemicals.
The ASME SA36 carbon steel baffle plate is designed specifically for use in heat exchangers, playing a crucial role in enhancing thermal efficiency. Below, we detail the chemical composition, mechanical properties, advantages of using ASME SA36 material, and relevant production standards.
Chemical Composition of ASME SA36
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.26 max |
| Manganese (Mn) | 0.60 - 0.90 |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.05 max |
| Silicon (Si) | 0.40 max |
Mechanical Properties of ASME SA36
| Property | Value |
|---|---|
| Yield Strength (min) | 250 MPa |
| Tensile Strength (min) | 400 - 550 MPa |
| Elongation (min) | 20% |
| Hardness | 120 HB max |
Advantages of ASME SA36 Material as Baffle Plates
- Cost-Effectiveness: ASME SA36 is a low-cost material, making it an economical choice for various applications.
- Weldability: This material is highly weldable, allowing for easy fabrication and installation.
- Versatility: Suitable for various operating conditions, it offers reliable performance across different heat exchanger designs.
Baffle Plate Production Standards
The production of ASME SA36 baffle plates adheres to several industry standards, ensuring quality and reliability. Key standards include:
- ASME Section VIII: Governs the design, fabrication, and inspection of pressure vessels.
- ASTM A36: Specifies the material requirements for carbon structural steel plates.
- API 650: Pertains to the design and construction of cylindrical tanks for oil storage.
- ASME Section II: Covers materials used in the construction of pressure vessels and, by extension, baffle plates.
- TEMA (Tubular Exchanger Manufacturers Association): TEMA standards provide specific guidance on the mechanical design of heat exchangers.
- EN (European Standards): EN 13445 for unfired pressure vessels can provide guidance on components within the European Union.
- ISO (International Organization for Standardization): ISO provides various standards related to quality and manufacturing processes.
Conclusion
At Yuhong Holdings Group Co., Ltd., we are dedicated to providing high-quality pressure vessel solutions tailored to your needs. Our ASME SA36 carbon steel baffle plates are engineered for optimal performance in heat exchangers, ensuring efficiency and reliability across various applications. Contact us today to learn more about our products and how we can support your projects.
