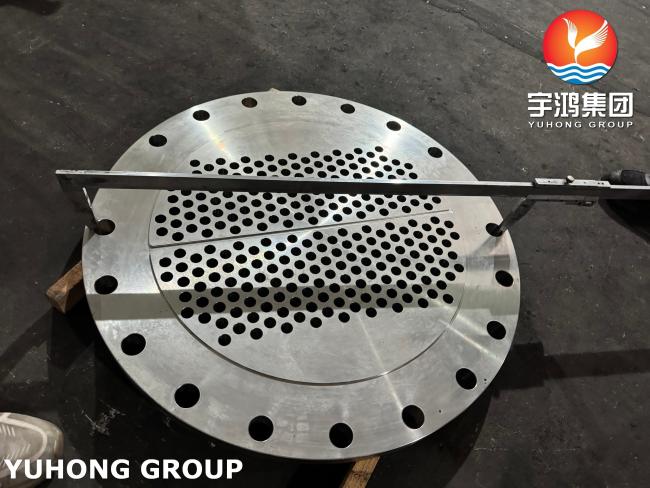

Customization Stainless Steel Condenser Tube Sheet ASME SA182 F304/304L F316/316L
A stainless steel tubesheet is a crucial component in heat exchangers, condensers, and other shell-and-tube equipment. It serves as a structural element that holds the tubes in place, separates the shell-side and tube-side fluids, and ensures efficient heat transfer. Stainless steel is a popular material for tubesheets due to its excellent corrosion resistance, mechanical strength, and durability in demanding environments.
Common Stainless Steel Grades Used for Tubesheets
Austenitic Stainless Steels:
304/304L (UNS S30400/S30403):
Applications: General-purpose heat exchangers, food processing, and chemical industries.
Properties: Good corrosion resistance, excellent formability, and weldability.
Composition: Chromium (18-20%), Nickel (8-10.5%), Carbon (0.08% max for 304, 0.03% max for 304L).
316/316L (UNS S31600/S31603):
Composition: Chromium (16-18%), Nickel (10-14%), Molybdenum (2-3%), Carbon (0.08% max for 316, 0.03% max for 316L).
Properties: Superior corrosion resistance, especially against chlorides and acidic environments, due to molybdenum content.
Applications: Marine environments, chemical processing, and pharmaceutical industries.
Ferritic Stainless Steels:
409 (UNS S40900):
Composition: Chromium (10.5-11.75%), Carbon (0.08% max).
Properties: Moderate corrosion resistance, good thermal conductivity, and lower cost.
Applications: Automotive exhaust systems and low-pressure heat exchangers.
430 (UNS S43000):
Composition: Chromium (16-18%), Carbon (0.12% max).
Properties: Good corrosion resistance in mild environments, magnetic, and cost-effective.
Applications: Appliances, automotive, and low-corrosion environments.
Key Considerations for Stainless Steel Tubesheets
Corrosion Resistance
Mechanical Strength
Thermal Conductivity
Fabrication and Weldability
Compatibility with Tubes:
Applications of Stainless Steel Tubesheets
Chemical Processing: Heat exchangers handling corrosive chemicals.
Oil and Gas: Offshore platforms, refineries, and sour gas environments.
Power Generation: Condensers and heat recovery systems.
Food and Beverage: Hygienic heat exchangers for processing.
Pharmaceutical: Sterile and corrosion-resistant equipment.
|
Property
|
Stainless Steel
|
Carbon Steel
|
Copper Alloys
|
|---|---|---|---|
|
Corrosion Resistance
|
Excellent
|
Poor
|
Good to Excellent
|
|
Thermal Conductivity
|
Moderate
|
Low
|
High
|
|
Mechanical Strength
|
High
|
Moderate
|
Moderate
|
|
Cost
|
Moderate to High
|
Low
|
High
|
|
Applications
|
Corrosive, high-stress environments
|
Non-corrosive, low-cost applications
|
Marine, thermal applications
|
