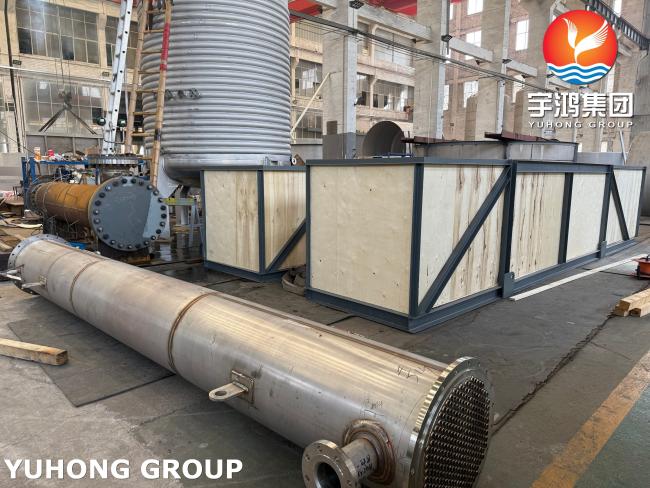

PED 2014/68/EU & ASME U Stamp Certified BEM Exchanger, ASME SB338 GR.2 for Chemical Cooling
PED 2014/68/EU & ASME U Stamp Certified BEM Exchanger, ASME SB338 GR.2 for Chemical Cooling
YUHONG is a globally recognized leader in the manufacturing and supply of industrial equipment, specializing in heat exchangers, fired heaters, air coolers, and their critical components. With over decades of expertise, we provide high-quality products that meet international standards. Among our flagship offerings is the ASTM SB338 Grade 2 Titanium Seamless Tube BEM Type Class R for Heat Exchanger, designed to deliver outstanding performance and durability in the most demanding environments. This product leverages the exceptional properties of Grade 2 titanium, making it the ideal material for heat exchangers across a wide range of industries.
1. Overview of BEM Exchanger, ASME SB338 GR.2
ASTM SB338 Grade 2 Titanium is a commercially pure titanium alloy widely used in heat exchanger applications. It is known for its excellent corrosion resistance, low density, and high strength-to-weight ratio. These properties make it an excellent choice for high-performance heat exchangers, particularly in environments where chemical resistance and thermal efficiency are critical.
Chemical Composition of BEM Exchanger, ASME SB338 GR.2
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Iron (Fe) | ≤ 0.30 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.03 |
| Hydrogen (H) | ≤ 0.015 |
| Oxygen (O) | ≤ 0.25 |
The low impurity levels in Grade 2 titanium contribute to its excellent corrosion resistance and mechanical properties, making it suitable for harsh and aggressive environments.
Mechanical Properties of BEM Exchanger, ASME SB338 GR.2
| Property | Value |
|---|---|
| Tensile Strength | ≥ 345 MPa (50,000 psi) |
| Yield Strength | ≥ 275 MPa (40,000 psi) |
| Elongation | ≥ 20% |
| Density | 4.51 g/cm³ |
These properties ensure the tubes can withstand high pressures and temperatures, making them ideal for use in heat exchangers where reliability and durability are critical.
2. BEM Type Shell and Tube Heat Exchanger
The BEM Type Heat Exchanger refers to a specific configuration as defined by the TEMA (Tubular Exchanger Manufacturers Association) standards. It is one of the most commonly used designs for fixed tube sheet heat exchangers.
Key Features of BEM Exchanger, ASME SB338 GR.2
- B: A bonnet (integral cover) on the stationary head for easy maintenance and inspection.
- E: One pass shell.
- M: Fixed tubesheet like "B" stationary head.
3. BEM Exchanger, ASME SB338 GR.2 COMPONENTS
- Stationary Head-Channel
- Floating Head Cover-External
- Stationary Head-Bonnet
- Floating Tubesheet Skirt
- Stationary Head Flange-Channel or Bonnet
- Packing Box
- Channel Cover
- Packing
- Stationary Head Nozzle
- Packing Gland
- Stationary Tubesheet
- Lantern Ring
- Tubes
- Tie rods and Spacers
- Shell
- Transverse Baffles or Support Plates
- Shell Cover
- Impingement Plate
- Shell Flange-Stationary Head End
- Longitudinal Baffle
- Shell Flange-Rear Head End
- Pass Partition
- Shell Nozzle
- Vent Connection
- Shell Cover Flange
- Drain Connection
- Expansion Joint
- Instrument Connection
- Floating Tubesheet
- Support Saddle
- Floating Head Cover
- Lifting Lug
- Floating Head Cover Flange
- Support Bracket
- Floating Head Backing Device
- Weir
- Split Shear Ring
- Liquid Level Connection
- Slip-on Backing Flange
- Floating Head Support
4. Applications of BEM Exchanger, ASME SB338 GR.2
The ASTM SB338 Grade 2 Titanium Seamless Tube is widely used in BEM Type Heat Exchangers, offering exceptional performance in a variety of industries due to its corrosion resistance, lightweight properties, and ability to withstand extreme conditions.
Key Application Areas
-
Chemical Processing
-
Petrochemical Industry
-
Power Generation
-
Desalination Plants
-
Oil and Gas Industry
-
Marine Industry
-
Aerospace and Defense
